1-3741 - Toro WorkHorse 700 Lawn Tractor (1969)

WorkHorse 700 Lawn Tractor

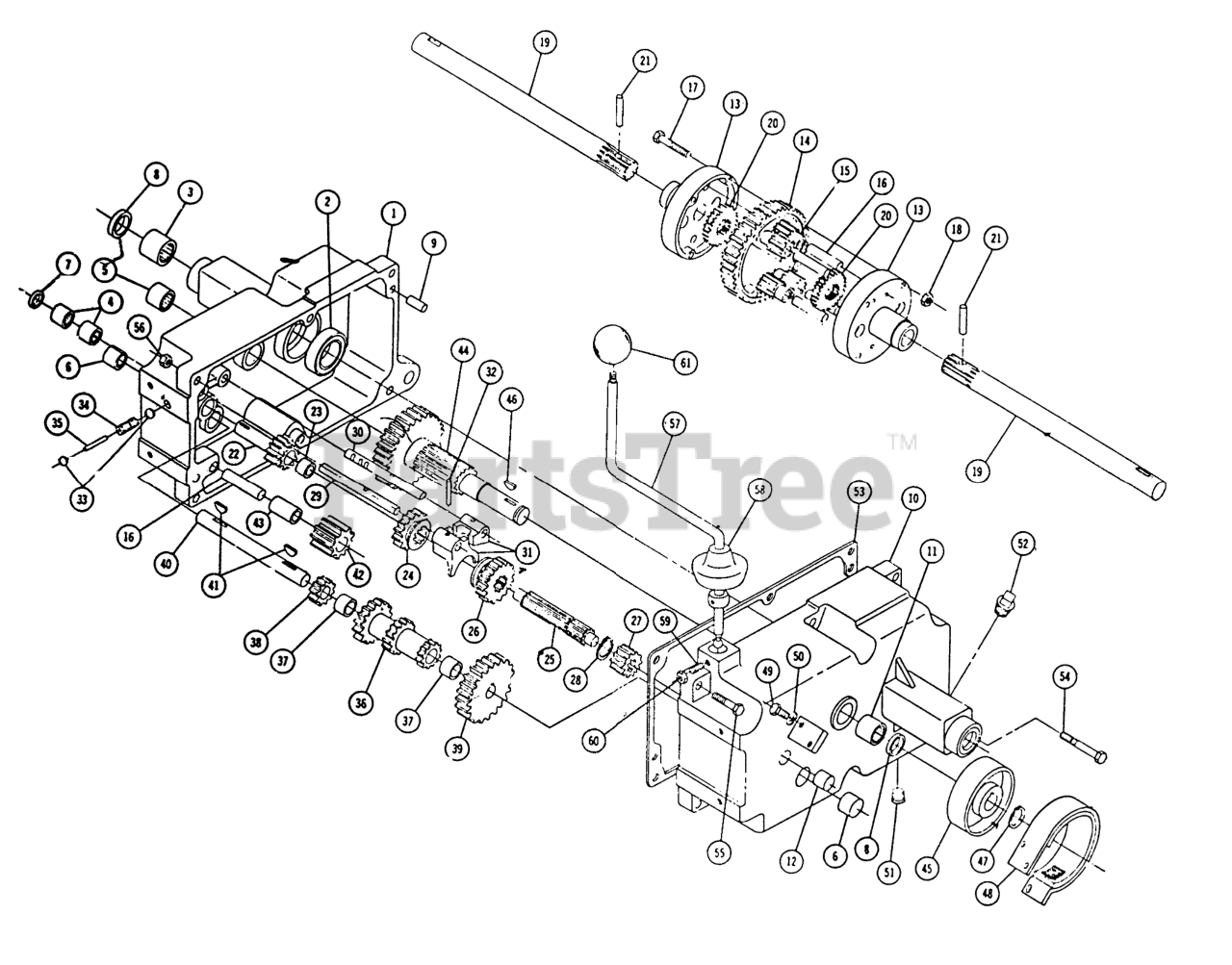

1-3741 - Toro WorkHorse 700 Lawn Tractor (1969) > Parts Diagrams (1) > 5053 TRANSMISSION

  • Title
3900

1

Case R.H

Part# 3900

OEM Warranty Repair Part for Toro

Not available

1533

2

BALL BRG 1 1/2 I.D.

Part# 1533

OEM Warranty Repair Part for Toro

Not available

1528

3

BEARING-NEEDLE

Part# 1528

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.15

1508

4

NEEDLE BEARING

Part# 1508 (Superseded to 252-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.86

1532

5

BEARING-NEEDLE

Part# 1532

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.68

1529

6

BEARING-NEEDLE

Part# 1529

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.22

1303

7

Seal

Part# 1303 (Superseded to 100441)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.85

1232

8

Seal

Part# 1232 (Superseded to 100863)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.21

3915

9

PIN-DOWEL

Part# 3915

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.03

3901

10

Case LH.

Part# 3901

OEM Warranty Repair Part for Toro

Not available

1530

11

Bearing-Needle

Part# 1530 (Superseded to 704019)

OEM Warranty Repair Part for Toro

Not available

1531

12

Bearing Needle

Part# 1531

OEM Warranty Repair Part for Toro

Not available

3905

13

DIFFERENTIAL CASE

Part# 3905

OEM Warranty Repair Part for Toro

Not available

3906

14

Bull Gear

Part# 3906

OEM Warranty Repair Part for Toro

Not available

4235

15

GEAR DIFF PINION

Part# 4235

OEM Warranty Repair Part for Toro

Not available

3909

16

PIN-DIFFERENTIAL

Part# 3909

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.36

908146

17

Bolt, 5/16-18 x 1/4

Part# 908146 (Superseded to 322-20)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.52

1316

18

Lock Nut 5/16-18

Part# 1316 (Superseded to 108687)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.79

3904

19

Axle

Part# 3904

OEM Warranty Repair Part for Toro

Not available

3908

20

AXLE GEAR

Part# 3908

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $106.85

933217

21

SPIROL ROLL PIN

Part# 933217

OEM Warranty Repair Part for Toro

Not available

3522

22

INPUT SHAFT

Part# 3522

OEM Warranty Repair Part for Toro

Not available

1518

23

BEARING-NEEDLE

Part# 1518

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.66

3523

24

GEAR

Part# 3523

OEM Warranty Repair Part for Toro

Not available

3907

25

Shaft Spline

Part# 3907

OEM Warranty Repair Part for Toro

Not available

3524

26

GEAR

Part# 3524

OEM Warranty Repair Part for Toro

Not available

3526

27

GEAR

Part# 3526

OEM Warranty Repair Part for Toro

Not available

936125

28

RING-SNAP, EXTERNAL

Part# 936125 (Superseded to 32120-72)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.76

5615

29

RAIL-SHIFT

Part# 5615

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $77.74

5616

30

RAIL-REAR SHIFT

Part# 5616

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $54.93

3503

31

FORK-SHIFT

Part# 3503

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.11

933156

32

PIN-ROLL

Part# 933156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.52

3517

33

BALL-DETENT

Part# 3517

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

3518

34

Spring

Part# 3518 (Superseded to 106030)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

5614

35

PIN-SHIFT

Part# 5614

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.50

3525

36

Cluster Gear

Part# 3525 (Superseded to 7269)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $695.82

1504

37

BUSHING-BRONZE

Part# 1504

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.66

3528

38

GEAR-PINION

Part# 3528

OEM Warranty Repair Part for Toro

Not available

3527

39

GEAR-CLUSTER SHAFT

Part# 3527

OEM Warranty Repair Part for Toro

Not available

3910

40

Cluster Shaft

Part# 3910

OEM Warranty Repair Part for Toro

Not available

937014

41

Key

Part# 937014 (Superseded to 3257-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.03

4204

42

GEAR/BUSHING ASM-REVERSE IDLER

Part# 4204

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $107.94

1516

43

BUSHING

Part# 1516

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.05

3903

44

Brake Shaft Gear

Part# 3903

OEM Warranty Repair Part for Toro

Not available

3902

45

Brake Drum

Part# 3902

OEM Warranty Repair Part for Toro

Not available

937022

46

WOODRUFF KEY

Part# 937022

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.08

936131

47

Snap Ring

Part# 936131 (Superseded to 32151-29)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.73

7376

48

BRAKE BAND & LINER A

Part# 7376

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $106.08

908002-4

49

Bolt-1/4-20 x 5/8

Part# 908002-4

OEM Warranty Repair Part for Toro

Currently unavailable

920081-4

50

Lockwasher

Part# 920081-4

OEM Warranty Repair Part for Toro

Currently unavailable

943460

51

PLUG 1/4 PIPE ALLEN

Part# 943460 (Superseded to 285-22)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.97

943420

52

Plug

Part# 943420 (Superseded to 281-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.77

3912

53

GASKET-TRANSMISSION

Part# 3912

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.13

908043-4

54

Bolt Hex 3/8-16 x 1

Part# 908043-4

OEM Warranty Repair Part for Toro

Currently unavailable

908038-4

55

Bolt, 3/8 16 x 2

Part# 908038-4

OEM Warranty Repair Part for Toro

Currently unavailable

915113-6

56

Nut

Part# 915113-6

OEM Warranty Repair Part for Toro

Currently unavailable

5632

57

Shift Stick

Part# 5632 (Superseded to 95-7684)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $119.64

3577

58

COVER-DUST

Part# 3577

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.62

1239

59

SETSCREW

Part# 1239

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.08

915111-6

60

Nut-Nylok

Part# 915111-6

OEM Warranty Repair Part for Toro

Currently unavailable
