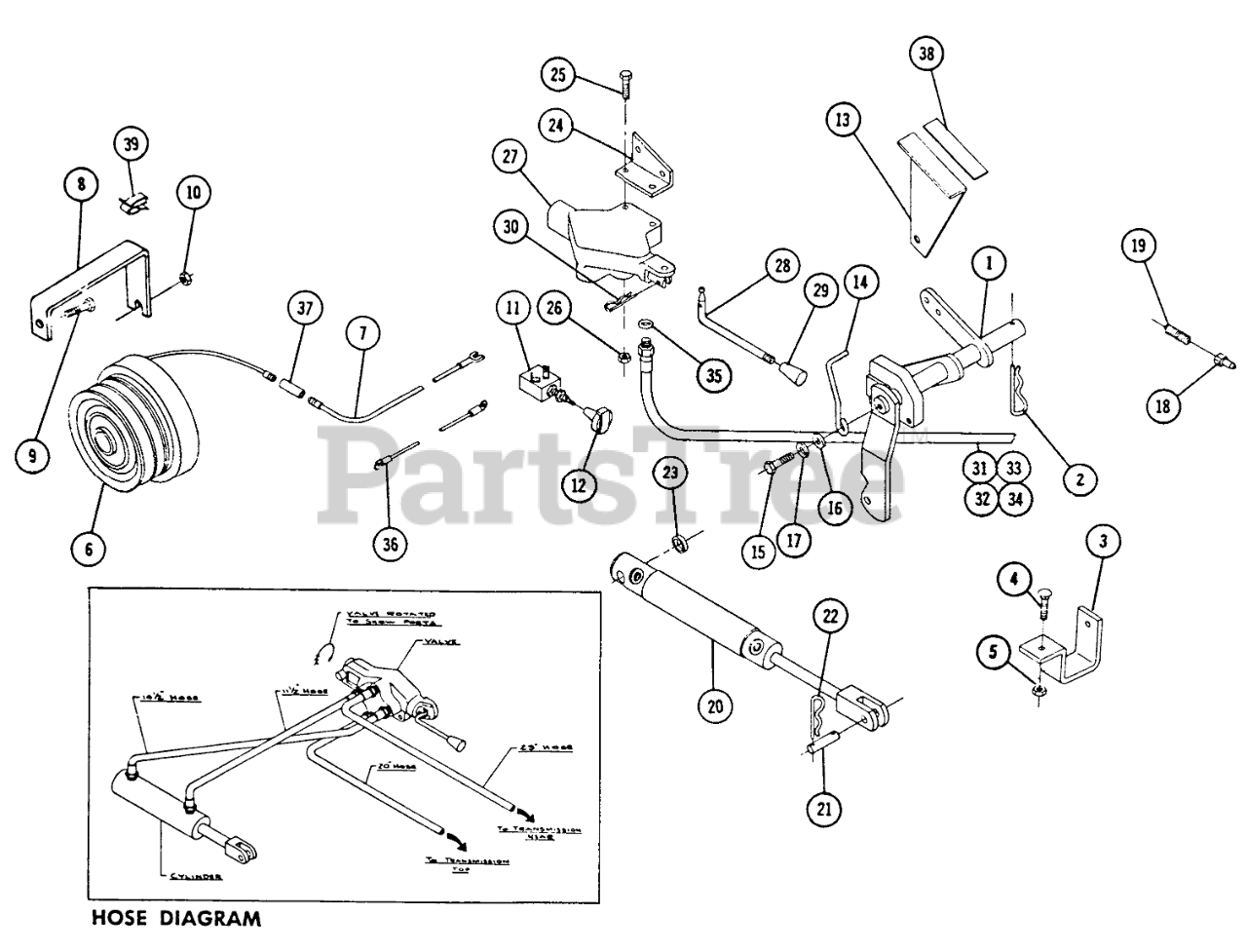

1-7245 - Toro Electro 12 Lawn Tractor (1969) ELECTRIC CLUTCH AND HYDRAULIC LIFT PARTS LIST Parts Diagram

Electro 12 Lawn Tractor

ELECTRIC CLUTCH AND HYDRAULIC LIFT PARTS LIST Parts Diagram

  • Title

1

Toro 6615

Lift Arm

$

$

Not available

2

Toro 933506-4

Hairpen

$

$

Currently unavailable

3

Toro 8007

Bracket

$

$

Currently unavailable

4

Toro 900214-4

Bolt-Carriage 5/16-18

$

$

Currently unavailable

5

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

6

Toro 7915

Ass-y. Clutch

$

$

Not available

7

Toro 7679

Wire

$

$

Not available

8

Toro 8039

BRACKET

$3.23

$

Usually ships in 3-6 days

0

9

Toro 908045-4

Bolt Hex 7/16-4 x 3/4

$

$

Currently unavailable

10

Toro 915000-6

Nut-Nylok 1/4-28

$

$

Currently unavailable

11

Toro 5273

Switch

$

$

Not available

12

Toro 7912

Knob

$

$

Not available

13

Toro 6628

Indicator Plate

$

$

Not available

14

Toro 6629

Arm

$

$

Currently unavailable

15

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

16

Toro 920008-4

Washer

$

$

Currently unavailable

17

Toro 920082-4

Lockwasher

$

$

Currently unavailable

18

Toro 6632

Cone

$

$

Not available

19

Toro 6631

Spring

$

$

Not available

20

Toro 6618

Cylinder
(Superseded to 105254)

$

$

Not available

21

Toro 6619

PIN

$

$

Not available

22

Toro 933504-4

Hairpin

$

$

Currently unavailable

23

Toro 4064

Spacer
(Superseded to 703269)

$108.99

$

Usually ships in 3-6 days

0

24

Toro 6620

SUPPORT-VALVE

$

$

Not available

25

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

26

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

27

Toro 6621

Valve

$

$

Not available

28

Toro 6622

VALVE LEVER

$

$

Not available

29

Toro 6623

Knob

$

$

Not available

30

Toro 933505-4

Hairpin

$

$

Currently unavailable

31

Toro 6624

Ass-y. Hose-29"
(Superseded to 101420)

$

$

Not available

32

Toro 6625

Ass-y. Hose-20"
(Superseded to 101421)

$

$

Not available

33

Toro 6626

Ass-y. Hose-14-1/2"
(Superseded to 104983)

$

$

Not available

34

Toro 6627

Hose-111/2
(Superseded to 101423)

$

$

Not available

35

Toro 973310

O RING

$4.99

$

In Stock, only 2 left!

0

36

Toro 7972

Wire-Switch to Clutch

$

$

Not available

37

Toro 6922

CONNECTOR 2 WIRE

$

$

Not available

38

Toro 6630

Decal

$

$

Currently unavailable

39

Toro 8519

CLIP-WIRE

$

$

Not available
