1-7245 - Toro Electro 12 Lawn Tractor (1969) "electro 12" Parts List Parts Diagram

Electro 12 Lawn Tractor

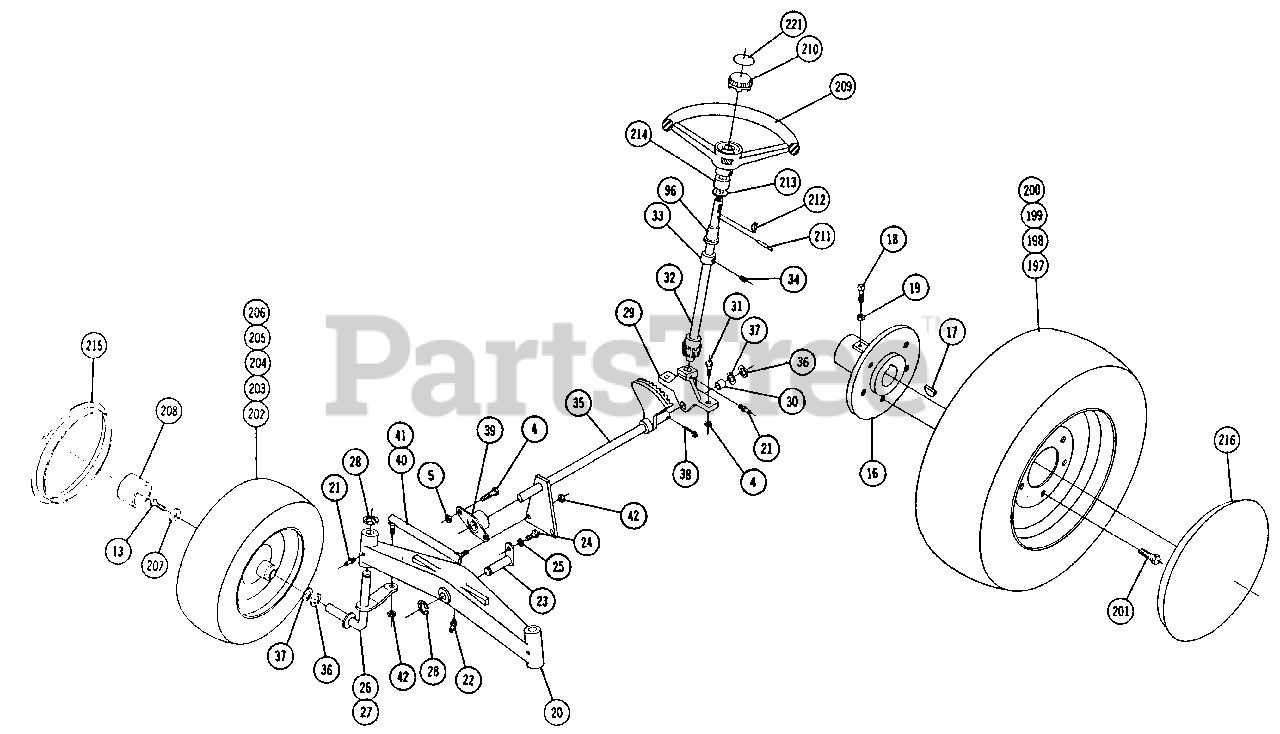

"electro 12" Parts List Parts Diagram

  • Title

1

Toro 7627

Ass-y.Frame

$

$

Currently unavailable

2

Toro 7665

Hoodstand

$

$

Currently unavailable

3

Toro 6825

Cover-Dust

$

$

Currently unavailable

4

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

5

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

7

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

8

Toro 7446

DISCONTINUED

$

$

Not available

9

Toro 909862-S

Set Screw, 5/16-18 x 5/16

$

$

Currently unavailable

10

Toro 937010

WOODRUFF KEY

$

$

Not available

11

Toro 908033-4

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

12

Toro 920083-4

Lockwasher

$

$

Currently unavailable

13

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

14

Toro 6110

DUP PART SEE $BOOK

$

$

Not available

15

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

16

Toro 6465

See Supercession: 105763-03
(Superseded to 105763-03)

$206.99

$

In Stock, only 1 left!

0

17

Toro 937022

KEY-WOODRUFF

$3.49

$

In Stock, only 3 left!

0

18

Toro 909554

See Supercession: 3243-5
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

19

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

20

Toro 5638

See Supercession: 5638-01
(Superseded to 5638-01)

$

$

Not available

21

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

22

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 1 left!

0

23

Toro 6216

PIN AND PLATE ASM

$54.99

$

Usually ships in 3-6 days

0

24

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

25

Toro 920082-4

Lockwasher

$

$

Currently unavailable

26

Toro 5630

See Supercession: 115426
(Superseded to 115426)

$104.99

$

In Stock, only 1 left!

0

27

Toro 5631

See Supercession: 115425
(Superseded to 115425)

$

$

Not available

28

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

29

Toro 6396

See Supercession: 88-2710-03
(Superseded to 88-2710-03)

$

$

Not available

30

Toro 6397

BEARING-BRONZE

$27.99

$

In Stock, only 3 left!

0

31

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

32

Toro 7447

DISCONTINUED

$

$

Not available

33

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

34

Toro 909848-S

Set Screw 1/4-20 x 1/4 Nylok

$

$

Currently unavailable

35

Toro 6469

DISCONTINUED
(Superseded to 114198-01)

$

$

Not available

36

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

37

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

38

Toro 932035-4

Cotter Pin

$

$

Currently unavailable

39

Toro 6472

BEARING-FLANGED

$27.99

$

In Stock, only 2 left!

0

40

Toro 5628

See Supercession: 78-2900
(Superseded to 78-2900)

$74.99

$

In Stock, only 2 left!

0

41

Toro 5629

See Supercession: 78-2900
(Superseded to 78-2900)

$74.99

$

In Stock, only 2 left!

0

42

Toro 915002-6

Locknut 3/8-24

$

$

Currently unavailable

43

Toro 6403

DISCONTINUED

$

$

Not available

44

Toro 6254

BUSHING

$21.99

$

In Stock, only 2 left!

0

45

Toro 6113

DUP PART SEE $BOOK

$

$

Not available

46

Toro 933504-4

Hairpin

$

$

Currently unavailable

47

Toro 933503-4

Hairpin

$

$

Currently unavailable

48

Toro 933188

Roll Pin
(Superseded to 32121-93)

$

$

Not available

49

Toro 1085

See Supercession: 83-2770
(Superseded to 83-2770)

$

$

Not available

50

Toro 7474

DISCONTINUED

$

$

Not available

51

Toro 920011-4

Washer

$

$

Currently unavailable

52

Toro 5701

See Supercession: 32120-47
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 10

0

53

Toro 6130

DUP PART SEE $BOOK

$

$

Not available

54

Toro 7879

BUSHING-FLANGED

$25.99

$

Usually ships in 3-6 days

0

55

Toro 908003-4

Bolt 1/4-20 X 3/4

$

$

Currently unavailable

56

Toro 915234-4

Nut-Jam 1

$

$

Currently unavailable

57

Toro 920081-4

Lockwasher

$

$

Currently unavailable

58

Toro 7432

Handle-Brake

$

$

Currently unavailable

59

Toro 6129

KNOB

$14.99

$

In Stock, only 1 left!

0

60

Toro 8277

DISCONTINUED

$

$

Not available

61

Toro 1644

See Supercession: 98-8083-01
(Superseded to 98-8083-01)

$104.99

$

Usually ships in 3-6 days

0

62

Toro 1647

See Supercession: 105269
(Superseded to 105269)

$

$

Not available

63

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 5

0

64

Toro 8272

DISCONTINUED

$

$

Not available

65

Toro 7781

DISCONTINUED

$

$

Not available

66

Toro 7779

LINK BATTERY CLAMP

$77.99

$

Usually ships in 3-6 days

0

67

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

68

Toro 920009-4

Washer

$

$

Currently unavailable

69

Toro 6135

SPRING-BRAKE

$14.99

$

In Stock, only 2 left!

0

70

Toro 7434

See Supercession: 112426
(Superseded to 112426)

$28.99

$

In Stock, only 2 left!

0

71

Toro 7435

DISCONTINUED

$

$

Not available

72

Toro 911404-4

Bolt 3/8-16 x 1 5/8

$

$

Currently unavailable

73

Toro 7598

DISCONTINUED

$

$

Not available

74

Toro 6128

DISCONTINUED

$

$

Not available

75

Toro 908001-4

Bolt, 1/4-x 1/2

$

$

Currently unavailable

76

Toro MW-2195

Bearing

$

$

Currently unavailable

77

Toro 6127

DISCONTINUED

$

$

Not available

78

Toro 915113-6

Nut

$

$

Currently unavailable

79

Toro 7604

See Supercession: 741211
(Superseded to 741211)

$296.99

$

Usually ships in 3-6 days

0

80

Toro 7599

DISCONTINUED

$

$

Not available

81

Toro 7601

DISCONTINUED

$

$

Not available

82

Toro 7600

DISCONTINUED

$

$

Not available

83

Toro 7602

DISCONTINUED

$

$

Not available

84

Toro 7603

DISCONTINUED

$

$

Not available

85

Toro 915241-4

Nut 3/1-10 Jam

$

$

Currently unavailable

86

Toro 937007

WOODRUFF KEY

$

$

Not available

87

Toro 6142

DUP PART SEE $BOOK

$

$

Not available

88

Toro 6143

DISCONTINUED

$

$

Not available

89

Toro 5983

BUSHING-NYLINER

$7.49

$

In Stock, Qty 7

0

90

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 1 left!

0

91

Toro 1230

DUP PART SEE $BOOK

$

$

Not available

92

Toro 5450

DISCONTINUED

$

$

Not available

93

Toro 8037

DISCONTINUED

$

$

Not available

94

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

95

Toro 960152-4

Bolt 1/4-20 x 5/8 Whizlock

$

$

Currently unavailable

96

Toro 5409

DUP PART SEE $BOOK

$

$

Not available

97

Toro 5439

DISCONTINUED

$

$

Not available

98

Toro 7917

Panel

$

$

Currently unavailable

99

Toro 5442

DISCONTINUED

$

$

Not available

100

Toro 926308-4

Screw-Self #10 10-16

$

$

Currently unavailable

101

Toro 8022

See Supercession: 101468
(Superseded to 101468)

$

$

Not available

102

Toro 8026

See Supercession: 100427
(Superseded to 100427)

$

$

Not available

103

Toro 1789

See Supercession: 108011
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

104

Toro 909059-4

Bolt

$

$

Currently unavailable

105

Toro 915515-4

Nut Square

$

$

Currently unavailable

106

Toro 8023

S/A FUEL VALVE

$

$

Not available

107

Toro 8024

See Supercession: 101338
(Superseded to 101338)

$

$

Not available

108

Toro 4256

See Supercession: HY4256

$

$

Not available

109

Toro 950153

DISCONTINUED

$

$

Not available

110

Toro 8214

See Supercession: 110521
(Superseded to 110521)

$

$

Not available

111

Toro 8040

Engine 12 H.P.

$

$

Currently unavailable

112

Toro 909036-4

Bolt Hex 3/8-16 x 1 1/2

$

$

Currently unavailable

113

Toro 943333-4

Nipple

$

$

Currently unavailable

114

Toro 5222

DISCONTINUE

$

$

Not available

115

Toro 5224

See Supercession: 288-4
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

116

Toro 2873

DISCONTINUED

$

$

Not available

117

Toro 943367-4

Nipple 1" Pipe x 2"

$

$

Currently unavailable

118

Toro 3947

See Supercession: 943364
(Superseded to 943364)

$

$

Not available

119

Toro 3939

See Supercession: 943046
(Superseded to 943046)

$

$

Not available

120

Toro 8027

DISCONTINUED
(Superseded to 7443)

$

$

Not available

121

Toro 8006

DISCONTINUED

$

$

Not available

122

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

123

Toro 7926

See Supercession: 102118
(Superseded to 102118)

$53.99

$

Usually ships in 3-6 days

0

124

Toro 7889

See Supercession: 102119
(Superseded to 102119)

$51.99

$

Usually ships in 3-6 days

0

125

Toro 920127-4

Lockwasher 9/16

$

$

Currently unavailable

126

Toro 1364

RING NUT

$

$

Not available

127

Toro 8362

SWITCH

$

$

Not available

128

Toro 7261

See Supercession: 88-2130
(Superseded to 88-2130)

$

$

Not available

129

Toro 920159-4

Lockwasher 6/16

$

$

Currently unavailable

130

Toro 5451

See Supercession: 101446
(Superseded to 101446)

$

$

Not available

131

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

132

Toro 5480

DISCONTINUED

$

$

Not available

133

Toro 5481

Knob Plug

$

$

Currently unavailable

134

Toro 5483

DISCONTINUED

$

$

Not available

135

Toro 5482

DISCONTINUED

$

$

Not available

136

Toro 915562

DISCONTINUED

$

$

Not available

137

Toro 920078

DISCONTINUED

$

$

Not available

138

Toro 8561

Wire

$

$

Currently unavailable

139

Toro 7778

See Supercession: 704115
(Superseded to 704115)

$

$

Not available

140

Toro 8560

Harness-Wiring

$

$

Currently unavailable

141

Toro 8562

DISCONTINUED
(Superseded to 105272)

$

$

Not available

142

Toro 7223

DISCONTINUED

$

$

Not available

143

Toro 7226

DISCONTINUED

$

$

Not available

144

Toro 7227

SPRING

$

$

Not available

145

Toro 7228

BULB

$25.99

$

In Stock, only 2 left!

0

146

Toro 7075

See Supercession: 98-1713
(Superseded to 98-1713)

$96.99

$

In Stock, only 1 left!

0

147

Toro 7229

See Supercession: 88-2120
(Superseded to 88-2120)

$

$

Not available

148

Toro 7184

DISCONTINUED

$

$

Not available

149

Toro 8468

Harness

$

$

Currently unavailable

150

Toro 3023

DISCONTINUED

$

$

Not available

151

Toro 7618

DISCONTINUED

$

$

Not available

152

Toro 8519

DISCONTINUED

$

$

Not available

153

Toro 8041

DISCONTINUED
(Superseded to 105202)

$

$

Not available

154

Toro 8042

See Supercession: 112564
(Superseded to 112564)

$10.99

$

In Stock, only 2 left!

0

155

Toro 8043

Bulb

$

$

Currently unavailable

156

Toro 8044

DISCONTINUED

$

$

Not available

157

Toro 6922

DISCONTINUED

$

$

Not available

158

Toro 909138-4

Bolt #10-32

$

$

Currently unavailable

159

Toro 915551-4

Nut #10-32

$

$

Currently unavailable

160

Toro 920079-4

Lockwasher #10

$

$

Currently unavailable

161

Toro 7436

See Supercession: 92-0014
(Superseded to 920014)

$

$

Not available

162

Toro 908045-4

Bolt Hex 7/16-4 x 3/4

$

$

Currently unavailable

163

Toro 920084-4

Lockwasher 3/8

$

$

Currently unavailable

164

Toro 7463

See Supercession: 105486
(Superseded to 105486)

$

$

Not available

165

Toro 960175-4

Bolt, 5/16-18 x 1/2

$

$

Currently unavailable

166

Toro 7454

Footrest R.H.

$

$

Currently unavailable

167

Toro 7455

See Supercession: 105843
(Superseded to 105843)

$

$

Not available

168

Toro 7456

BRACKET

$

$

Not available

169

Toro 900214-4

Bolt-Carriage 5/16-18

$

$

Currently unavailable

170

Toro 7464

DISCONTINUED

$

$

Not available

171

Toro MW-8863

Spring

$

$

Currently unavailable

172

Toro 5977

NYLINER BUSHING

$6.99

$

In Stock, only 1 left!

0

173

Toro 7617

DISCONTINUED

$

$

Not available

174

Toro 7616

DISCONTINUED

$

$

Not available

175

Toro 915661-4

Nut, 1/4-20

$

$

Currently unavailable

176

Toro 7559

Cover Plate

$

$

Currently unavailable

177

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

178

Toro 7417

DISCONTINUED

$

$

Not available

179

Toro 4937

DISCONTINUED

$

$

Not available

180

Toro 5667

GROMMET

$5.49

$

In Stock, Qty 5

0

181

Toro 7070

See Supercession: 78-7600
(Superseded to 78-7600)

$

$

Not available

182

Toro 920008-4

Washer

$

$

Currently unavailable

183

Toro 7230

DISCONTINUED

$

$

Not available

184

Toro 5455

Hood-Hinge

$

$

Currently unavailable

185

Toro 5457

NYLINER BUSHING

$24.99

$

Usually ships in 3-6 days

0

186

Toro 6490

DISCONTINUED

$

$

Not available

187

Toro 5467

LEVER HOOD LATCH

$203.99

$

Usually ships in 3-6 days

0

188

Toro 5469

KNOB

$4.99

$

In Stock, only 2 left!

0

189

Toro 933182

SPIROL PIN

$

$

Not available

190

Toro 5505

DISCONTINUED

$

$

Not available

191

Toro 5468

DISCONTINUE WHEN EXP

$

$

Not available

192

Toro 915932-4

Nut-Hi Crown

$

$

Currently unavailable

193

Toro 5466

DISCONTINUED

$

$

Not available

194

Toro 5522

See Supercession: 88-2090
(Superseded to 88-2090)

$

$

Not available

195

Toro 5438

Hood Ornament

$

$

Currently unavailable

196

Toro 5437

DISCONTINUED

$

$

Not available

197

Toro 5432

DISCONTINUED

$

$

Not available

198

Toro 5433

DISCONTINUED
(Superseded to 110677)

$

$

Not available

199

Toro 5434

See Supercession: 102786
(Superseded to 102786)

$

$

Not available

200

Toro 5435

DISCONTINUE

$

$

Not available

201

Toro 1004

DUP PART SEE $BOOK

$

$

Not available

202

Toro 5637

Wheel, Tire Tube

$

$

Currently unavailable

203

Toro 5635

WHEEL RIM

$

$

Not available

204

Toro 4999

See Supercession: 110513
(Superseded to 110513)

$23.99

$

In Stock, Qty 20+

0

205

Toro 5636

Tire

$

$

Currently unavailable

206

Toro 5512

DISCONTINUED
(Superseded to 1669)

$

$

Not available

207

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

208

Toro 7747

DISCONTINUED
(Superseded to 103565)

$

$

Not available

209

Toro 7420

BULLT 399C

$

$

Not available

210

Toro 7469

DISCONTINUED

$

$

Not available

211

Toro 933215

ROLL PIN 1/4 X 1-1/4

$2.49

$

Usually ships in 3-6 days

0

212

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 15

0

213

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 3 left!

0

214

Toro 7468

COLLAR

$

$

Not available

215

Toro 7973

Disc 8" Wheel

$

$

Currently unavailable

216

Toro 7974

Disc 12" Wheel

$

$

Currently unavailable

217

Toro 7981

Decal Charger Auto Drive

$

$

Currently unavailable

218

Toro 7979

DISCONTINUED XREF

$

$

Not available

219

Toro 7980

DISCONTINUED XREF

$

$

Not available

220

Toro 5604

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

221

Toro 7421

Decal**

$

$

Currently unavailable

222

Toro 7634

Decal Free Wheeling

$

$

Currently unavailable

223

Toro 7633

Decal

$

$

Currently unavailable

224

Toro 1813

See Supercession: 106634
(Superseded to 106634)

$

$

Not available

225

Toro 7478

V BELT

$68.99

$

Usually ships in 3-6 days

0

226

Toro 2879

See Supercession: 7922
(Superseded to 7922)

$4.49

$

Usually ships in 3-6 days

0

227

Toro 5189

DISCONTINUED

$

$

Not available

228

Toro 960150-4

Bolt 1/4-20 x 3/8

$

$

Currently unavailable

229

Toro 5431

DISCONTINUED

$

$

Not available

1

Toro 8046

See Supercession: 103636
(Superseded to 103636)

$

$

Not available

2

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

3

Toro 1533

DISCONTINUED

$

$

Not available

4

Toro 1526

DUP PART SEE $BOOK

$

$

Not available

5

Toro 6449

SEAL-OIL

$28.99

$

In Stock, only 3 left!

0

6

Toro 5959

DISCONTINUED

$

$

Not available

7

Toro 3915

PIN-DOWEL

$8.49

$

Usually ships in 3-6 days

0

8

Toro 8047

See Supercession: 102617
(Superseded to 102617)

$

$

Not available

9

Toro 5960

DISCONTINUED

$

$

Not available

10

Toro 8050

DISCONTINUED

$

$

Not available

11

Toro 8051

DISCONTINUED

$

$

Not available

12

Toro 7202

See Supercession: 121384
(Superseded to 121384)

$

$

Not available

13

Toro 7203

DISCONTINUED
(Superseded to 121384)

$

$

Not available

14

Toro 7169

DISCONTINUED

$

$

Not available

15

Toro 7199

DISCONTINUED

$

$

Not available

16

Toro 8053

SIDE GEAR

$

$

Not available

17

Toro 7196

DISCONTINUED

$

$

Not available

18

Toro 7200

BULLT 252

$

$

Not available

19

Toro 933209

DISCONTINUED

$

$

Not available

20

Toro 8056

DISCONTINUED

$

$

Not available

21

Toro 7235

DISCONTINUED

$

$

Not available

22

Toro 908138-4

Bolt Hex 3 1/4

$

$

Currently unavailable

23

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

24

Toro 920009-4

Washer

$

$

Currently unavailable

25

Toro 6452

DISCONTINUED XREF

$

$

Not available

26

Toro 5963

DISCONTINUED

$

$

Not available

27

Toro 5964

DISCONTINUED

$

$

Not available

28

Toro 5965

DISCONTINUED

$

$

Not available

29

Toro 936131

See Supercession: 32151-29
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 8

0

30

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 15

0

31

Toro 5966

DISCONTINUED

$

$

Not available

32

Toro 5999

DISCONTINUED

$

$

Not available

33

Toro 908143-4

Bolt Hex 3/8-16 x 5

$

$

Currently unavailable

34

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

35

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

36

Toro 915113-6

Nut

$

$

Currently unavailable

37

Toro 908034-6

Bolt, 3/8-16 x 1

$

$

Currently unavailable

38

Toro 5969

DISCONTINUED

$

$

Not available

39

Toro 933152

See Supercession: 32121-50
(Superseded to 32121-50)

$3.49

$

In Stock, Qty 5

0

40

Toro 5990

See Supercession: 79-5270
(Superseded to 79-5270)

$20.99

$

In Stock, only 2 left!

0

41

Toro 5991

FITTING

$

$

Not available

42

Toro 5992

See Supercession: 106047
(Superseded to 106047)

$

$

Not available

43

Toro 6155

See Supercession: 6155-P
(Superseded to 6155-P)

$3.23

$

Usually ships in 3-6 days

0

44

Toro 943346-4

Nipple 1/2 Pipe x 31/2

$

$

Currently unavailable

45

Toro 943004

Coupling 1/2 Pipe

$

$

Currently unavailable

46

Toro 5955

DISCONTINUED

$

$

Not available

47

Toro 943460

See Supercession: 285-22
(Superseded to 285-22)

$

$

Not available

48

Toro 7880

SRV BULLT 437B

$

$

Not available

49

Toro 5993

DISCONTINUED

$

$

Not available

50

Toro 911037

DISCONTINUED

$

$

Not available

51

Toro 6826

DISCONTINUED

$

$

Not available

52

Toro 972116

DISCONTINUE

$

$

Not available

53

Toro 5994

Arm-Cam Follower

$

$

Currently unavailable

54

Toro 933215

ROLL PIN 1/4 X 1-1/4

$2.49

$

Usually ships in 3-6 days

0

55

Toro 970026

RING

$

$

Not available

56

Toro 5995

DISCONTINUED

$

$

Not available

57

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

58

Toro 5998

DISCONTINUED

$

$

Not available

59

Toro 909000-4

Bolt-Rd. Heed #8-32 x 1/2

$

$

Currently unavailable

60

Toro 5996

CAM

$

$

Not available

61

Toro 920229-4

Washer

$

$

Currently unavailable

62

Toro 920078-4

Lockwasher

$

$

Currently unavailable

63

Toro 933196

SPIROL PIN

$

$

Not available

64

Toro 7266

DISCONTINUED

$

$

Not available

65

Toro 7268

DISCONTINUED

$

$

Not available

66

Toro 971113

DISCONTINUED

$

$

Not available

67

Toro 7267

DISCONTINUED

$

$

Not available

68

Toro 6444

DISCONTINUED

$

$

Not available

69

Toro 970118

DISCONTINUED

$

$

Not available

70

Toro 971015

O RING

$2.49

$

In Stock, Qty 11

0

71

Toro 7054

DISCONTINUED

$

$

Not available

72

Toro 971018

O RING

$9.49

$

In Stock, only 4 left!

0

73

Toro 7264

DISCONTINUED

$

$

Not available

74

Toro 7052

DISCONTINUED

$

$

Not available

75

Toro 7051

DISCONTINUED

$

$

Not available

76

Toro 7050

DISCONTINUED

$

$

Not available

77

Toro 7049

DISCONTINUED

$

$

Not available

78

Toro 971017

DISCONTINUED

$

$

Not available

79

Toro 7752

See Supercession: 25-2460
(Superseded to 25-2460)

$42.99

$

Usually ships in 3-6 days

0

80

Toro 7753

SPRING-SUNDSTRAND

$

$

Not available

81

Toro 7754

DISCONTINUED

$

$

Not available

82

Toro 7755

Spring Charge Pump Valve

$

$

Currently unavailable

83

Toro 7756

DISCONTINUED

$

$

Not available

84

Toro 943462

DISCONTINUED

$

$

Not available

85

Toro 973310

O RING

$6.99

$

Usually ships in 3-6 days

0

86

Toro 7877

DISCONTINUED

$

$

Not available
