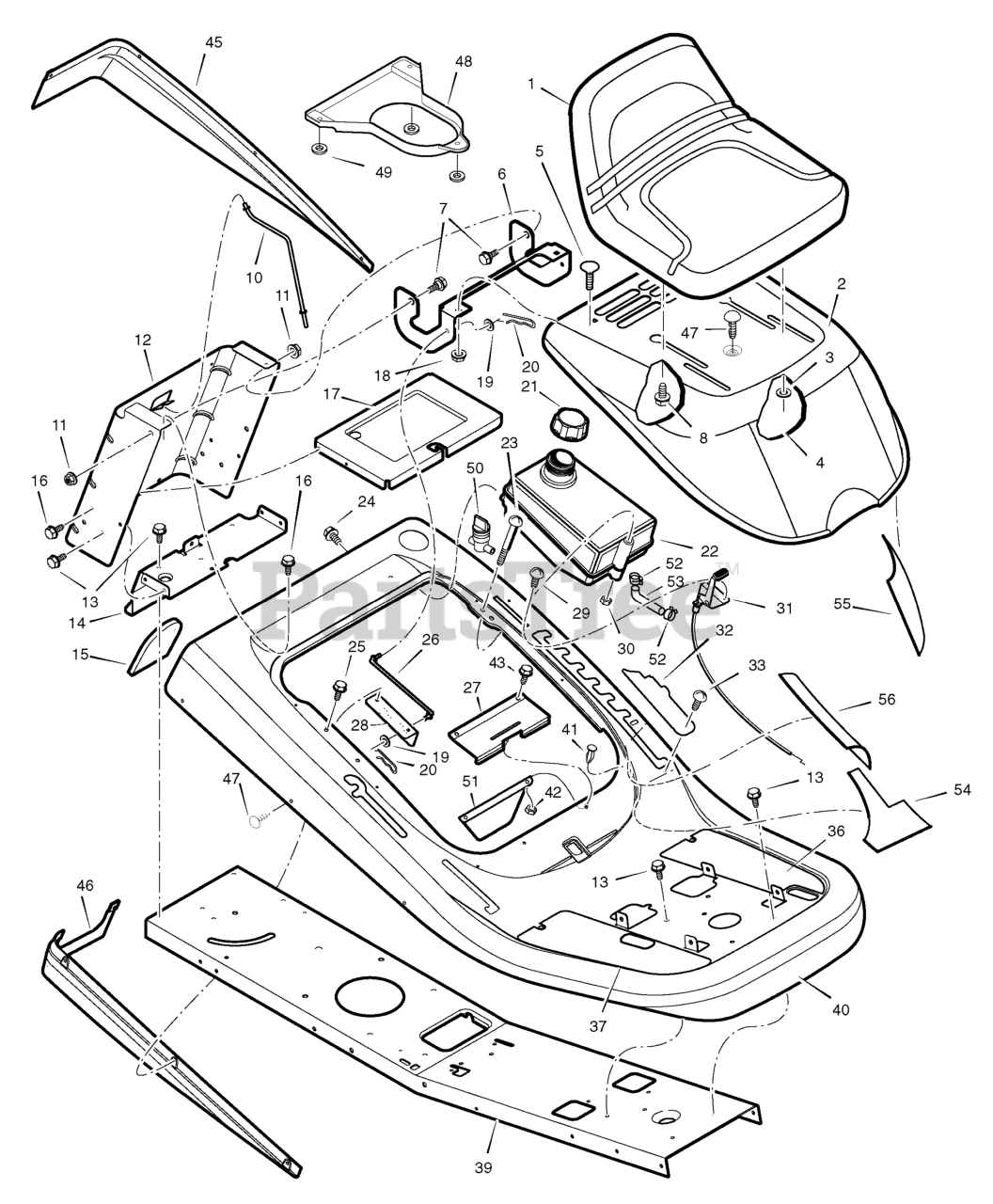

10/30 (309029x11E) - Hayter Heritage 30" Rear-Engine Riding Mower, Canada (2007) Chassis & Hood Parts Diagram

Heritage 30" Rear-Engine Riding Mower, Canada

Chassis & Hood Parts Diagram

  • Title

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray MU1001054MA

BOLT, Wing

$

$

Currently unavailable

5

Murray MU002X16MA

BOLT, Carriage

$

$

Currently unavailable

6

Murray MU1401378E701MA

BRACKET, Hinge

$

$

Currently unavailable

7

Murray MU009X29MA

BOLT, Shoulder

$

$

Currently unavailable

8

Murray MU009X56MA

BOLT, Shoulder

$

$

Currently unavailable

10

Murray MU1401113MA

ROD, Battery

$

$

Currently unavailable

11

Murray MU015X84MA

NUT, Flange

$

$

Currently unavailable

12

$

$

Currently unavailable

$

$

Currently unavailable

14

Murray MU1401050E701MA

Plate, Hitch

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

17

Murray MU1401076E701MA

TRAY, Battery

$

$

Currently unavailable

18

Murray MU015X79MA

NUT, Flange

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Murray MU0031X6MA

PIN, Cotter

$

$

Currently unavailable

21

Murray MU092317MA

Cap, Fuel Tank

Note: (Included with Ref. No. 22)

$

$

Currently unavailable

22

Murray MU1401361MA

Tank, Fuel

$

$

Currently unavailable

23

Murray MU06X111MA

SCREW

Note: (Included with Ref. No. 22)

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

26

Murray MU1401110MA

ROD, Hood Prop

$

$

Currently unavailable

27

Murray MU1401282MA

SPRING, Seat Deck

$

$

Currently unavailable

28

Murray MU1401297E701MA

BRACKET, Prop Rod

$

$

Currently unavailable

$

$

Currently unavailable

30

Murray MU15X116MA

NUT, NY-Lock

$

$

Currently unavailable

31

Murray MU1401248MA

CONTROL, Throttle

$

$

Currently unavailable

32

Murray MU1401084MA

Cover, Detent (Black)

$

$

Currently unavailable

33

Murray MU009X47MA

BOLT, Shoulder

$

$

Currently unavailable

36

Murray MU1401229MA

Footmat, Left (Black)

$

$

Currently unavailable

37

Murray MU1401228MA

Footmat, Right (Black)

$

$

Currently unavailable

$

$

Currently unavailable

40

$

$

Currently unavailable

41

$

$

Currently unavailable

42

Murray MU15X116MA

NUT

Note: (Included with Ref. No. 22)

$

$

Currently unavailable

$

$

Currently unavailable

44

Murray MU7601036MA

Kit, Foil Heat Shield

$

$

Currently unavailable

45

Murray MU1401073MA

TRIM, Left

$

$

Currently unavailable

46

Murray MU1401072MA

TRIM, Right

$

$

Currently unavailable

47

Murray MU0193X1MA

FASTENER, Panel

$

$

Currently unavailable

48

$

$

Currently unavailable

49

Murray MU15X123MA

NUT, Hex 5/16-18

$

$

Currently unavailable

50

Murray MU698183

Valve, Fuel Shutoff

$

$

Currently unavailable

51

Murray MU1401401MA

SHIELD, Heat

$

$

Currently unavailable

52

Murray MU095197MA

Hose, Clamp

$

$

Currently unavailable

53

$

$

Currently unavailable

54

Murray MU1401385MA

Heat Shield, Hood

$

$

Currently unavailable

55

Murray MU1401208MA

Reflector Tape, Heat Shield Hood

$

$

Currently unavailable

56

Murray MU1401209MA

Reflector Tape, Heat Shield Upper

$

$

Currently unavailable

--

Murray MU1401361

Bag, Parts

$

$

Currently unavailable

--

Murray 111-1179

Book, Instruction

$

$

Currently unavailable

--

Murray 111-1012

Manual, Parts LIst

$

$

Currently unavailable
