10-30 - Husqvarna 30" Snow Blower (1996-12) DRIVE 2 Parts Diagram

30" Snow Blower

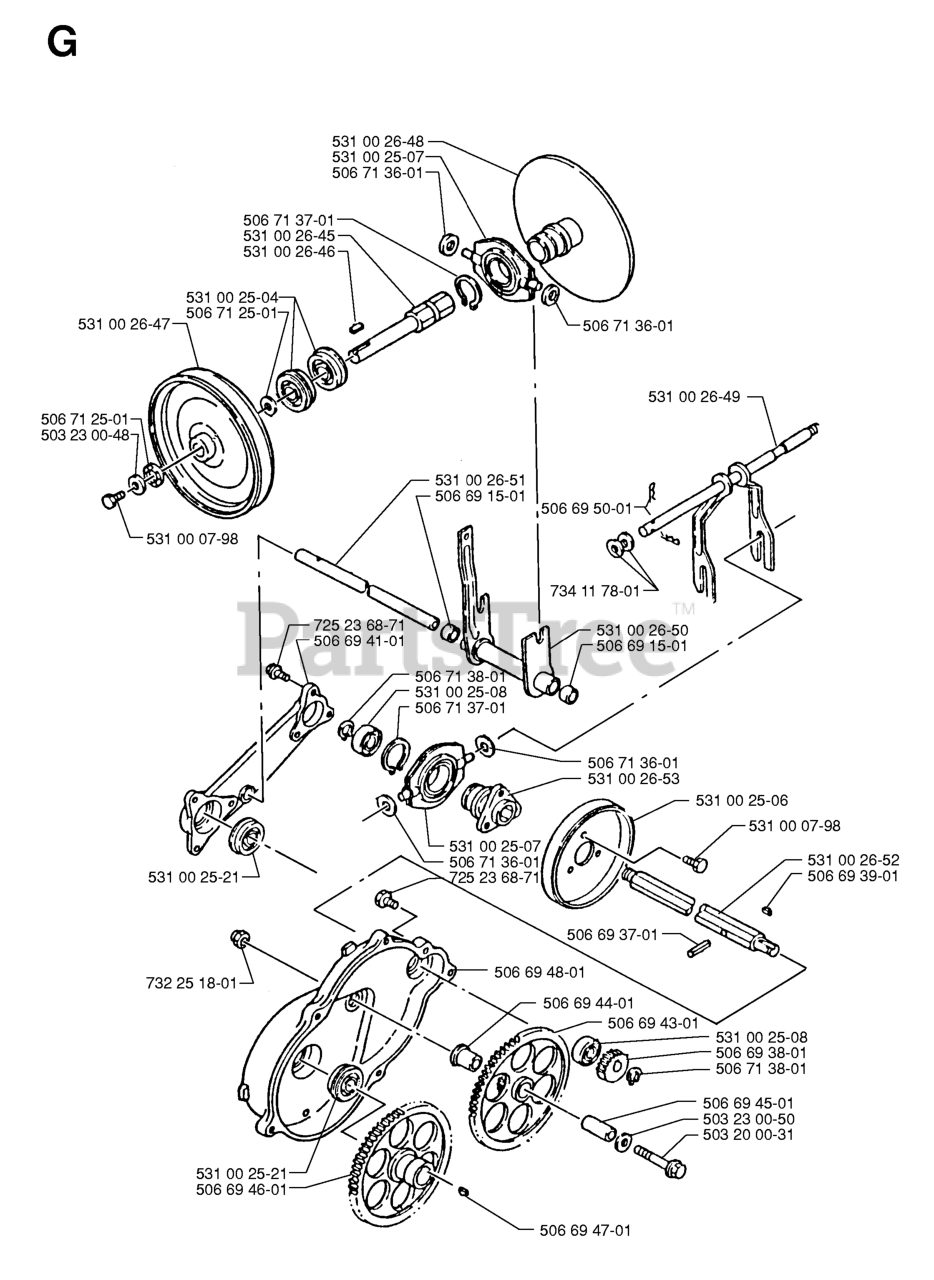

DRIVE 2 Parts Diagram

  • Title

506 69 43-01

Husqvarna 506694301

IDLER GEAR CLUSTER - SUB ASSY

$

$

Not available

506 69 37-01

Husqvarna 506693701

ROLL PIN - M3X22

$

$

Not available

506 71 36-01

Husqvarna 506713601

WASHER - 30X11X1.6

$

$

Not available

725 23 68-71

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, Qty 6

0

531 00 25-21

Husqvarna 531002521

BEARING - 6004-DDU-C3
(Superseded to 738210404)

$22.99

$

In Stock, Qty 20+

0

506 71 25-01

Husqvarna 506712501

WASHER - WAVE SPRING, M18

$

$

Not available

531 00 26-47

Husqvarna 531002647

PULLEY - TRACTION

$

$

Not available

506 69 39-01

Husqvarna 506693901

KEY SQ

$

$

Not available

531 00 25-08

Husqvarna 531002508

BEARING

$

$

Not available

506 69 44-01

Husqvarna 506694401

BUSHING FLANGE - PLASTIC

$

$

Not available

531 00 25-06

Husqvarna 531002506

WHEEL - FRICTION

$

$

Not available

531 00 26-48

Husqvarna 531002648

FRICTION DISC - W ASSY

$

$

Not available

531 00 26-45

Husqvarna 531002645

SHAFT DRIVE - DISC

$

$

Not available

506 69 38-01

Husqvarna 506693801

GEAR - INPUT, HEX SHAFT

$

$

Not available

506 69 45-01

Husqvarna 506694501

SHAFT - IDLER GEAR CLUSTER

$3.99

$

Usually ships in 3-10 days

0

531 00 07-98

Husqvarna 531000798

BOLT FLANGE - 1/4-20X0.75"

$

$

Not available

531 00 26-53

Husqvarna 531002653

HUB - FRICTION WHEEL

$

$

Not available

506 71 37-01

Husqvarna 506713701

RETAINING RING - M35 "C"

$

$

Not available

732 25 18-01

Husqvarna 732251801

NUT LOCK - M8, NYLOCK
(Superseded to 732211801)

$5.99

$

In Stock, Qty 13

0

531 00 25-07

Husqvarna 531002507

TRUNION BEARING - W - ASSY

$

$

Not available

506 69 15-01

Husqvarna 506691501

BUSHING FLANGED - PLASTIC

$

$

Not available

531 00 26-51

Husqvarna 531002651

SHAFT - TRACTION ENGAGE
(Superseded to 506694201)

$

$

Not available

531 00 26-46

Husqvarna 531002646

KEY SQ

$

$

Not available

506 71 38-01

Husqvarna 506713801

RETAINING RING - M15 - "C"

$

$

Not available

506 69 46-01

Husqvarna 506694601

GEAR - OUTPUT, AXLE W-ASSY

$

$

Not available

506 69 47-01

Husqvarna 506694701

KEY WOODRUFF, AXLE - M5X19

$

$

Not available

531 00 26-52

Husqvarna 531002652

SHAFT -HEX
(Superseded to 506693601)

$

$

Not available

531 00 26-50

Husqvarna 531002650

TRACTION YOKE ASSY
(Superseded to 506693001)

$

$

Not available

503 23 00-48

Husqvarna 503230048

WASHER NLA

$

$

Not available

734 11 78-01

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

531 00 26-49

Husqvarna 531002649

SHIFTER YOKE ASSY

$

$

Not available

506 69 48-01

Husqvarna 506694801

HOUSING - TRACTION GEAR CASE

$

$

Not available

503 23 00-50

Husqvarna 503230050

WASHER

$

$

Not available

531 00 25-04

Husqvarna 531002504

BEARING - 6203-ZZNR-C3

$

$

Not available

503 20 00-31

Husqvarna 503200031

BOLT FLANGE - M8X50
(Superseded to 725246161)

$

$

Not available

506 69 50-01

Husqvarna 506695001

CLIP HITCH PIN M12

$

$

Not available

506 69 41-01

Husqvarna 506694101

HOUSING - SUPP AXLE/HEX SHAFT

$

$

Not available
