10-4270 - Toro Electric Start Kit for 5hp Snow Starter Kit Tecumseh Model Number 32386 Domestic Parts Diagram

Electric Start Kit for 5hp Snow

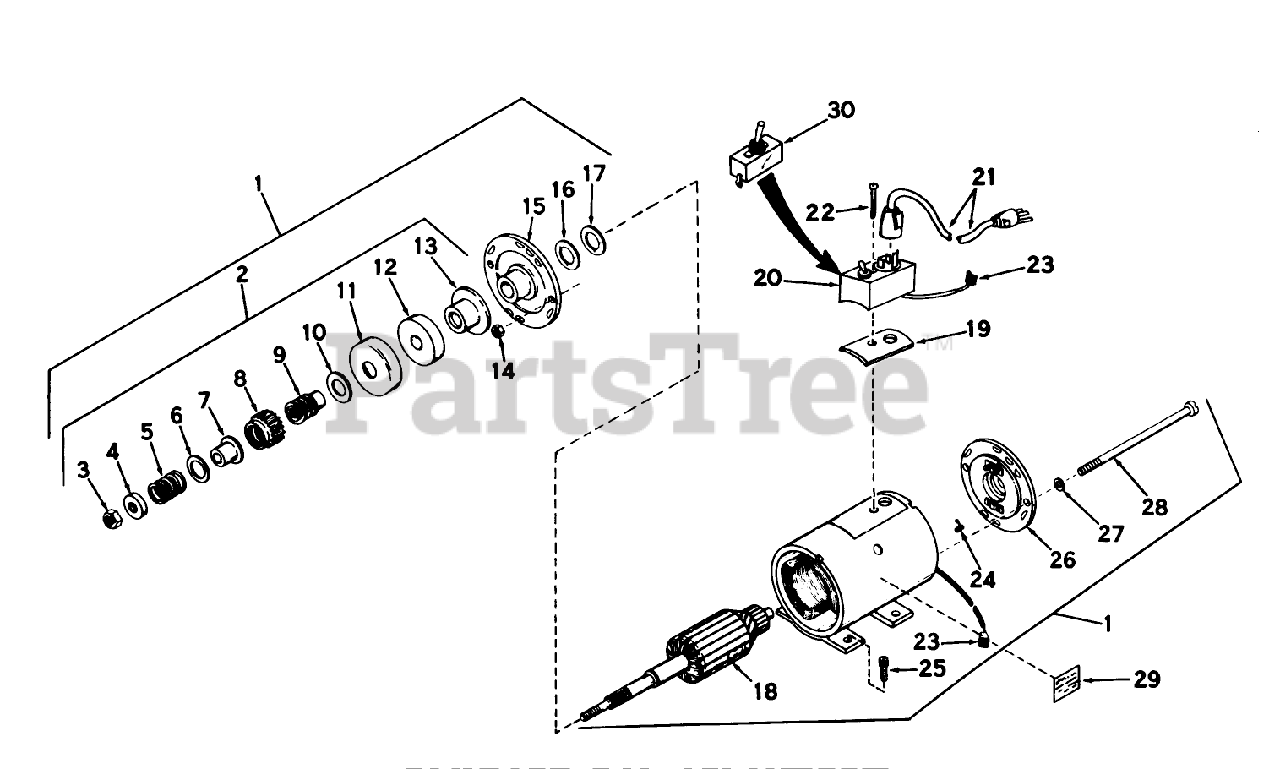

Starter Kit Tecumseh Model Number 32386 Domestic Parts Diagram

  • Title

1

Toro 32386

Motor, Cranking (Incl. Nos. 2 thru 30)

$

$

Currently unavailable

2

Toro 30003

Drive Assy., Complete (Incl. Nos. 1 thru 11)

$

$

Currently unavailable

3

Toro 30004

Nut, Elastic stop

$

$

Currently unavailable

4

Toro 28692

51084 3 1/2HP W/334

$3.23

$

Usually ships in 3-6 days

0

5

Toro 28693

Spring, Anti-drift

$

$

Currently unavailable

6

Toro 28694

Washer, Pinion

$

$

Currently unavailable

7

Toro 28695

Sleeve, Anti-drift

$

$

Currently unavailable

8

Toro 30005

Gear, Pinion

$

$

Currently unavailable

9

Toro 30006

Shaft, Screw

$

$

Currently unavailable

10

Toro 30007

Washer, Thrust

$

$

Currently unavailable

11

Toro 30008

Cup, Cushion

$

$

Currently unavailable

12

Toro 30009

Cushion, Rubber

$

$

Currently unavailable

13

Toro 30010

Washer, Thrust

$

$

Currently unavailable

14

Toro 30011

Nut, Securing

$

$

Currently unavailable

15

Toro 31590

Cap Assy., Drive end (Incl. bearing)

$

$

Currently unavailable

16

Toro 31591

Washer, Spacing (.005 thick)(Use as required)

$

$

Currently unavailable

16

Toro 30014

Washer, Spacing (.010 thick)(Use as required)

$

$

Currently unavailable

16

Toro 30015

Washer, Spacing (.02 thick)(Use as required)

$

$

Currently unavailable

17

Toro 31592

Washer, Nylon

$

$

Currently unavailable

18

Toro 31593

Armature

$

$

Currently unavailable

19

Toro 32464

Setscrew

$

$

Currently unavailable

20

Toro 32467

Rectifier Assy. (Incl. 2 of each of Nos. 23 24; 1 of No.30)

$

$

Currently unavailable

21

Toro 32450

Cord, Extension (10-)

$

$

Currently unavailable

22

Toro 650647

Screw, Sems

$

$

Currently unavailable

23

Toro 32466

Brush Spring Kit (Incl. 2 of No. 24)

$

$

Currently unavailable

24

Toro 30021

Spring, Brush

$

$

Currently unavailable

25

Toro 30063

Screw

$

$

Currently unavailable

26

Toro 32465

Cap Assy., Commutator end

$

$

Currently unavailable

27

Toro 30012

Washer, Lock

$

$

Currently unavailable

28

Toro 30023

Bolt, Thru

$

$

Currently unavailable

29

Toro 32453

Decal, Caution

$

$

Currently unavailable

30

Toro 31604

Switch, Toggle

$

$

Currently unavailable
