100-9600 - Toro Recycler Kit for Z Master 62" Side-Discharge Mower RECYCLER ASSEMBLY Parts Diagram

Recycler Kit for Z Master 62" Side-Discharge Mower

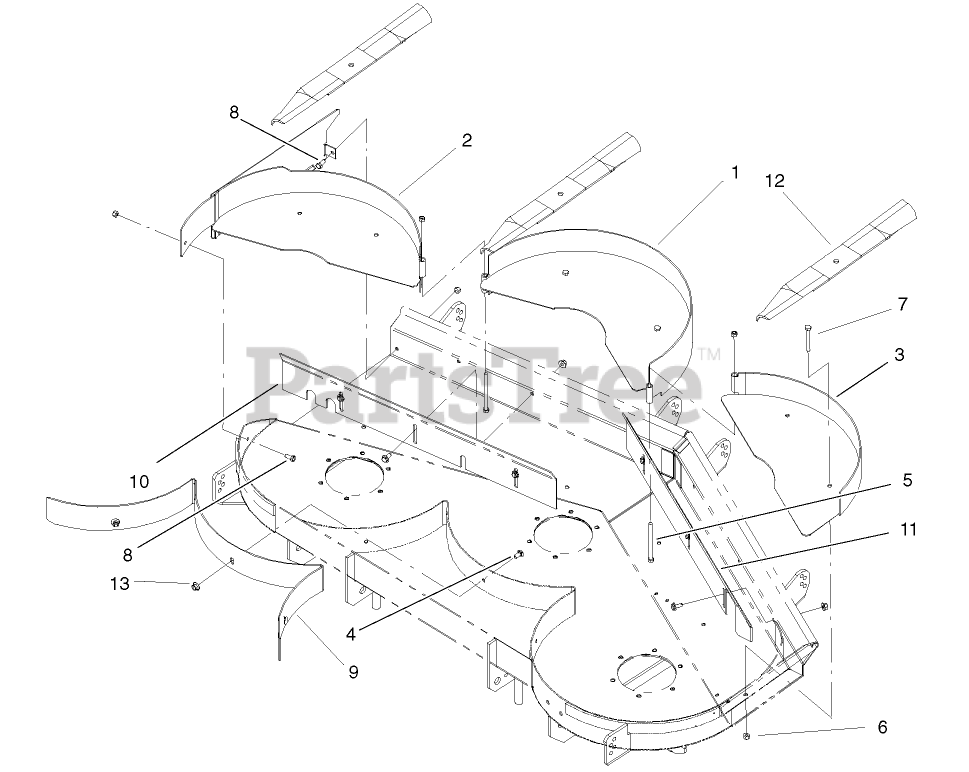

RECYCLER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-9608-03

CENTER BAFFLE ASM

$564.99

$

Usually ships in 3-6 days

0

2

Toro 100-9607-03

RIGHT BAFFLE ASM

$483.99

$

Usually ships in 3-6 days

0

3

Toro 100-9609-03

LEFT BAFFLE ASM

$483.99

$

Usually ships in 3-6 days

0

4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 17

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 100-9680-03

BAFFLE-CENTER

$192.99

$

Usually ships in 3-6 days

0

10

Toro 104-4568-03

BAFFLE - FRONT, RH

$176.99

$

Usually ships in 3-6 days

0

11

Toro 104-4567-03

BAFFLE - FRONT, LH

$176.99

$

Usually ships in 3-6 days

0

12

Toro 100-9659

BLADE
(Superseded to 100-9659-03)

$41.99

$

Usually ships in 3-6 days

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
