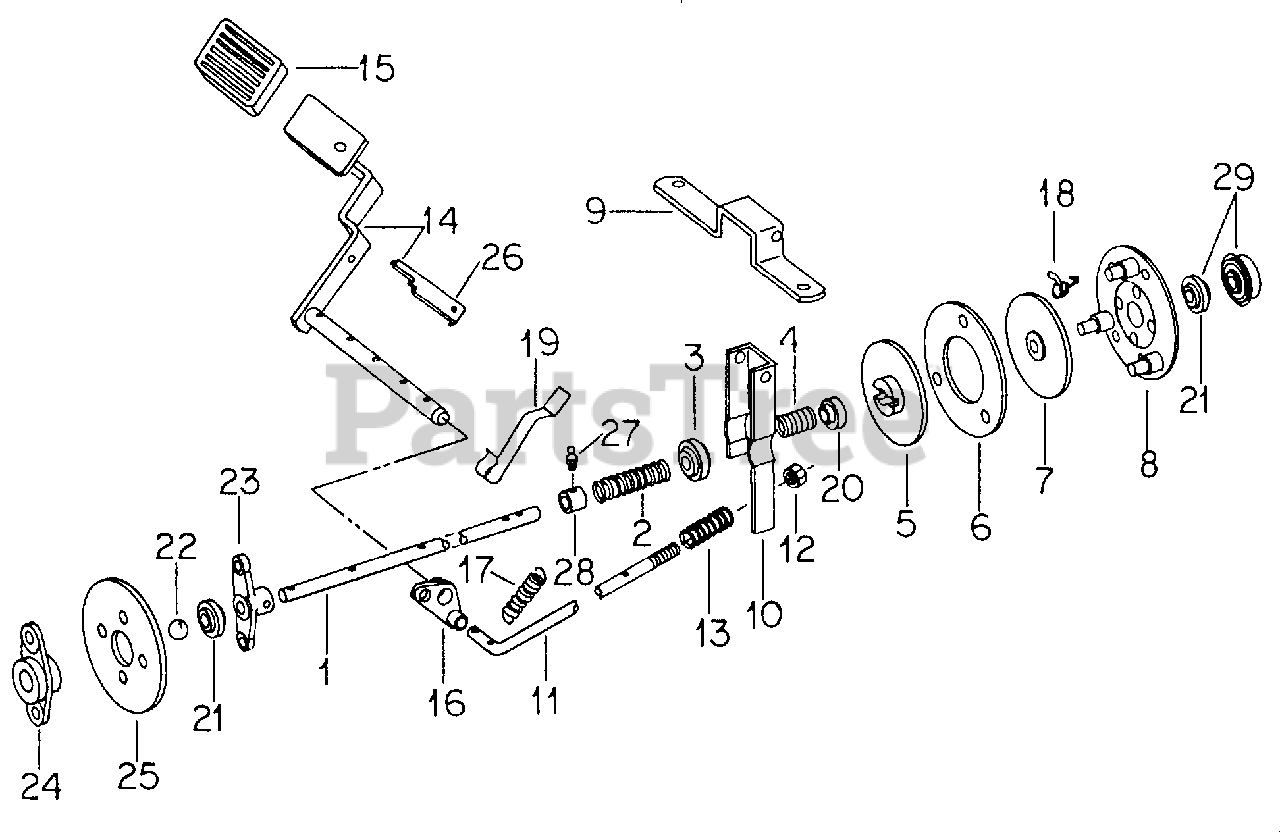

1000 (2050550U) - Cub Cadet Garden Tractor Clutch Parts Diagram

Garden Tractor

Clutch Parts Diagram

  • Title

1

Cub Cadet IH-61454-C95

Shaft w/Tag, Clutch Drive

$

$

Not available

Cub Cadet 715-3014

Pin, 1/4 X 1-1/8 Hv Coiled Spring
(Superseded to 915-3014)

$5.99

$

In Stock, only 4 left!

0

2

Cub Cadet 732-3016

Spring, Loading
(Superseded to 932-3016)

$45.99

$

In Stock, Qty 16

0

Cub Cadet 736-0156

Washer, 21/32 X 1 X 11 Ga

$3.99

$

In Stock, Qty 13

0

3

Cub Cadet IH-391237-R91

Bearing, Throwout Ball
(Superseded to 941-3056)

$99.99

$

In Stock, Qty 10

0

4

Cub Cadet 732-3017

Spring, Teasing

$7.49

$

In Stock, Qty 20+

0

5

Cub Cadet 703-0213

Hub Assy, Pressure Plate
(Superseded to 903-0213)

Note: (Optional w/IH-63815-C1)

$176.99

$

In Stock, only 4 left!

0

Cub Cadet IH-63815-C1

Hub Assy, Pressure Plate
(Superseded to 903-0213)

Note: (Optional w/703-0213)

$176.99

$

In Stock, only 4 left!

0

6

Cub Cadet 761-3002

Disc, Clutch Friction
(Superseded to 961-3002)

$87.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0214

Hub Assy, Pressure Plate Locating
(Superseded to 903-0214)

$113.99

$

In Stock, only 4 left!

0

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0114)

$8.49

$

In Stock, Qty 9

0

8

Cub Cadet IH-117591-C1

Plate Assy, Driving

Note: (Replaces IH-106545-C93 on tractors w/Serial No. 612807 & below by also ord

$237.99

$

In Stock, only 2 left!

0

9

Cub Cadet IH-547629-R1

Hanger Assy, Clutch Lever

$117.99

$

In Stock, only 1 left!

0

Cub Cadet 710-3100

Screw, 5/16-18 X 3/4 Hex Hd Cap

$

$

Not available

10

Cub Cadet IH-61461-C1

Lever, Release
(Superseded to IH-61461-C2)

$105.99

$

In Stock, only 4 left!

0

Cub Cadet 711-3044

Pin, 3/8 X 3-11/16 Std Hd

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-25708-R1

Washer, 13/32 X 3/4 X 11 Ga Znd
(Superseded to 936-0275)

$

$

Not available

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Znd Cot

$4.49

$

In Stock, Qty 16

0

11

Cub Cadet IH-544133-R3

Rod, Clutch Release

Note: (Tractors w/caliper brakes)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-117338-C2

Rod, Clutch Release

Note: (Tractors w/internal wet brakes)

$

$

Not available

Cub Cadet 736-0140

Washer, 13/32 X 3/4 X 16 Ga Znd

$6.99

$

In Stock, Qty 9

0

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Znd Cot

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 712-3061

Nut, 3/8-24 Cdp Hex Nylon Insert

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 732-3005

Spring, Clutch Release Rod
(Superseded to 932-3005)

$8.99

$

In Stock, only 4 left!

0

Cub Cadet IH-103341

Washer, 13/32 X 13/16 X .065

$

$

Not available

14

Cub Cadet 759-3110

Pedal Assy, Clutch

$

$

Not available

Cub Cadet 715-3018

Pin, 1/4 X 1-3/8 Med Coiled Spring
(Superseded to 915-3000)

$

$

Not available

15

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

$18.99

$

In Stock, Qty 9

0

16

~NLA

Arm, Clutch & Brake Pedal

Note: (Tractors w/caliper brakes)

$

$

Not available

~NLA

Arm, Clutch & Brake Pedal

Note: (Tractors w/internal wet brakes)

$

$

Not available

Cub Cadet 715-0114A

Pin, 1/4 X 1-1/2 Hv Coiled Spring
(Superseded to 915-0114)

$8.49

$

In Stock, Qty 9

0

17

Cub Cadet 732-3015

Spring, Pedal Return
(Superseded to 932-3015)

$11.99

$

In Stock, Qty 15

0

18

Cub Cadet 732-3018

Spring, Clutch Driving Disc

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 732-3000

Spring, Safety Switch
(Superseded to 932-3000)

$

$

Not available

Cub Cadet 726-3000

Nut, Spring

$

$

Not available

20

Cub Cadet 711-3040

Spacer, Spring
(Superseded to 911-3040)

$23.99

$

In Stock, Qty 6

0

21

Cub Cadet 741-3004

Bushing, Ball
(Superseded to 941-3004)

$47.99

$

In Stock, Qty 15

0

22

Cub Cadet 723-3022

Ball, 5/8 Cr Stl

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet 748-3001

Arm, Coupling

$

$

Not available

24

Cub Cadet 719-3027

Coupling, Drive Shaft
(Superseded to 919-3027)

$109.99

$

In Stock, only 1 left!

0

25

Cub Cadet 722-3000

Disc, Flex Coupling

$26.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, 13/32 X 13/16 X 16 Ga C-Z

$6.99

$

In Stock, Qty 9

0

Cub Cadet 710-3005

Screw, 3/8-16 X 1-1/4 Znd Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3000

Nut, 3/8-16 Cdp Hex Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 715-3000

Pin, 1/4 X 1-3/8 Hv Coiled Spring

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 703-0006

Ratchet

$

$

Not available

~NLA

Rivet, 1/4 X 11/16 F-Hd Solid

$

$

Not available

27

Cub Cadet IH-19625-R91

Fitting, 1/4-28 Taper Drive Tread Lube
(Superseded to 737-3001)

Note: (Serial No. 612808 & above)

$11.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 703-0600

Bushing, Lubricating

Note: (Serial No. 612808 & above)

$87.99

$

In Stock, only 1 left!

0

29

Cub Cadet IH-126205-C1

Hub Assy, Pilot
(Superseded to IH-126205-C2)

Note: (Serial No. 612808 & above)

$128.99

$

In Stock, only 2 left!

0

~NLA

Grease, Powdered Metal Bushing

$

$

Not available
