1000 E - Weed Eater Weed 'n Edge Edger Attachment, Type 1 Edger Attachment Assembly Type 1 Parts Diagram

Weed 'n Edge Edger Attachment, Type 1

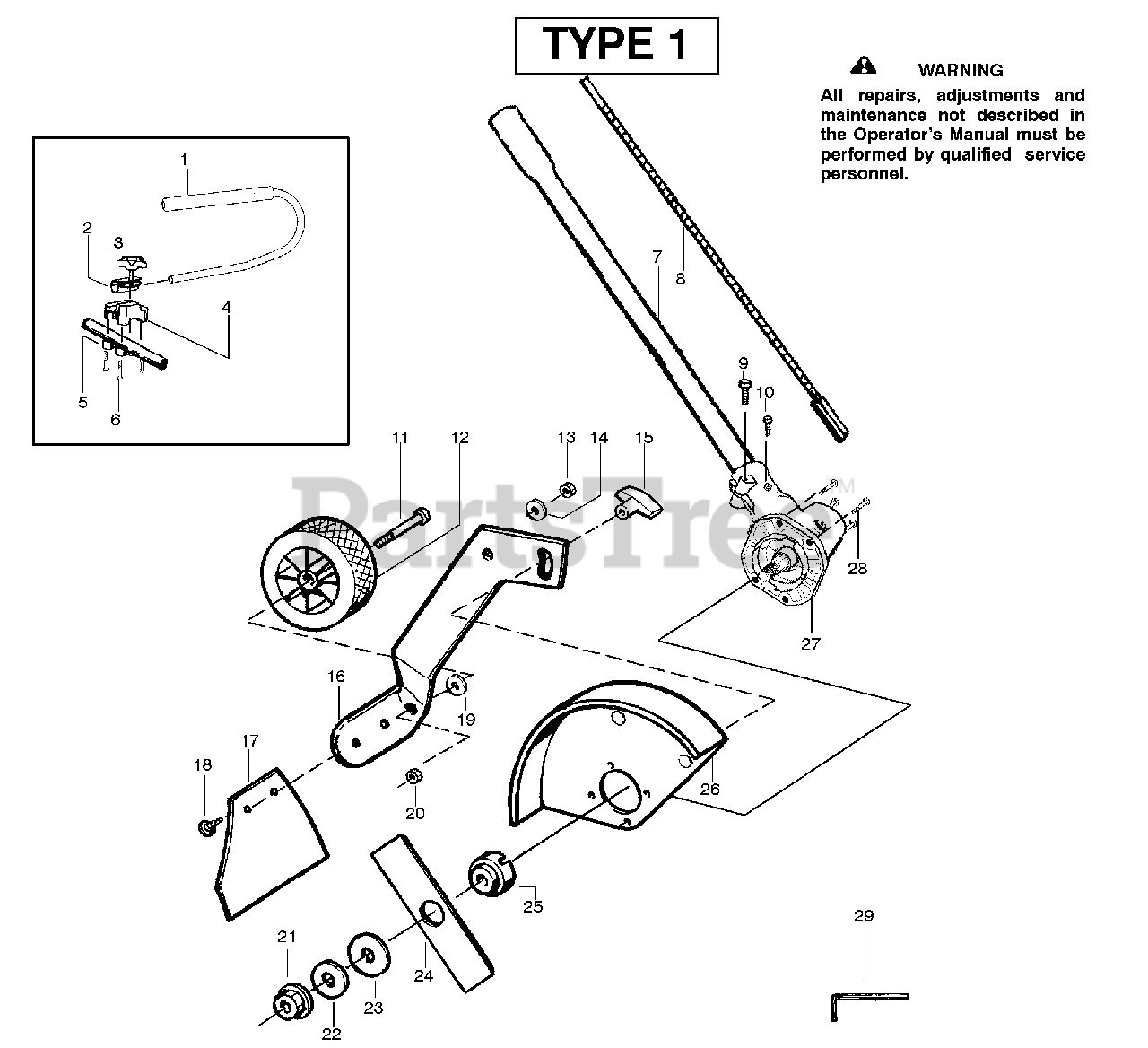

Edger Attachment Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530071394

Kit - Handlebar

Note: incl. grip,cap,decal

$12.99

$

Usually ships in 3-10 days

0

2

Poulan 530095970

Clamp - Handlebar
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

3

Poulan 530016336

Knob
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

4

Poulan 530095971

Base - Clamp
(Superseded to 530071868)

$8.99

$

In Stock, Qty 11

0

5

Poulan 530071684

Kit - Clamp - Tube
(Superseded to 530071868)

Note: incl. #6

$8.99

$

In Stock, Qty 11

0

6

Poulan 530015770

Screw

$

$

Not available

7

Poulan 530096000

Assy. - Driveshaft
(Superseded to 530071937)

$27.99

$

In Stock, only 1 left!

0

8

Poulan 530096183

Flexshaft - Split boom

$

$

Not available

9

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

10

Poulan 530016224

Screw - Alignment

$4.99

$

In Stock, Qty 5

0

11

Poulan 530015981

Bolt - Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530095125

Wheel - 4"

Note: rubber

$8.99

$

In Stock, only 1 left!

0

13

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

14

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530092059

Knob

$9.99

$

In Stock, only 1 left!

0

16

Poulan 530053009

Bracket - Adj. Wheel

$12.99

$

Usually ships in 3-10 days

0

17

Poulan 530071251

Kit - Mud Flap

Note: incl. #18

$7.49

$

In Stock, only 1 left!

0

18

Poulan 530053012

Fastener - Mud Flap

$3.99

$

In Stock, only 1 left!

0

19

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

21

Poulan 530015793

Nut - Flange

Note: L.H.

$6.49

$

In Stock, Qty 11

0

22

Poulan 530016240

Washer - Belleville

$6.49

$

In Stock, Qty 5

0

23

Poulan 530015792

Washer - Flat

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 530053007

Blade

$4.99

$

In Stock, only 2 left!

0

25

Poulan 530054623

Dustcup

$10.99

$

In Stock, only 1 left!

0

26

Poulan 530071384

Kit - Edger Guard
(Superseded to 530071930)

$21.99

$

Usually ships in 3-10 days

0

27

Poulan 530071586

Kit - Gearbox

$

$

Not available

28

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

29

Poulan 530031159

Wrench - Hex

Note: 5/32"

$4.99

$

In Stock, only 1 left!

0

Poulan 530163557

Manual

Note: Not Shown

$

$

Not available

Poulan 530095894

Hanger - Attachment

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

Poulan 545005908

Decal - Shaft Warning

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530053138

Decal - Guard Warning
(Superseded to 545074501)

Note: Not Shown

$

$

Not available
