1000Z (5901000) - Ferris 1000Z Series 48" Zero-Turn Mower, 21hp Kohler (SN: 2899 & Above) Tire & Wheel Group - S/N: 2899 and above Parts Diagram

1000Z Series 48" Zero-Turn Mower, 21hp Kohler

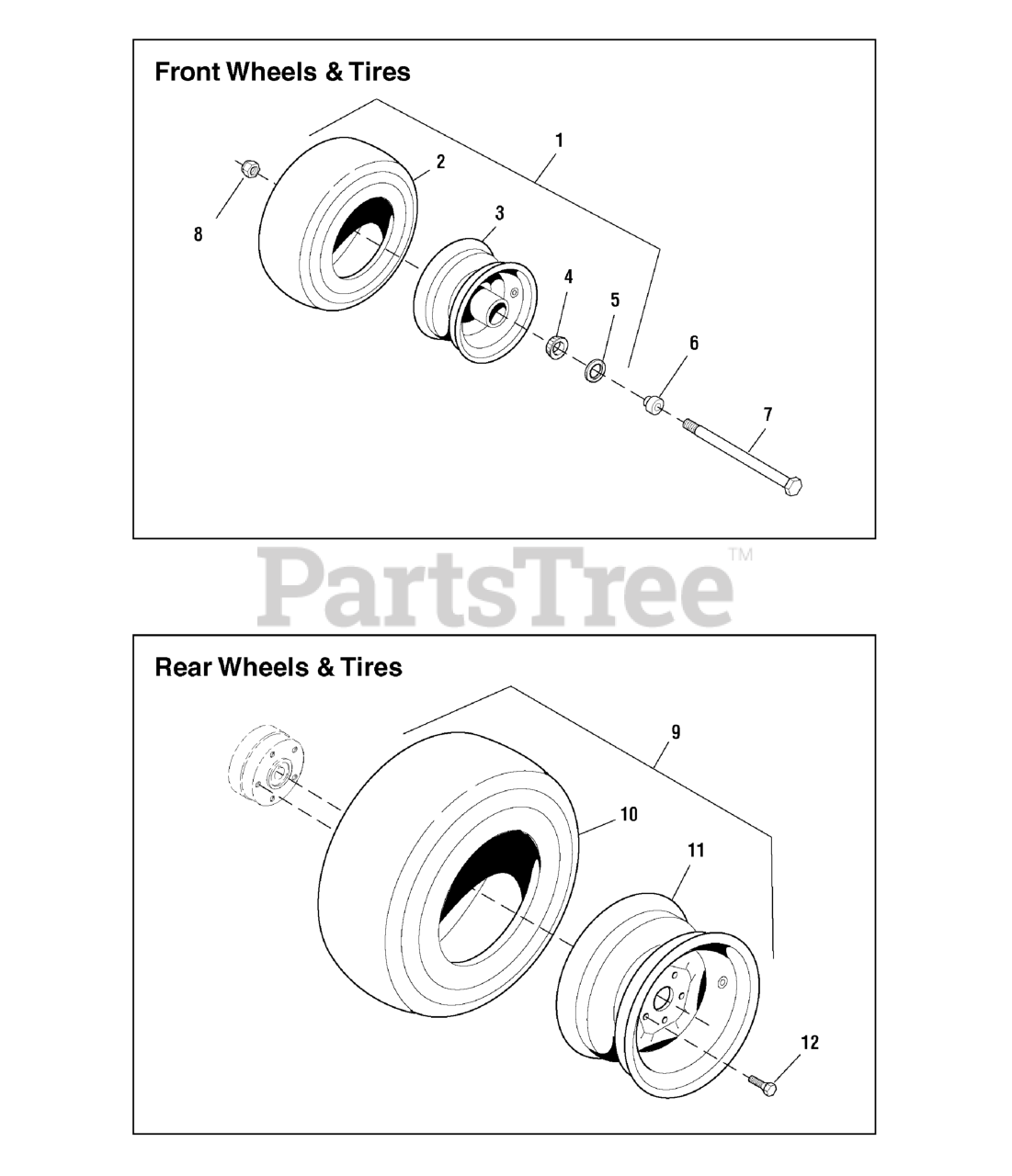

Tire & Wheel Group - S/N: 2899 and above Parts Diagram

  • Title

1

Ferris 5022631S

WHEEL & TIRE ASSEMBLY, 13 x 5.0 x 6, Complete
(Superseded to 5022631SSM)

Note: (Includes Ref No. 2 - 5)

$172.99

$

In Stock, only 3 left!

0

2

Ferris 5022029X1

TIRE, Front, 13 x 5.0 x 6

$112.99

$

Usually ships in 2-12 days

0

3

Ferris 5022631SX1

WHEEL ASSEMBLY, for 13 x 5.0 x 6 Tire, Complete
(Superseded to 5022631SX1SM)

Note: (Includes Ref No. 4 & 5)

$105.99

$

Usually ships in 2-12 days

0

4

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$13.99

$

In Stock, Qty 20+

0

5

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

6

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$11.99

$

In Stock, Qty 7

0

7

Ferris 5025017X60

BOLT, 1/2-13 x 7-1/2
(Superseded to 5025488X60FS)

$15.99

$

Usually ships in 2-12 days

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5022646S

WHEEL & TIRE ASSEMBLY, 23 x 9.5 x 12, Complete
(Superseded to 5022646SSM)

Note: (Includes Ref No. 10 & 11)

$

$

Not available

10

Ferris 5022646SX1

TIRE, Rear, 23 x 9.5 x 12

$216.99

$

Usually ships in 2-12 days

0

11

Ferris 5022646SX2

WHEEL ASSEMBLY, for 23 x 9.5 x 12 Tires

$

$

Currently unavailable

12

Ferris 5022215

WHEEL LUG, 1/2 x 1-5/8
(Superseded to 5022215SM)

$10.99

$

Usually ships in 2-12 days

0
