1000Z (5901003) - Ferris 1000Z Series 61" Zero-Turn Mower, 27hp Kohler (SN: 2898 & Below) Floor Pan & Brake Cover Group Parts Diagram

1000Z Series 61" Zero-Turn Mower, 27hp Kohler

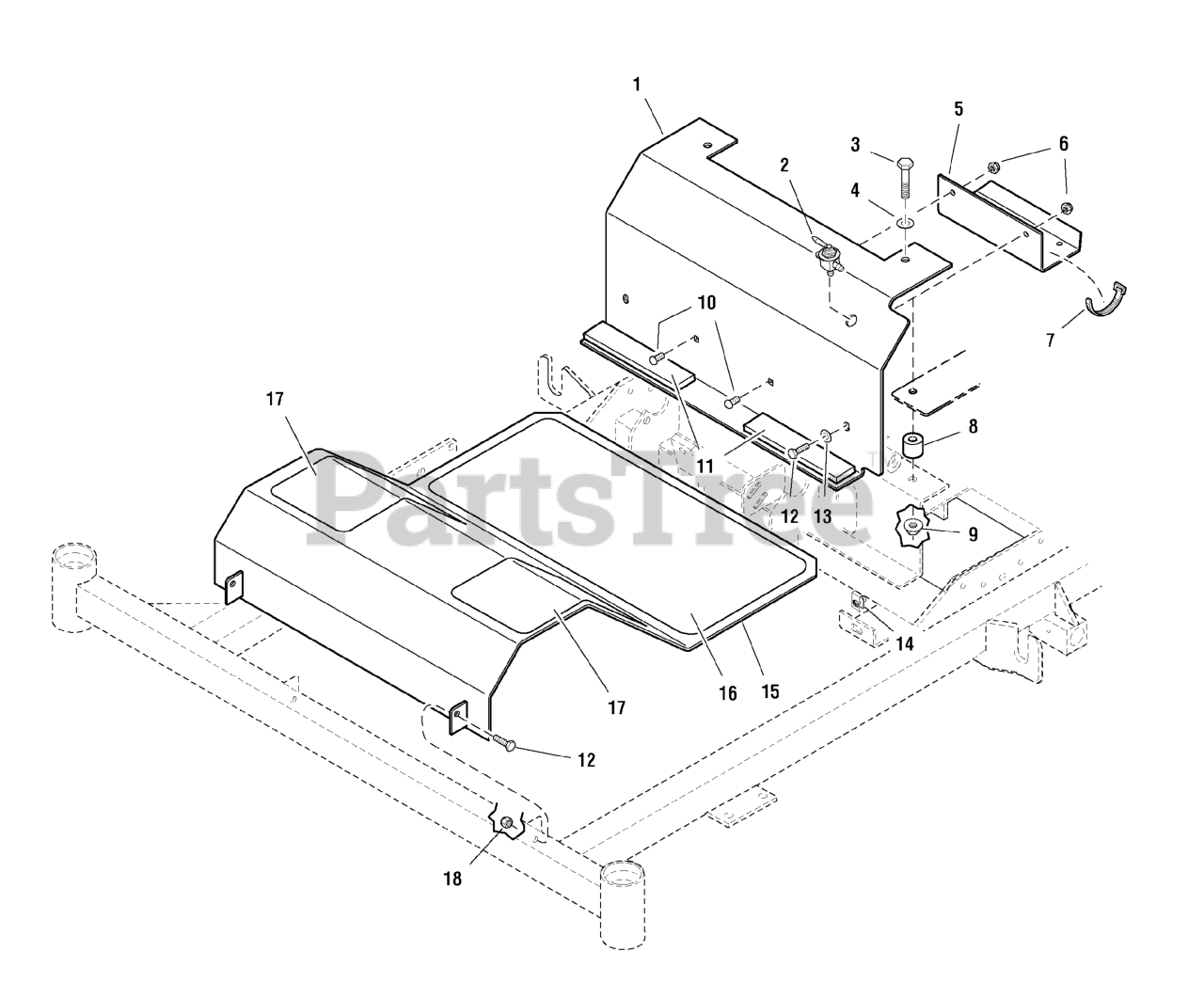

Floor Pan & Brake Cover Group Parts Diagram

  • Title

1

Ferris 5049240B

BRAKE COVER PANEL ASSEMBLY

$

$

Currently unavailable

2

Ferris 5022030

VALVE, Fuel Shut Off

$45.99

$

Usually ships in 2-12 days

0

3

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5049181B

FUEL LINE GUIDE

$

$

Currently unavailable

6

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 15

0

7

Ferris 5021029

TIE WRAP, 11"
(Superseded to 5021029SM)

$

$

Not available

8

Ferris 5047125

SPACER, .39 x 1.00 x .88
(Superseded to 5047125SM)

$8.49

$

In Stock, Qty 9

0

9

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 20+

0

13

Ferris 5025155

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 12

0

15

Ferris 5049126B

FLOOR PLATE

$239.99

$

Usually ships in 2-12 days

0

16

Ferris 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

Note: WAS 5044873

$72.99

$

Usually ships in 2-12 days

0

17

Ferris 5045915

SAFETY WALK
(Superseded to 5101010YP)

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0
