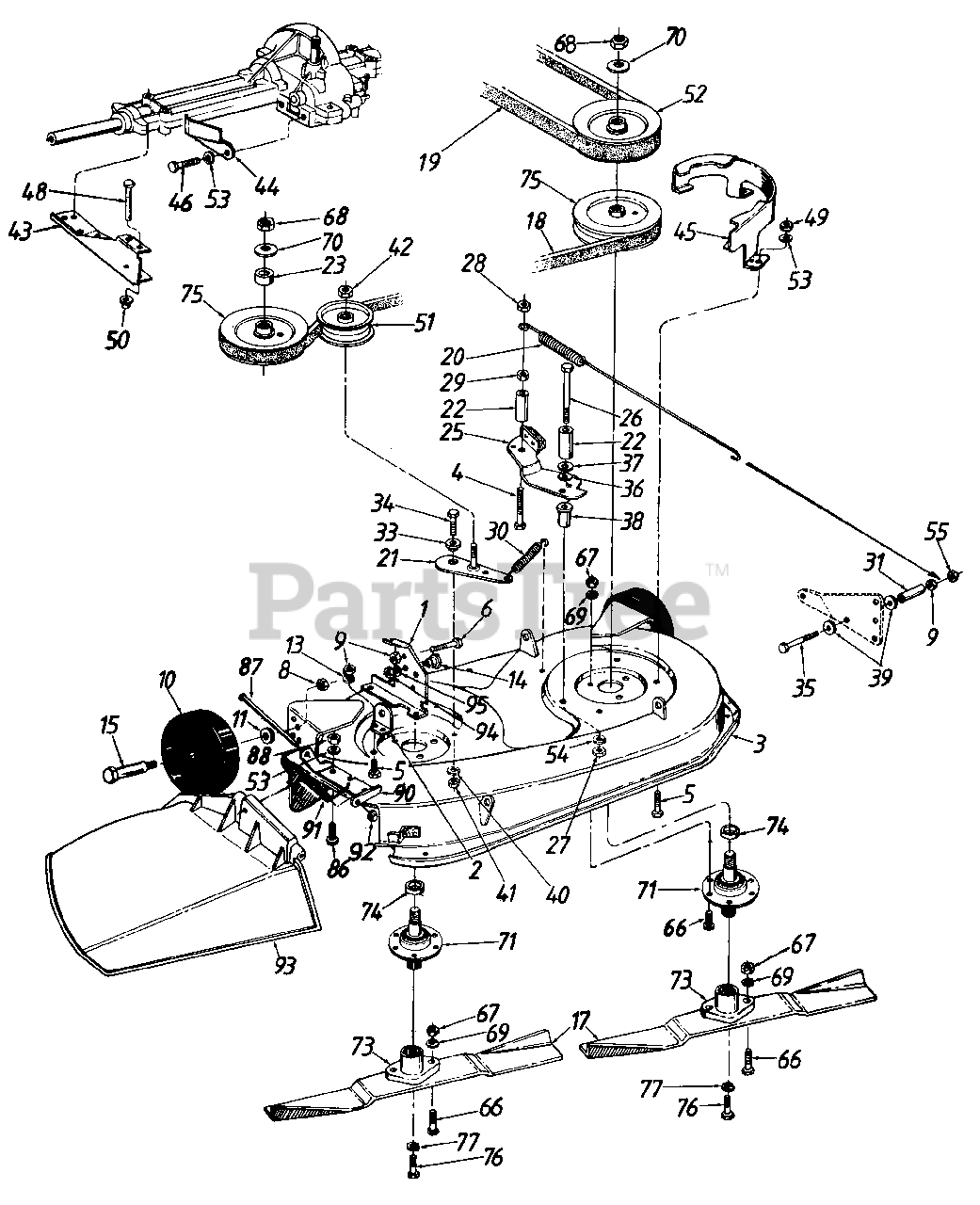

1002 (131-522D100) - Cub Cadet Rear-Engine Riding Mower (1991) Parts For 32" Deck Parts Diagram

Rear-Engine Riding Mower

Parts For 32" Deck Parts Diagram

  • Title

1

Cub Cadet 17094C

Deck Engagement Brkt.

$

$

Currently unavailable

2

Cub Cadet 17096

Rear Deck Brkt.-R.H.

$

$

Currently unavailable

3

Cub Cadet 17102

32" Deck Ass'y.

$

$

Not available

Cub Cadet 17242

32" Deck Ass'y. Comp.

$

$

Currently unavailable

4

Cub Cadet 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

5

Cub Cadet 710-0285

Hex Bolt 1/4-20 x .62" Lg.

$

$

Currently unavailable

6

Cub Cadet 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0181

Hex L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0105

Bell-Wash. .38" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

14

Cub Cadet 738-0143

Shld. Bolt .500" Dia. x .336"

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

17

Cub Cadet 742-0487A

High-Lift Blade 3" x 16.28"

$

$

Not available

Cub Cadet 742-0498

Hard-Coated Blade 3" x 16.28" Lg. (Optional)

$

$

Not available

18

Cub Cadet 754-0290

V-Belt
(Superseded to 954-0290)

$

$

Not available

19

Cub Cadet 754-0347

V-Belt
(Superseded to 954-0347)

$

$

Not available

20

Cub Cadet 732-0575

Extension Spring 15-5/8" Lg.

$

$

Not available

21

Cub Cadet 17241

Idler Brkt. Ass'y.

$

$

Not available

22

Cub Cadet 750-0470

Spacer 5/16" I.D. x 1/2" O.D. x 31/32"

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 750-0732

Spacer .752" I.D. x 1.25" O.D.

$

$

Not available

25

Cub Cadet 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)

$48.99

$

In Stock, only 2 left!

0

26

Cub Cadet 710-3056

Hex Bolt 5/16-18 x 3.25" Lg.

$9.49

$

In Stock, only 1 left!

0

27

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

28

Cub Cadet 712-0117

Hex L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

29

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 732-0428A

Extension Spring 4.35" Lg.

$

$

Not available

31

Cub Cadet 750-0583

Spacer 1/4" I.D. x 3/8" O.D. x 1-5/16" Lg.

$

$

Not available

33

Cub Cadet 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 17

0

34

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0102

Hex Bolt 1/4-20 x 2.5" Lg.
(Superseded to 710-1122)

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0232

Wave Washer .53" l.D.

$4.49

$

In Stock, Qty 18

0

37

Cub Cadet 748-0234

Shld. Spacer .51 " I.D. x .27"

$4.49

$

In Stock, Qty 11

0

38

Cub Cadet 750-0702

Spacer .312" I.D. x 1.46" Lg.

$

$

Not available

39

Cub Cadet 736-0176

Flat Wash. 1/4"

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0169

L-Wash. 3/8" l.D.

$3.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-3017

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0241

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 15625B

Lower Outside Belt Guard

Variations

Cub Cadet 15625B-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

44

Cub Cadet 17117

Lower Inside Belt Guard

$

$

Currently unavailable

45

Cub Cadet 17164

Belt Guard Deck-R.H.

$

$

Not available

46

Cub Cadet 710-0258

Hex Bolt 1/4-20 X .6211 Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 710-1047

Pin 1/4 Dia. x 2.5n Lg.

$

$

Currently unavailable

49

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

50

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 756-0515

Flat Idler Pulley

$

$

Not available

52

Cub Cadet 756-0517

5n Dia. Pulley

$

$

Not available

53

Cub Cadet 736-0270

Bell-Wash..265" I.D.

$3.99

$

In Stock, Qty 15

0

54

Cub Cadet 736-0242

Bell-Wash. 5/16" l.D.

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

66

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1" Lg.

$3.99

$

In Stock, Qty 12

0

67

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

68

Cub Cadet 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

69

Cub Cadet 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0317

Bell-Wash. 5/8" I.D.

$7.49

$

In Stock, Qty 20+

0

71

Cub Cadet 717-0900

Blade Spindle Ass'y. Comp.
(Superseded to 917-0900A)

$

$

Not available

73

Cub Cadet 748-0300

Blade Adapter

$12.99

$

In Stock, Qty 17

0

74

Cub Cadet 750-0731

Spacer

$

$

Currently unavailable

75

Cub Cadet 756-0516

5n Dia. Pulley

$

$

Not available

76

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

77

Cub Cadet 736-0217

L-Wash. 3/8" l.D. H.D.

$3.99

$

In Stock, Qty 13

0

86

Cub Cadet 710-0258

Hex Bolt 1/4-20 X .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

87

Cub Cadet 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.49

$

In Stock, only 3 left!

0

88

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

90

Cub Cadet 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$21.99

$

In Stock, Qty 5

0

91

Cub Cadet 732-0602

Torsion Spring
(Superseded to 732-0602A)

$11.99

$

In Stock, Qty 5

0

92

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref. Nos. 87, 90, 91, 92, 93)

$77.99

$

In Stock, Qty 20+

0

94

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

95

Cub Cadet 736-0169

L-Wash. 3/8" l.D.

$3.49

$

In Stock, Qty 20+

0
