10030 (31AH5LQ5766) - Troy-Bilt Storm 30" Snow Thrower (2005) General Assembly Parts Diagram

Storm 30" Snow Thrower

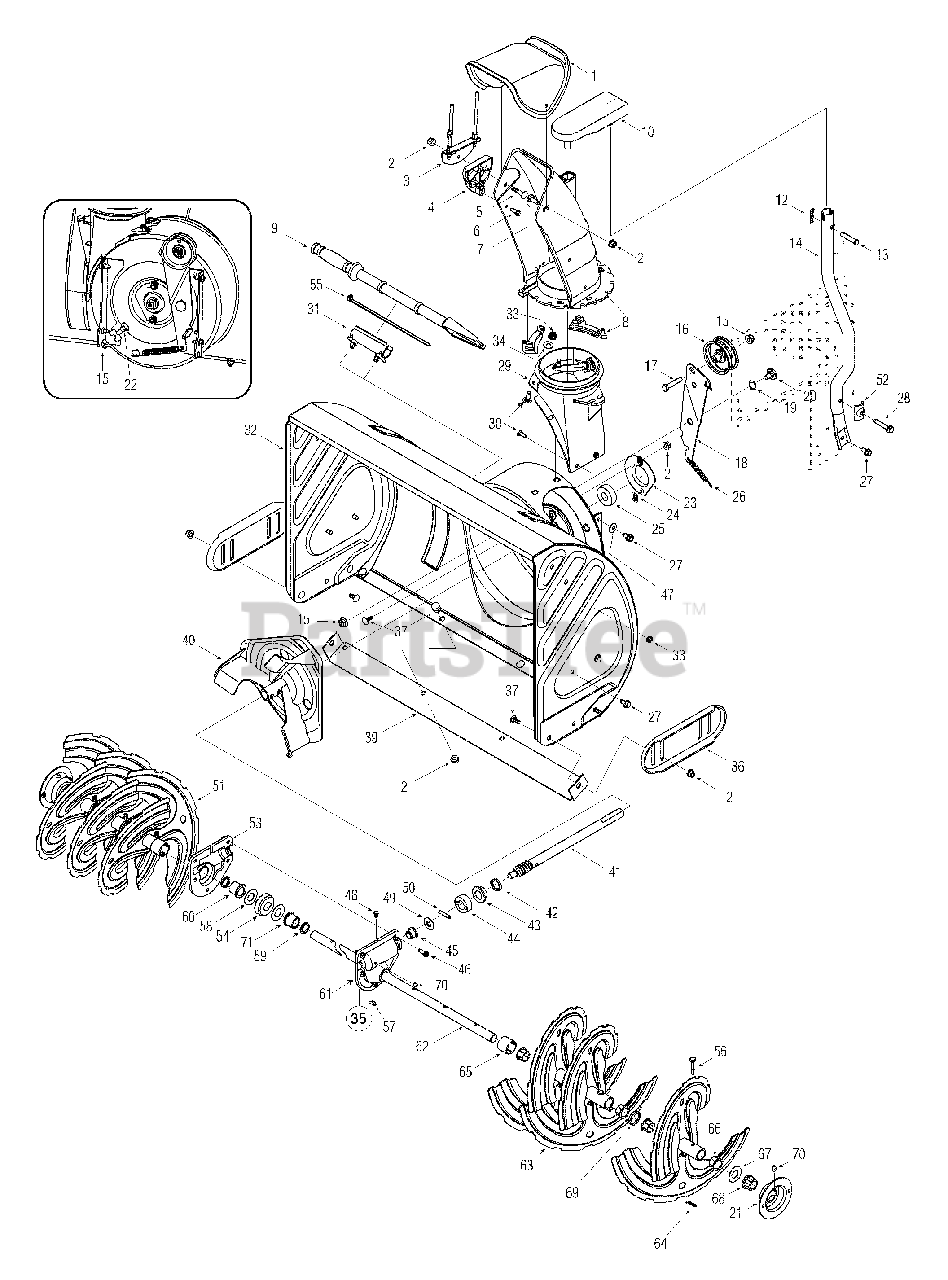

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 731-04427A

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-1313C

Chute Tilt Cable Guide

$11.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

6

Troy-Bilt 710-0895

Hi-Lo S crew, 1/4-15x 0.75

$5.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

8

MTD 631-04132

Lower Chute Assembly
(Superseded to 931-04132)

$

$

Not available

9

Troy-Bilt 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$18.99

$

In Stock, Qty 7

0

10

Troy-Bilt 753-04875

Kit, Chute Control Assembly
(Superseded to 753-04875P)

$106.99

$

In Stock, Qty 6

0

12

Troy-Bilt 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 711-0415

Clevis Pin

$4.49

$

In Stock, Qty 20+

0

14

MTD 749-04155

Chute Support Tube

Variations

Troy-Bilt 749-04155-0606

SUPPORT TUBE - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 749-04155-0638

SUPPORT TUBE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-04155-0662

SUPPORT TUBE - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 749-04155-0716

SUPPORT TUBE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

15

Troy-Bilt 712-04065

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 756-0981A

Flat Idler Pulley
(Superseded to 756-04224)

$24.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-0347

Hex Bolt, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 790-00080

Auger Idler Bracket
(Superseded to 790-00080D)

Variations

Cub Cadet 790-00080

USE 790-00080C BRACKET-AUGER - POWDER BLACK

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 736-0174

Wave Washer

$6.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 738-0281

Shoulder Screw

$9.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 790-00138

Bearing Housing
(Superseded to 790-00138A-0637)

Variations

Cub Cadet 790-00138A-0637

Bearing Housing, 1" Hex - POWDER BLACK

$15.99

$

In Stock, only 2 left!

0

$15.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 738-0143

Shoulder Screw

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, only 1 left!

0

24

Troy-Bilt 726-04012

Push Nut

$6.99

$

In Stock, Qty 12

0

25

Troy-Bilt 741-0309

Ball Bearing
(Superseded to 941-0309)

$69.99

$

In Stock, Qty 7

0

26

Troy-Bilt 732-0611

Extension Spring
(Superseded to 932-0611)

$6.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 710-0726

AB Screw, 5/16-12 x 0.75

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0909A

TT Screw, 5/16-18 x 1.750

$9.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 731-04705

Chute Adapter
(Superseded to 731-04705D)

$25.99

$

In Stock, Qty 5

0

30

Troy-Bilt 710-0703

Carriage Screw, 1/4-20 x 0.75

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 731-2635

Clean-out Tool M tg. Bracket
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 684-04080

Auger Housing Assembly: 30"

Variations

Troy-Bilt 684-04080-0716

HOUSING-AUGER ASM - CUB YELLOW-99 (0716)

$495.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04080-0606

HOUSING-AUGER ASM - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 684-04080-0638

HOUSING-AUGER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 684-04080-0662

HOUSING-AUGER ASM - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 684-04080-0665

30" AUGER HOUSING (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 684-04080-0667

HOUSING-AUGER ASM - MIDNIGHT BLUE (0667)

$

$

Not available

Troy-Bilt 684-04080-0668

30" AUGER HOUSING (MOSS GREEN) - MOSS GREEN (0668)

$

$

Not available

Troy-Bilt 684-04080-0691

HOUSING-AUGER ASM - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 684-04080-0709

HOUSING-AUGER ASM - MASTERCRAFT GREEN (0709)

$

$

Not available

$495.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0463

Flat Washer

$4.49

$

In Stock, only 2 left!

0

35

Troy-Bilt 618-04194

Gearbox Assembly Complete
(Superseded to 918-04165B)

$416.99

$

In Stock, only 4 left!

0

36

Troy-Bilt 790-00091

Slide Shoe

Variations

Troy-Bilt 790-00091-0638

Snow Slide Shoe, Red - MTD/TROY-BILT RED

$29.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00091-0637

Snow Slide Shoe, Black - POWDER BLACK

$29.99

$

In Stock, Qty 6

0

Troy-Bilt 790-00091-0606

Snow Slide Shoe, Orange - MAJESTIC ORANGE

$26.99

$

In Stock, Qty 18

0

Troy-Bilt 790-00091-4033

Snow Slide Shoe, Flint - FLINT MICA

$26.99

$

In Stock, only 2 left!

0

Troy-Bilt 790-00091-0691

Snow Slide Shoe, Black - BLACK JACK

$26.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00091-0650

Snow Slide Shoe - RED METALLIC

$26.99

$

In Stock, only 4 left!

0

Troy-Bilt 790-00091-4021

Snow Slide Shoe, Yellow - CUB YELLOW 2

$26.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00091-0662

Snow Slide Shoe, Gray - OYSTER GRAY

$26.99

$

In Stock, only 1 left!

0

Troy-Bilt 790-00091-0709

Snow Slide Shoe, Dark Green - MASTERCRAFT GREEN

$26.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00091-0667

SLIDE SHOE - MIDNIGHT BLUE

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 710-0451

Carriage Bolt

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 790-00119

Shave Plate

Variations

Troy-Bilt 790-00119-0637

Shave Plate, 30" Powder Black - POWDER BLACK

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-4033

Shave Plate, 30" - FLINT MICA

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-0638

Shave Plate, 30" - MTD/TROY-BILT RED

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-0606

Shave Plate, 30" - MAJESTIC ORANGE

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-0691

Shave Plate, 30" - BLACK JACK

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-0667

Shave Plate, 30" - MIDNIGHT BLUE

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-0665

Shave Plate, 30" - YARDMAN GREEN

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-4021

Shave Plate, 30" - CUB YELLOW 2

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-0689

Shave Plate, 30" - POLO GREEN

$37.99

$

In Stock, Qty 5

0

Troy-Bilt 790-00119-0709

PLATE-SHAVE 30" - MASTERCRAFT GREEN

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00119-4062

PLATE-SHAVE 30" - COOL GRAY (4062)

$37.99

$

In Stock, Qty 5

0

$30.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 684-04057

Impeller Assembly
(Superseded to 684-04057C-0637)

Variations

Troy-Bilt 684-04057-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)

$68.99

$

In Stock, Qty 8

0

$68.99

$

In Stock, Qty 8

0

41

Troy-Bilt 717-04126

Worm Shaft
(Superseded to 917-04126)

$73.99

$

In Stock, Qty 11

0

42

Troy-Bilt 721-0327

Oil Seal

$6.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 741-0662

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 718-04071

Thrust Collar

$7.49

$

In Stock, Qty 16

0

45

Troy-Bilt 741-0663

Flange Bearing

$8.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-0642

TT Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 736-0242

Bell Washer

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 721-0325

Plug

$4.49

$

In Stock, only 1 left!

0

49

Troy-Bilt 736-3084

Flat Washer

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 715-04021

Dowel Pin

$3.99

$

In Stock, Qty 13

0

51

Troy-Bilt 684-04108

Spiral Assembly - RH
(Superseded to 684-04108A)

Variations

Troy-Bilt 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0499

Auger Spiral Assembly, RH - CUB BEIGE (0499)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-4028

Auger Assembly, 21" RH - SEARS YELLOW (4028)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04108-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04108-0629

Auger Spiral Assembly, RH - SILVER FLAKE (0629)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-4044

Auger Spiral Assembly, RH - CRAFTSMAN RED (4044)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0650

Auger Spiral Assembly, RH - RED METALLIC (0650)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0662

Auger Spiral Assembly, RH - OYSTER GRAY (0662)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0674

Auger Spiral Assembly, RH - YARDMAN YELLOW (0674)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0709

SPIRAL ASM-AUGER RH - MASTERCRAFT GREEN (0709)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0716

Auger Spiral Assembly, RH - CUB YELLOW-99 (0716)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0717

AUGER ASM-RH - SILVER MIST (0717)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-0731

Auger Spiral Assembly, RH - YELLOW JACKET (0731)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-4021

Auger Spiral Assembly, RH - CUB YELLOW 2 (4021)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-4033

SPIRAL ASM-AUGER RH - FLINT MICA (4033)

$88.99

$

In Stock, Qty 14

0

Troy-Bilt 684-04108-4041

Auger Spiral Assembly, RH - PURE ORANGE (4041)

$88.99

$

In Stock, Qty 14

0

$71.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 784-5599

Handle Tab
(Superseded to 984-5599)

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 618-0123

Reducer Hsg.-RH
(Superseded to 918-0123A)

Note: (Incl Ref. 59-60)

$48.99

$

In Stock, Qty 14

0

54

Troy-Bilt 717-0528A

Worm Gear, 20T
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

56

Troy-Bilt 738-04124

Shear Pin
(Superseded to 738-04124A)

$1.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 12

0

58

Troy-Bilt 736-0351

Flat Washer

$3.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 721-0179

Oil Seal

$7.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 741-0661A

Flange Bearing
(Superseded to 741-0661B)

$9.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 618-0418

Reducer Hsg.-L H
(Superseded to 918-0418A)

Note: (Incl Ref. 59,71)

$57.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 711-04282

Auger Axle
(Superseded to 711-04282A)

$104.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 684-04107

Spiral Assembly- LH
(Superseded to 684-04107A)

Variations

Troy-Bilt 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$83.99

$

In Stock, Qty 6

0

Troy-Bilt 684-04107-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0629

Auger Spiral Assembly, LH - SILVER FLAKE (0629)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0650

Auger Spiral Assembly, LH - RED METALLIC (0650)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0674

SPIRAL ASM-AUGER LH - YARDMAN YELLOW (0674)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0689

Auger Spiral Assembly, LH - POLO GREEN (0689)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0709

AUGER ASM-LH - MASTERCRAFT GREEN (0709)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04107-0716

Auger Spiral Assembly, LH - CUB YELLOW-99 (0716)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-0717

Auger Spiral Assembly, LH - SILVER MIST (0717)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-4021

Auger Spiral Assembly, LH - CUB YELLOW 2 (4021)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-4033

SPIRAL ASM-AUGER LH - FLINT MICA (4033)

$83.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-04107-4041

Auger Spiral Assembly, LH - PURE ORANGE (4041)

$83.99

$

In Stock, Qty 12

0

Troy-Bilt 684-04107-4044

Auger Spiral Assembly, LH - CRAFTSMAN RED (4044)

$83.99

$

In Stock, Qty 12

0

$67.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 731-04870

Spacer, 1.25OD x.75ID x 1.00 Lg

$4.49

$

In Stock, Qty 8

0

66

Troy-Bilt 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

67

Troy-Bilt 736-0188

Flat Washer

$3.99

$

In Stock, Qty 20+

0

68

Troy-Bilt 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 731-04871

Spacer, 1.25OD x.75ID x 3/16 Lg

$6.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 741-0339

Flange Bearing
(Superseded to 941-0339)

$11.99

$

In Stock, Qty 20+

0

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

Note: (Not Shown)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 746-04165

Cable - Chute Deflector
(Superseded to 946-04165)

Note: (Not Shown)

$

$

Not available
