1004 (1690238) - Simplicity Roticul Tiller, 4hp Frame, Engine & Drive Group Parts Diagram

Roticul Tiller, 4hp

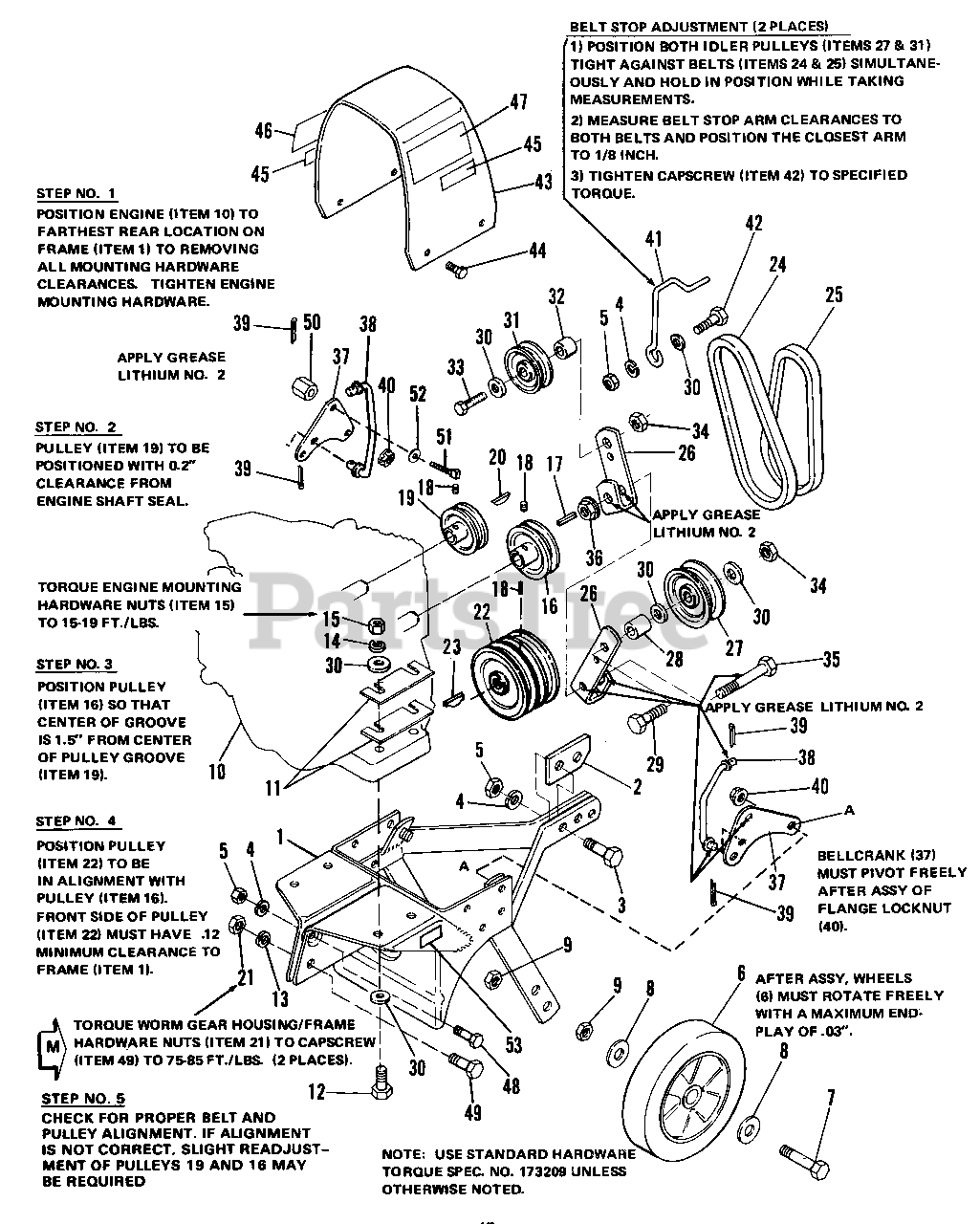

Frame, Engine & Drive Group Parts Diagram

  • Title

1

Simplicity 1609357

FRAME ASSY

$

$

Not available

2

Simplicity 118207

STOP, Plate

$

$

Not available

3

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

5

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

6

Simplicity 1657033

WHEEL & TIRE ASSY

$

$

Not available

7

Simplicity 2808305

CAPSCREW, Hex, 1/2-13 x 3-1/2

$

$

Not available

8

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

9

Simplicity 2813744

NUT, Hex, Jam, 1/2-13

$

$

Not available

10

ENGINE, 4 HP, Briggs & Stratton, Model 111292

$

$

Not available

11

Simplicity 118463

SHIM

$

$

Not available

12

Simplicity 2821978

CAPSCREW, Hex, 5/16-18 x 2, Gr. 5

$

$

Not available

13

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 2118027SM

PULLEY, Engine (Forward)

$50.99

$

Usually ships in 2-12 days

0

17

Simplicity 2805850SM

KEY, 3/16

$2.49

$

Usually ships in 2-12 days

0

18

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

19

Simplicity 118457

PULLEY, Engine (Reverse)

$

$

Not available

20

Simplicity 2805121SM

KEY, 1/8 x 5/8, #5

$2.99

$

In Stock, only 1 left!

0

21

Simplicity 913901

NUT, Hex, Full, 7/16-20

$

$

Not available

22

Simplicity 1657192

PULLEY, Drive

$

$

Not available

23

Simplicity 118439

KEY

$

$

Not available

24

Simplicity 172929

BELT, (Reverse)

$

$

Not available

25

Simplicity 2164146SM

BELT (Forward)

$23.99

$

Usually ships in 2-12 days

0

26

Simplicity 1609352

LEVER, Idler Pulley

$

$

Not available

27

Simplicity 2154534SM

PULLEY

$32.99

$

In Stock, only 2 left!

0

28

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 13

0

29

Simplicity 2822606

CAPSCREW, 3/8-16 x 1/2

$

$

Not available

30

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

31

Simplicity 2118414SM

PULLEY, Idler

$26.99

$

Usually ships in 2-12 days

0

32

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

33

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

34

Simplicity 2828731

LOCKNUT, Hex, Full, 3/8-16

$

$

Not available

35

Simplicity 171336

BOLT, Pivot

$

$

Not available

36

Simplicity 2827557

LOCKNUT, Flange, Whiz, 5/16-18

$

$

Not available

37

Simplicity 1609295

BELLCRANK

$

$

Not available

38

Simplicity 1609299

LINK, Rod

$

$

Not available

39

Simplicity 2823360

PIN, Cotter, 5/8 x 3/4

$

$

Not available

40

Simplicity 2829001

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

41

Simplicity 1657530

STOP, Belt

$

$

Not available

42

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

43

Simplicity 170359

COVER, Engine

$

$

Not available

44

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

45

Simplicity 1657124

DECAL, 1004

$

$

Not available

46

Simplicity 1657126

DECAL, Roticul, R.H.

$

$

Not available

47

Simplicity 1657127

DECAL, Roticul, L.H.

$

$

Not available

48

Simplicity 2808127

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

49

Simplicity 2828038

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

50

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

51

Simplicity 928722

SETSCREW, #10-24 x 5/8

$

$

Not available

52

Simplicity 2817380

WASHER, Plain, 3/16

$

$

Not available

53

I.D. PLATE

$

$

Not available
