1004 (1690305) - Simplicity Sno-Away 20" Snow Thrower, 4hp Handles & Controls Group Parts Diagram

Sno-Away 20" Snow Thrower, 4hp

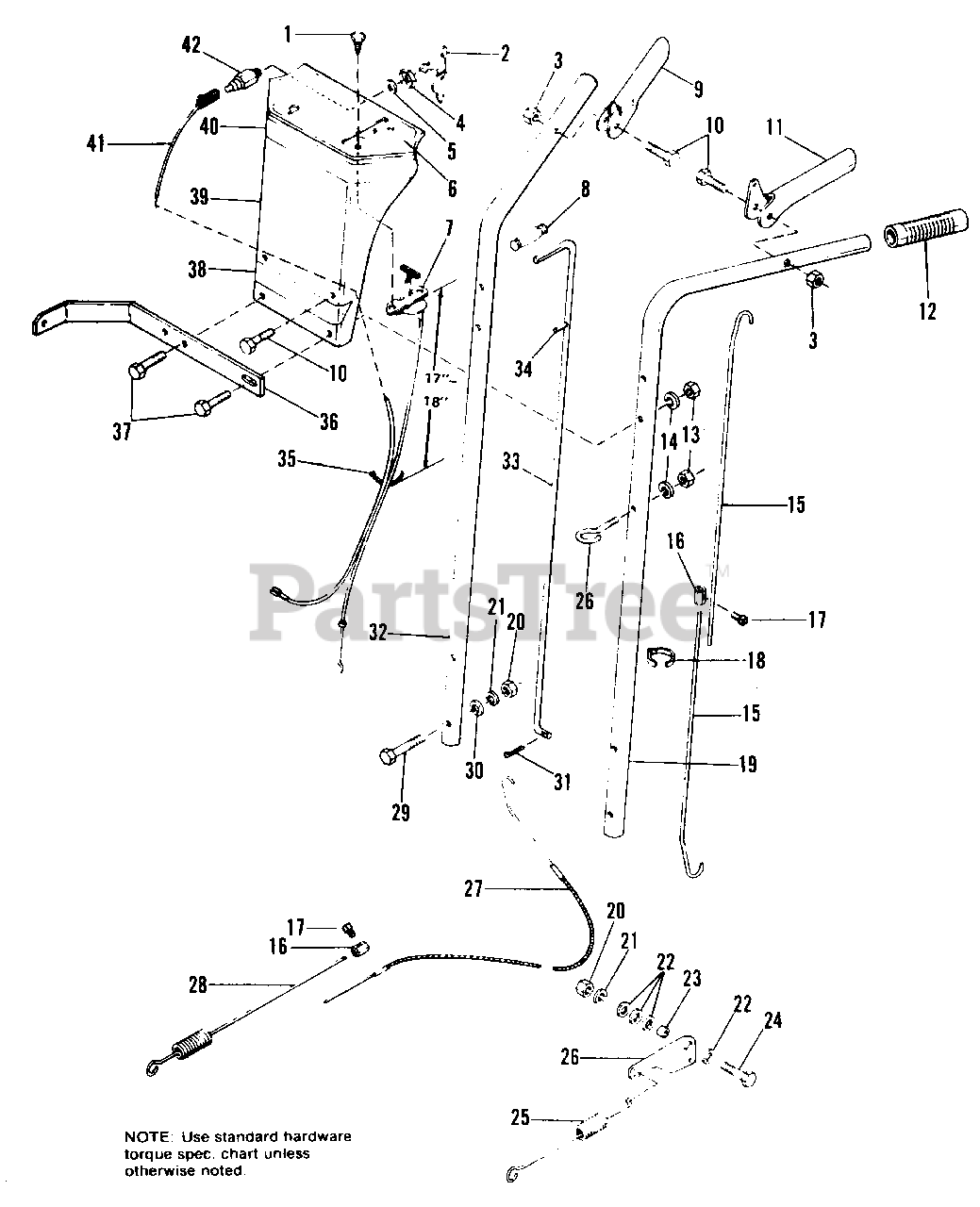

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 2823188

SCREW, Thd Forming, 1/2-20 x 1/2

$

$

Not available

2

Simplicity 1717163SM

KEY & RING ASSY.

$8.99

$

In Stock, Qty 15

0

3

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

4

Simplicity 2122234SM

NUT, Hex, 5/8
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 2818906

LOCKWASHER, Int. Tooth, 5/8

$

$

Not available

6

Simplicity 1657916

DECAL, Instructions

$

$

Not available

7

Simplicity 161177

CONTROL ASSY. (1690305 Only)

$

$

Not available

7

Simplicity 1664473

CONTROL ASSY. (1690378 Only)

$

$

Not available

8

Simplicity 106572

GRIP

$

$

Not available

9

Simplicity 1656589

GRIP, Clutch, R.H.

$

$

Not available

10

Simplicity 2819316

CAPSCREW, Hex, 1/4-20 x 1-3/4

$

$

Not available

11

Simplicity 1656588

GRIP, Clutch, L.H.

$

$

Not available

12

Simplicity 2106558

GRIP

$

$

Not available

13

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

14

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 1654506SM

WlRE, Control

$

$

Not available

16

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

17

Simplicity 928722

SETSCREW, Sq. Hd, #10-24 x 5/8

$

$

Not available

18

Simplicity 1605216

CLIP, Spring

$

$

Not available

19

Simplicity 1657747

HANDLE, L.H.

$

$

Not available

20

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

21

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

22

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

23

Simplicity 1654567

SPACER

$

$

Not available

24

Simplicity 1920415SM

CAPSCREW, Hex Hd. 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 1 left!

0

25

Simplicity 1654568SM

SPRING

$31.99

$

Usually ships in 2-12 days

0

26

Simplicity 1654574

ARM, Pivot

$

$

Not available

27

Simplicity 1654503

ABLE & WIRE ASSY. (1690305 Only)

$

$

Not available

27

Simplicity 1664535

WIRE CONTROL, Upper (1690378 Only)

$

$

Not available

28

Simplicity 2176017SM

SPRING

$53.99

$

Usually ships in 2-12 days

0

29

Simplicity 2823701

CAPSCREW, Hex Hd., 3/8-16 x 2

$

$

Not available

30

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

32

Simplicity 1657746

HANDLE, R.H.

$

$

Not available

33

Simplicity 1663665

ROD ASSY.

$

$

Not available

34

Simplicity 2819180SM

PIN

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 2832747SM

TIE, Cable

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 171357

BRACKET, Support

$

$

Not available

37

Simplicity 2818240

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2

$

$

Not available

38

Simplicity 106718

DECAL, Simplicity

$

$

Not available

39

Simplicity 1654526

HOUSING ASSY.

$

$

Not available

40

Simplicity 1657915

DECAL, Strip

$

$

Not available

41

Simplicity 1656604

WIRE ASSY.

$

$

Not available

42

Simplicity 2177163SM

SWITCH (1690305 Only)

$47.99

$

Usually ships in 2-12 days

0

42

Simplicity 2177163SM

SWITCH (1690378 Only)

$47.99

$

Usually ships in 2-12 days

0
