1004 (1690305) - Simplicity Sno-Away 20" Snow Thrower, 4hp Transmission Group Parts Diagram

Sno-Away 20" Snow Thrower, 4hp

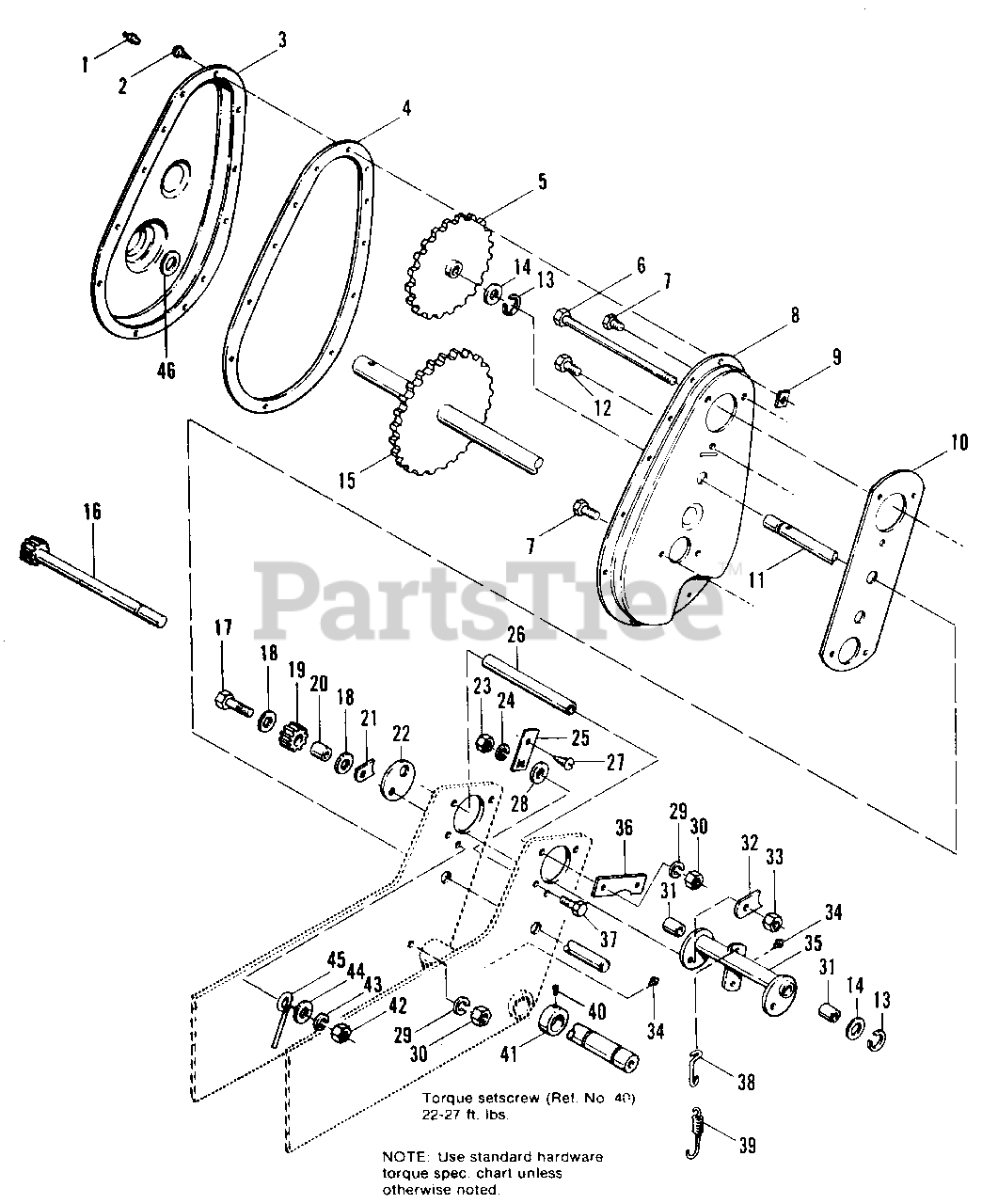

Transmission Group Parts Diagram

  • Title

1

Simplicity 928724

FITTING, Grease, 7/16

$

$

Not available

2

Simplicity 2823735

SCREW, Self Tapping, #10 X 3/8

$

$

Not available

3

Simplicity 153106

COVER ASSY., Gear Case

$

$

Not available

4

Simplicity 153115

GASKET

$

$

Not available

5

Simplicity 103206

GEAR ASSY.

$

$

Not available

6

Simplicity 106216

BOLT, Frame

$

$

Not available

7

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

8

Simplicity 153105

CASE, Gear

$

$

Not available

9

Simplicity 928699

NUT, Speed

$

$

Not available

10

Simplicity 153114

GASKET

$

$

Not available

11

Simplicity 106193

SHAFT, Intermediate

$

$

Not available

12

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

13

Simplicity 2153124SM

RING, Retaining

$5.99

$

In Stock, Qty 20+

0

14

Simplicity 2153079

WASHER

$

$

Not available

15

Simplicity 161164

AXLE & GEAR ASSY.

$

$

Not available

16

Simplicity 2121115SM

SHAFT ASSY., Pulley

$90.99

$

Usually ships in 2-12 days

0

17

Simplicity 930575

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

18

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

19

Simplicity 121118

PINION

$

$

Not available

20

Simplicity 121163

SPACER, Pinion

$

$

Not available

21

Simplicity 121107

SPACER, Reverse Pinion

$

$

Not available

22

Simplicity 153094

SHIELD

$

$

Not available

23

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

24

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 928723

NUT, Speed

$

$

Not available

26

Simplicity 106217

SPACER, Frame

$

$

Not available

27

Simplicity 319804

SCREW, Self Tapping, #10 x 3/8

$

$

Not available

28

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

29

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2156064SM

BUSHING

$22.99

$

Usually ships in 2-12 days

0

32

Simplicity 121139

PLATE, Lock

$

$

Not available

33

Simplicity 153090

NUT, Hex, Full, L.H. Thd., 3/8-16

$

$

Not available

34

Simplicity 2814687

FITTING, Grease (1690378 Only)

$

$

Not available

34

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

35

Simplicity 1651091

HOUSING, W/Bearings (Includes Ref. Nos. 31 & 34)

$

$

Not available

36

Simplicity 106215

PLATE, Friction Stop

$

$

Not available

37

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

38

Simplicity 153011

SPRING, Extension

$

$

Not available

39

Simplicity 153121

SPRING, Reverse Lever

$

$

Not available

40

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

41

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

42

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

43

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

44

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

45

Simplicity 121044

PIN, Lock

$

$

Not available

46

Simplicity 8061055

RING, Retaining

$

$

Not available
