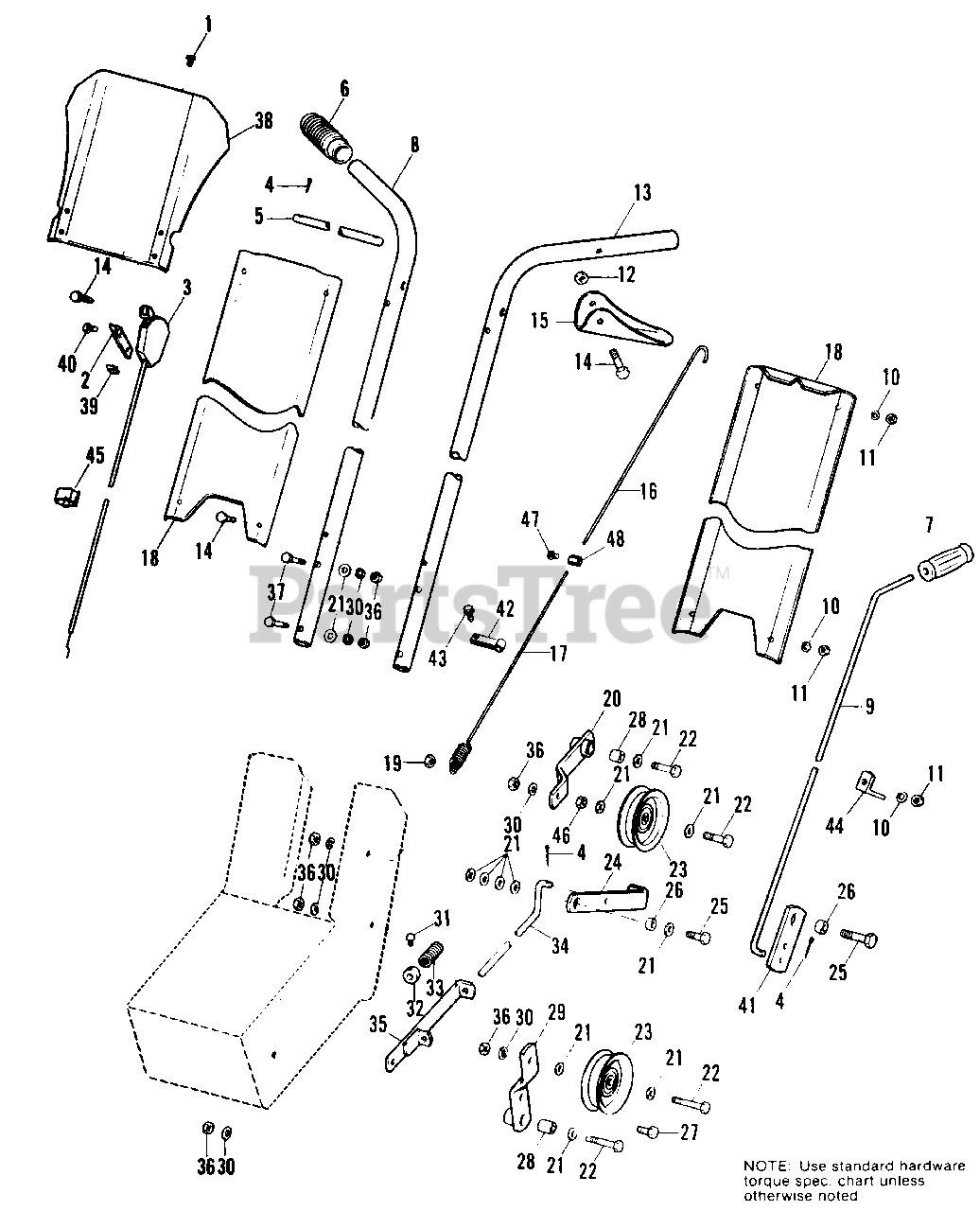

1004 (990558) - Simplicity Sno-Away 21" Snow Thrower, 4hp Handles & Controls Group Parts Diagram

Sno-Away 21" Snow Thrower, 4hp

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 2822122

SCREW, Hex, Self Tapping, #10-32 x 1/2

$

$

Not available

2

Simplicity 106524

SUPPORT, Throttle Control

$

$

Not available

3

Simplicity 106563

CONTROL ASSY., Throttle (990482 & 990483 Only)

$

$

Not available

3

Simplicity 161177

CONTROL ASSY., Throttle (990558 & 990559 Only)

$

$

Not available

4

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

5

Simplicity 106564

PIN, Lever

$

$

Not available

6

Simplicity 2106558

GRIP

$

$

Not available

7

Simplicity 106572

GRIP, Reverse Rod

$

$

Not available

8

Simplicity 106782

HANDLE, R.H.

$

$

Not available

9

Simplicity 106776

ROD, Reverse (990482 & 990483 Only)

$

$

Not available

9

Simplicity 161163

ROD, Reverse (990558 & 990559 Only)

$

$

Not available

10

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

12

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

13

Simplicity 106781

HANDLE, L.H.

$

$

Not available

14

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

15

Simplicity 1180-56

GRIP, Clutch

$

$

Not available

16

Simplicity 1610-90

EXTENSION, Wire

$

$

Not available

17

Simplicity 106778

SPRING ASSY.

$

$

Not available

18

Simplicity 106559

COVER, Handle

$

$

Not available

19

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 106204

LEVER ASSY., Idler

$

$

Not available

21

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2819361

CAPSCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available

23

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

24

Simplicity 106223

PEDAL, Foot Clutch

$

$

Not available

25

Simplicity 2108418

CAPSCREW, Special

$

$

Not available

26

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 4 left!

0

27

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

28

Simplicity 1729274SM

BEARING, Race

$13.99

$

Usually ships in 2-12 days

0

29

Simplicity 106201

LEVER ASSY., Idler

$

$

Not available

30

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

31

Simplicity 2828804

SETSCREW, Sq. Hd., 1/4-20 x 3/8

$

$

Not available

32

Simplicity 1729276SM

COLLAR, Set

$23.99

$

Usually ships in 2-12 days

0

33

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

34

Simplicity 106829

ROD, Clutch

$

$

Not available

35

Simplicity 1729265SM

GUIDE ASSY., Rod

$41.99

$

Usually ships in 2-12 days

0

36

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

37

Simplicity 2823701

CAPSCREW, Hex, 3/8-16 x 2

$

$

Not available

38

Simplicity 106780

HOUSING ASSY. (990482 & 990483 Only)

$

$

Not available

38

Simplicity 1654526

HOUSING ASSY. (990558 & 990559 Only)

$

$

Not available

39

Simplicity 928700

SPEED NUT, Tinnerman

$

$

Not available

40

Simplicity 923734

SCREW, Self Tapping, #10-24 x 1/2

$

$

Not available

41

Simplicity 161169

BAR, Clutch

$

$

Not available

42

Simplicity 154247

CLAMP

$

$

Not available

43

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

44

Simplicity 154119

CLIP, Spring

$

$

Not available

45

Simplicity 80611-08

CLIP, Cable

$

$

Not available

46

Simplicity 2828731

LOCKNUT, Hex, Jam, 3/8-16

$

$

Not available

47

Simplicity 916079

SCREW, Rd. Hd., #10-24 x 3/8

$

$

Not available

48

Simplicity 1610-92

CLAMP

$

$

Not available
