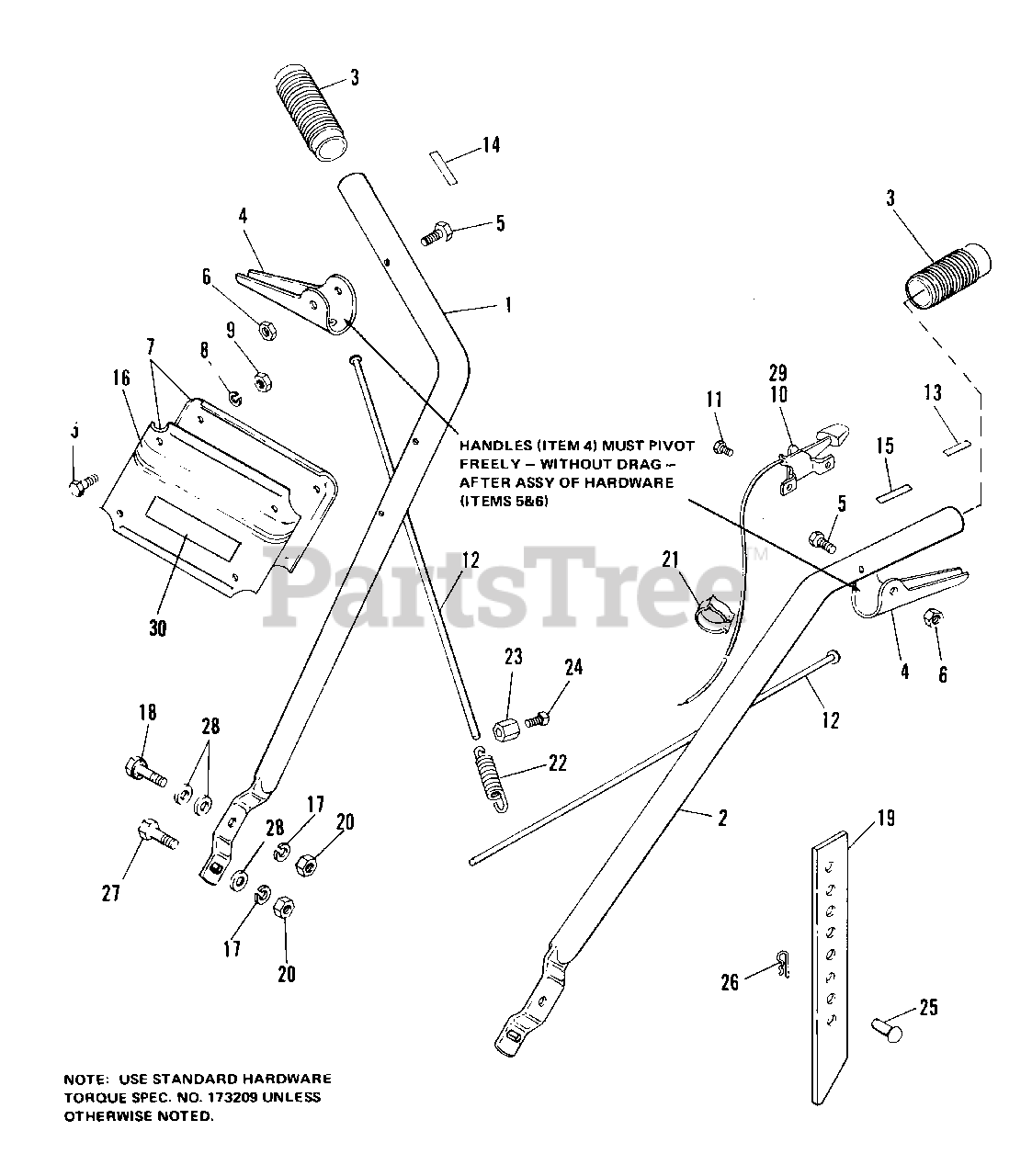

1005 (1690324) - Simplicity Roticul Tiller, 5hp Handle Control & Misc. Group Parts Diagram

Roticul Tiller, 5hp

Handle Control & Misc. Group Parts Diagram

  • Title

1

Simplicity 1690344

HANDLE, R.H.

$

$

Not available

2

Simplicity 1690354

HANDLE, L.H.

$

$

Not available

3

Simplicity 2106558

GRIP

$

$

Not available

4

Simplicity 1609300

* GRIP, Clutch

$

$

Not available

5

Simplicity 2818240

* CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

6

Simplicity 2823358

* LOCKNUT, Hex, Full, 1/4-20

$

$

Not available

7

Simplicity 118298

COVER, Handle

$

$

Not available

8

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

10

Simplicity 1657200

CONTROL ASSY, Throttle (1690237)

$

$

Not available

11

Simplicity 2829477

SCREW, Taptite, #10-24 x 1/2

$

$

Not available

12

Simplicity 1609378

* ROD, Control

$

$

Not available

13

Simplicity 1609427

DECAL, Throttle

$

$

Not available

14

Simplicity 1609429

DECAL, Forward

$

$

Not available

15

Simplicity 1609430

DECAL, Reverse (1690324 only)

$

$

Not available

16

Simplicity 1657122

DECAL, Stripe

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

18

Simplicity 2828728

SCREW, Flange, Whiz, 3/8-16 x 1

$

$

Not available

19

Simplicity 118081

BAR, Depth

$

$

Not available

20

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

21

Simplicity 1605216

CLIP, Spring

$

$

Not available

22

Simplicity 2159159SM

SPRING

$37.99

$

In Stock, only 1 left!

0

23

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

24

Simplicity 928722

SETSCREW, #10-24 x 5/8

$

$

Not available

25

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

26

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 2830579

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

28

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1609382

CONTROL, Throttle (1690324 only)

$

$

Not available

30

Simplicity 106718

FILM, Simplicity

$

$

Not available
