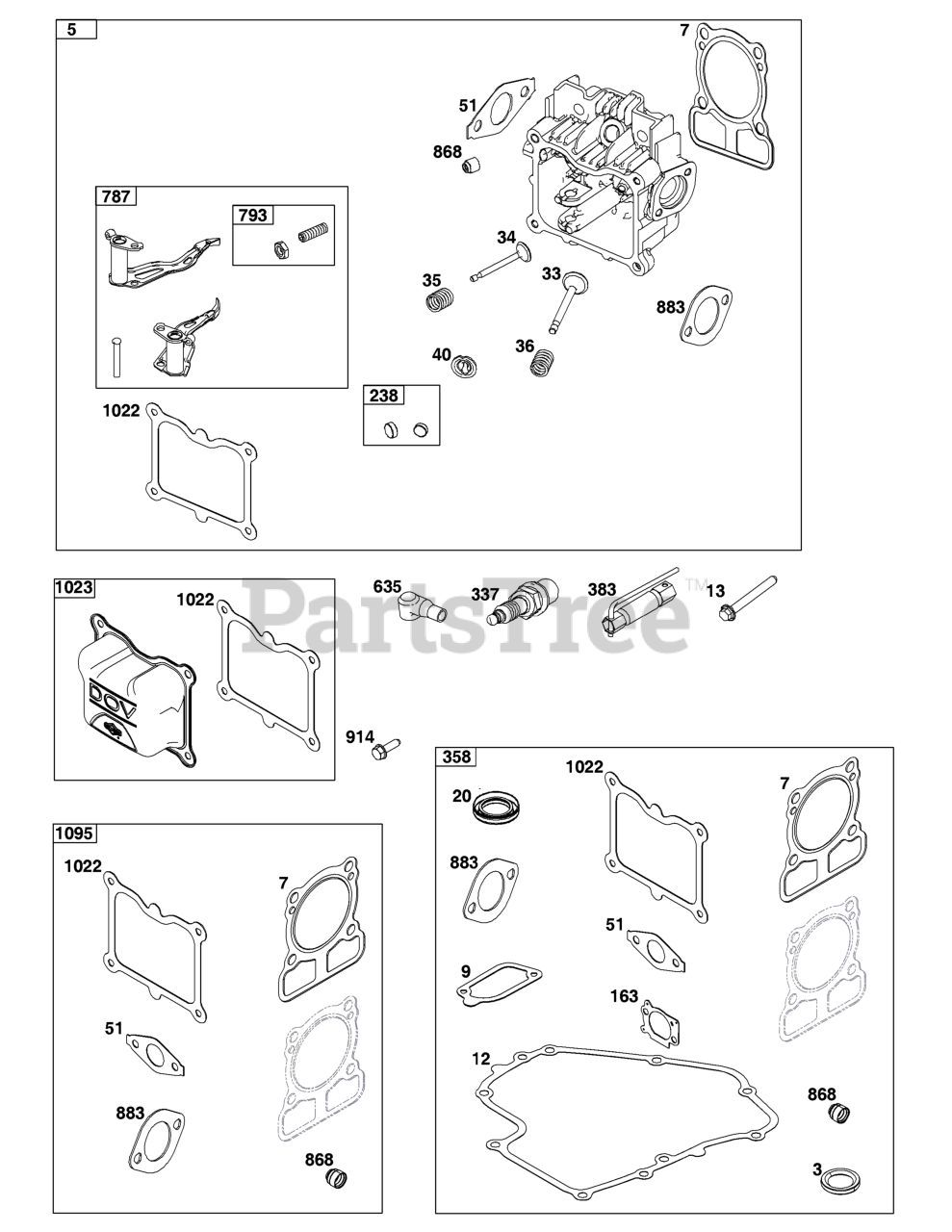

100602-0050-H1 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 592536

Head-Cylinder

$130.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 793455

Gasket-Cylinder Head

$14.99

$

Usually ships in 2-12 days

0

9

GASKET, Breather

Note: (Part information located in Cylinder Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 793451

Screw
(Superseded to 799277)

Note: (Cylinder Head)

$4.99

$

In Stock, Qty 13

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

33

Briggs & Stratton 793505

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 793504

Valve-Intake

$28.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 793506

Spring-Valve

Note: (Intake)

$5.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 793506

Spring-Valve

Note: (Exhaust)

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 793503

Retainer-Valve

$4.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake (2 Required)

$3.99

$

In Stock, Qty 20+

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

238

Briggs & Stratton 793535

Cap-Valve

$8.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 692720

PLUG, Spark

$3.49

$

In Stock, Qty 20+

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, Qty 5

0

635

BOOT, Spark Plug

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

787

Briggs & Stratton 592537

ARM-LEVER

$47.99

$

Usually ships in 2-12 days

0

793

Briggs & Stratton 793511

Screw/Nut Set

$4.49

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 793507

Seal-Valve

$6.49

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 794451

Screw

Note: (Rocker Cover)

$4.49

$

In Stock, Qty 6

0

1022

Briggs & Stratton 793437

Gasket-Rocker Cover

$7.49

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 793436

Cover-Rocker

$11.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 793624

Gasket Set-Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$18.99

$

Usually ships in 2-12 days

0
