100802-0012-H7 - Briggs & Stratton Vertical Engine Air Cleaner, Fuel Supply, Lubrication Parts Diagram

Vertical Engine

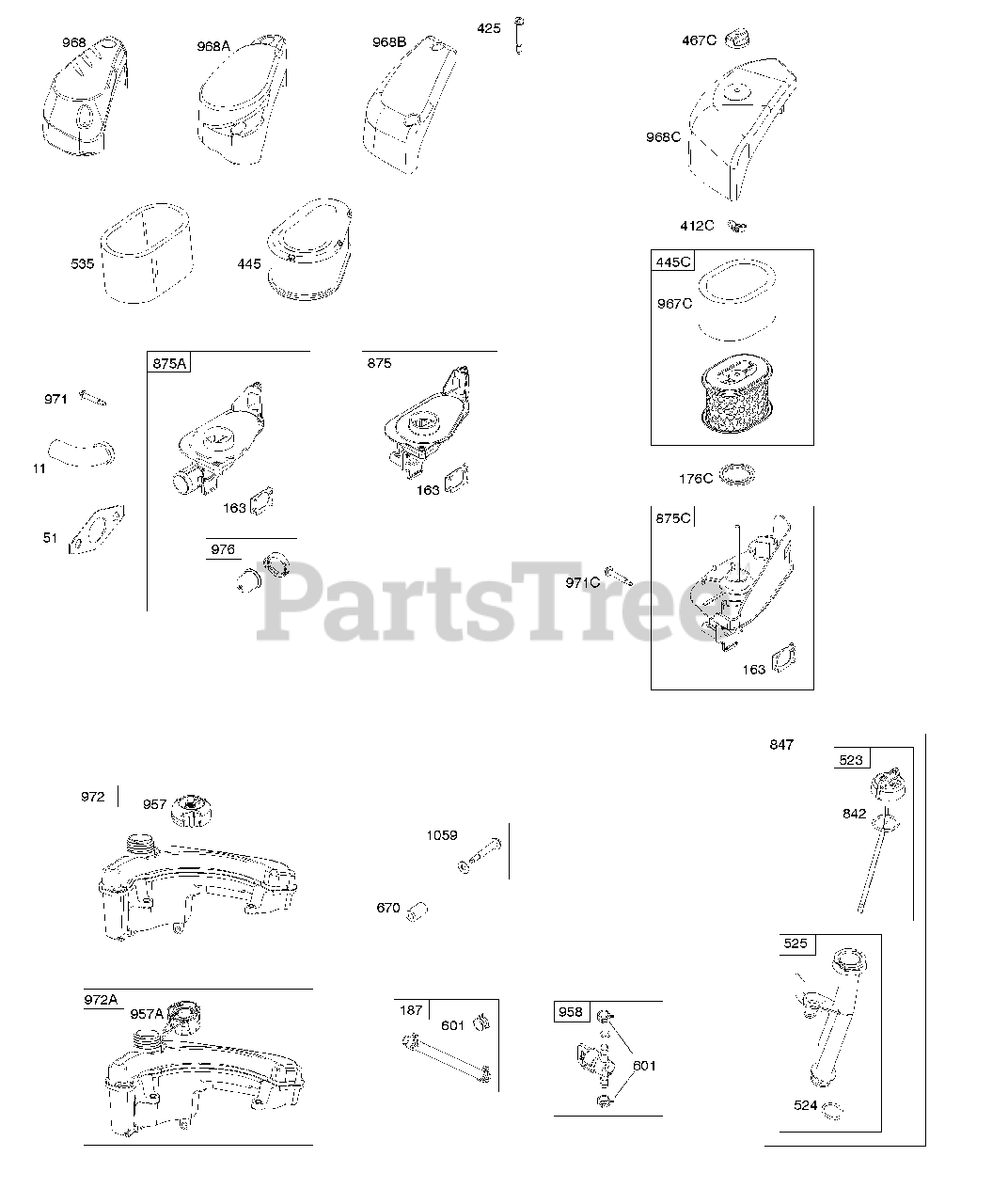

Air Cleaner, Fuel Supply, Lubrication Parts Diagram

  • Title

11

Briggs & Stratton 793447

Tube-Breather
(Superseded to 84003693)

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 20+

0

176C

Briggs & Stratton 590695

Seal-O Ring

Note: (Air Cleaner Base)

$5.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 791766

Line-Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

412C

Briggs & Stratton 590697

Nut

Note: (Air Cleaner Cover)

$3.99

$

Usually ships in 2-12 days

0

425

Briggs & Stratton 793460

Screw

Note: (Air Cleaner Cover)

$3.99

$

Usually ships in 2-12 days

0

445C

Briggs & Stratton 590601

Filter-A/C Cartridge

$18.99

$

In Stock, only 4 left!

0

467C

Briggs & Stratton 691985

Knob-Air Cleaner Cover

$7.99

$

In Stock, Qty 7

0

523

Briggs & Stratton 793475

Dipstick

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 793476

Seal-Dipstick Tube

$4.49

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 793477

Tube-Dipstick

$19.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

Clamp-Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

670

Briggs & Stratton 793485

Spacer-Fuel Tank

$6.49

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 12

0

847

Briggs & Stratton 793474

Dipstick/Tube Assembly
(Superseded to 594022)

$22.99

$

Usually ships in 2-12 days

0

875C

Briggs & Stratton 592171

Base-Air Cleaner

$37.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 692046

Cap-Fuel Tank

Note: (Standard Cap)

$5.49

$

In Stock, Qty 8

0

957A

Briggs & Stratton 796577

Cap-Fuel Tank

Note: (Tethered Cap)

$16.99

$

In Stock, Qty 12

0

958

Briggs & Stratton 698183

Valve-Fuel Shut Off

$8.49

$

In Stock, Qty 14

0

967C

Briggs & Stratton 590602

Filter-Pre Cleaner

$13.99

$

Usually ships in 2-12 days

0

968C

Briggs & Stratton 592169

Cover-Air Cleaner

$24.99

$

Usually ships in 2-12 days

0

971C

Briggs & Stratton 592170

Screw

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$5.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 793472

Tank-Fuel

Note: (Standard Cap)

$83.99

$

Usually ships in 2-12 days

0

972A

Briggs & Stratton 799291

Tank-Fuel

Note: (Tethered Cap)

$130.99

$

Usually ships in 2-12 days

0

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 793471

Kit-Screw/Washer

Note: (Fuel Tank)

$5.49

$

Usually ships in 2-12 days
