10121 - Toro Sportlawn Walk-Behind Mower (SN: 003000001 - 003999999) (1973) Engine Model No. 60102 Type 0332-01 Briggs Stratton Parts Diagram

Sportlawn Walk-Behind Mower

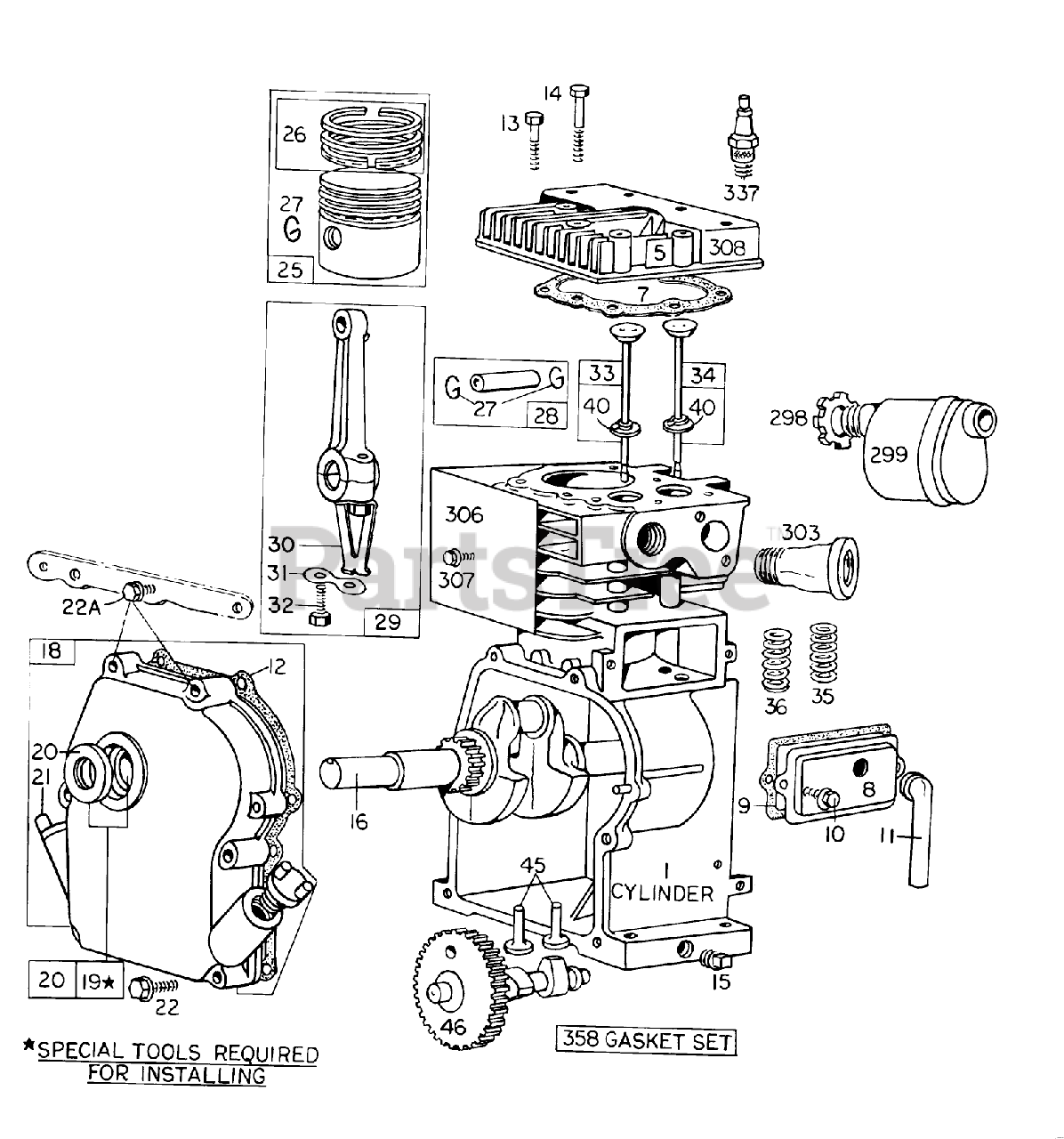

Engine Model No. 60102 Type 0332-01 Briggs Stratton Parts Diagram

  • Title

1

Toro 296561

Cylinder Assembly

$

$

Currently unavailable

5

Toro 210812

Head-Cylinder

$

$

Currently unavailable

7

Toro 27670

Gasket-Cylinder Hd.

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

8

Toro 294178

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 66638

Tube-Breather

$

$

Currently unavailable

12

Toro 27586

Gasket-Crankcase" thick (Standard)

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

Toro 27617

Gasket-Crankcase .005" thick

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

Toro 27618

Gasket-Crankcase .009" thick

Note: Included in Gasket Set-Part No. 297275.

$

$

Currently unavailable

13

Toro 93111

Screw-Cylinder Hd.

$

$

Currently unavailable

14

Toro 93113

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91249

Plug-Pipe

$

$

Currently unavailable

16

Toro 260271

Crankshaft

$

$

Currently unavailable

18

Toro 294305

Cover Assy.-Crankcase

$

$

Currently unavailable

19

Toro 293708

Bushing

$

$

Currently unavailable

20

Toro 89660

Seal-Oil

$

$

Currently unavailable

21

Toro 66768

Plug-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

22A

Toro 93466

Screw-Sem

$

$

Currently unavailable

25

Toro 295587

Piston Assy.-Std.

$

$

Currently unavailable

Toro 295588

Piston Assy.-.010" O.S.

$

$

Currently unavailable

Toro 295589

Piston Assy. .020" O.S.

$

$

Currently unavailable

Toro 295590

Piston Assy.-.030" O.S.

$

$

Currently unavailable

26

Toro 294232

Ring Set (Std.)

$

$

Currently unavailable

Toro 294224

Ring Set .010" OS.

$

$

Currently unavailable

26

Toro 294225

Ring Set .020" OS.

$

$

Currently unavailable

Toro 294226

Ring Set .030" OS.

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 294300

Rod Assy.-Connecting

$

$

Currently unavailable

30

Toro 220459

Dipper-Connecting Rod
(Superseded to 147083)

$

$

Not available

31

Toro 220460

Lock-Connecting Rod Screw

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 296676

Valve Exhaust

$

$

Currently unavailable

34

Toro 296677

Valve Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 230173

Tappet-Valve

$

$

Not available

46

Toro 210453

Gear-Cam
(Superseded to 740280)

$23.99

$

Usually ships in 3-6 days

0

298

Toro 220859

Locknut-Muffier

$

$

Not available

299

Toro 294441

Muffler-Exhaust

$

$

Currently unavailable

303

Toro 91810

Elbow-Exhaust, 45? Street

$

$

Currently unavailable

306

Toro 220478

Muffler-Exhaust

$

$

Currently unavailable

307

Toro 93042

Screw

$

$

Currently unavailable

308

Toro 220581

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

358

Toro 297275

Gasket Set

$

$

Currently unavailable
