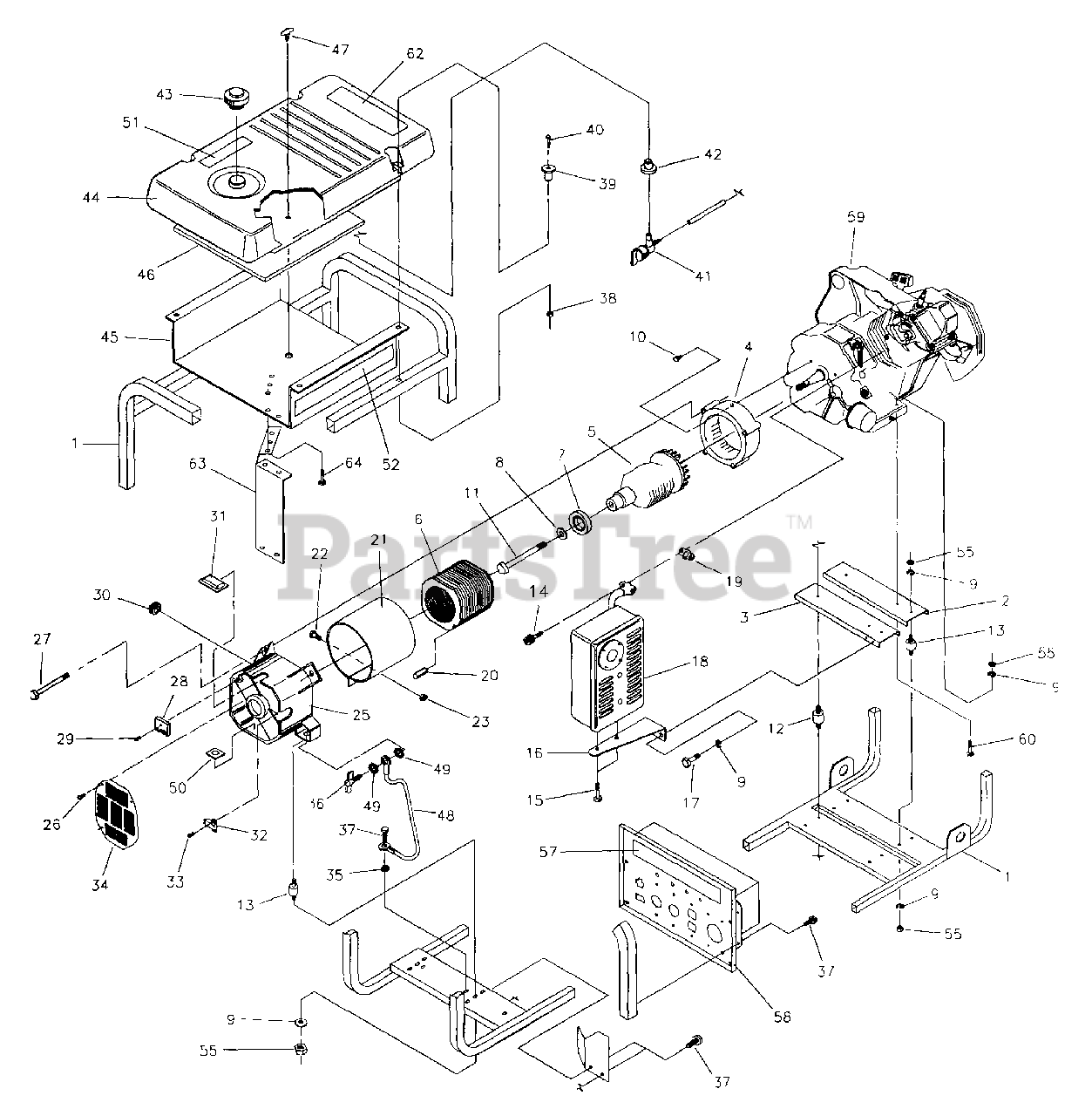

1013-0 - Generac 7,500 Watt Portable Generator Generator Parts Diagram

7,500 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 92432

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton 92531

SUPPORT, Engine

$

$

Currently unavailable

3

Briggs & Stratton 92731

SUPPORT, Engine & Muffler
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247

HOUSING, Engine Adaptor
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B1342G

ASSEMBLY, Rotor
(Superseded to B1342GGS)

$521.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B1341G

ASSEMBLY, Stator
(Superseded to B1341GGS)

$583.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

WASHER, Special Flat - M8

$

$

Currently unavailable

9

Briggs & Stratton 22129

WASHER, Lock - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

HHMS, 5/16-24 x 3/4 Lg. SEMS
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47481

HHCS, 5/16-24 x 10.625 Lg.
(Superseded to 47481GS)

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609

MOUNT, Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

MOUNT, Vibration
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40976

M8 x 20mm SHCS

$

$

Not available

15

Briggs & Stratton 66476

M8 x 12mm HHFS
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 92532

MUFFLER, Support Bracket
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66746

M6 x 12mm HHFS

$

$

Currently unavailable

18

Briggs & Stratton 91153

MUFFLER, Assembly
(Superseded to A7433GS)

$

$

Not available

19

Briggs & Stratton 90239

MUFFLER, Gasket
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 81917

PIN, Roll 4mm x 10
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 81887J

WRAP, Stator
(Superseded to 81887JGS)

$23.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 52618

HHCS, M5-0.8 x 12 Lg.
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 52856

NUT, Locking-M5
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825C

CARRIER, Rear Bearing
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908

TAPTITE, M5-0.8 x 10 Lg.
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 66449L

BOLT, Stator M6-1 x 165mm
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849A

TAPTITE, M5-0.8 x 20 Lg.
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132

ASSEMBLY, Power Regulator
(Superseded to 84132GS)

$126.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 66386

ASSEMBLY, Brush Holder
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 66849

TAPTITE, M5-0.8 x 16 Lg.
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 78388

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22769

WASHER, Shakeproof Int. #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

SCREW, M6-1.0 x 16 Lg. Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292

HHCS, - #10 Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395

NUT, Flange Lock - M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

GROMMET, Tank
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 78831B

HHMS, M6-1.0 x 60 (black)
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 90878

CAP, Fuel
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

44

Briggs & Stratton 93595

TANK, Fuel
(Superseded to 193500GS)

$

$

Not available

45

Briggs & Stratton 92039

SHIELD, Heat

$

$

Currently unavailable

46

Briggs & Stratton 92665

INSULATION, #2-1/4" Thick
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

CLIP, Insulation
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

WIRE, Ground

$

$

Not available

49

Briggs & Stratton 26850

LW, EXT, Shakeproof M6

$

$

Not available

50

Briggs & Stratton 57593

MOUNT, Cable Tie
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton B1423

DECAL, Heat Shield
(Superseded to B1423GS)

$26.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 25244

NUT, 5/16-18 Hex
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton B1480

DECAL, Control Panel
(Superseded to B1480GS)

$26.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton B1332

ASSEMBLY, Control Box
(Superseded to B1332GS)

$434.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton ENG1335

ENGINE, 15 HP.

$

$

Currently unavailable

60

Briggs & Stratton 22531

HHCS, 5/16-18 x 1-3/4" Lg.
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 93826

DECAL, Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96068

SHIELD, Heat

$

$

Currently unavailable

64

Briggs & Stratton 56893

CRIMPTITE, 10-24 x 1/2
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0
