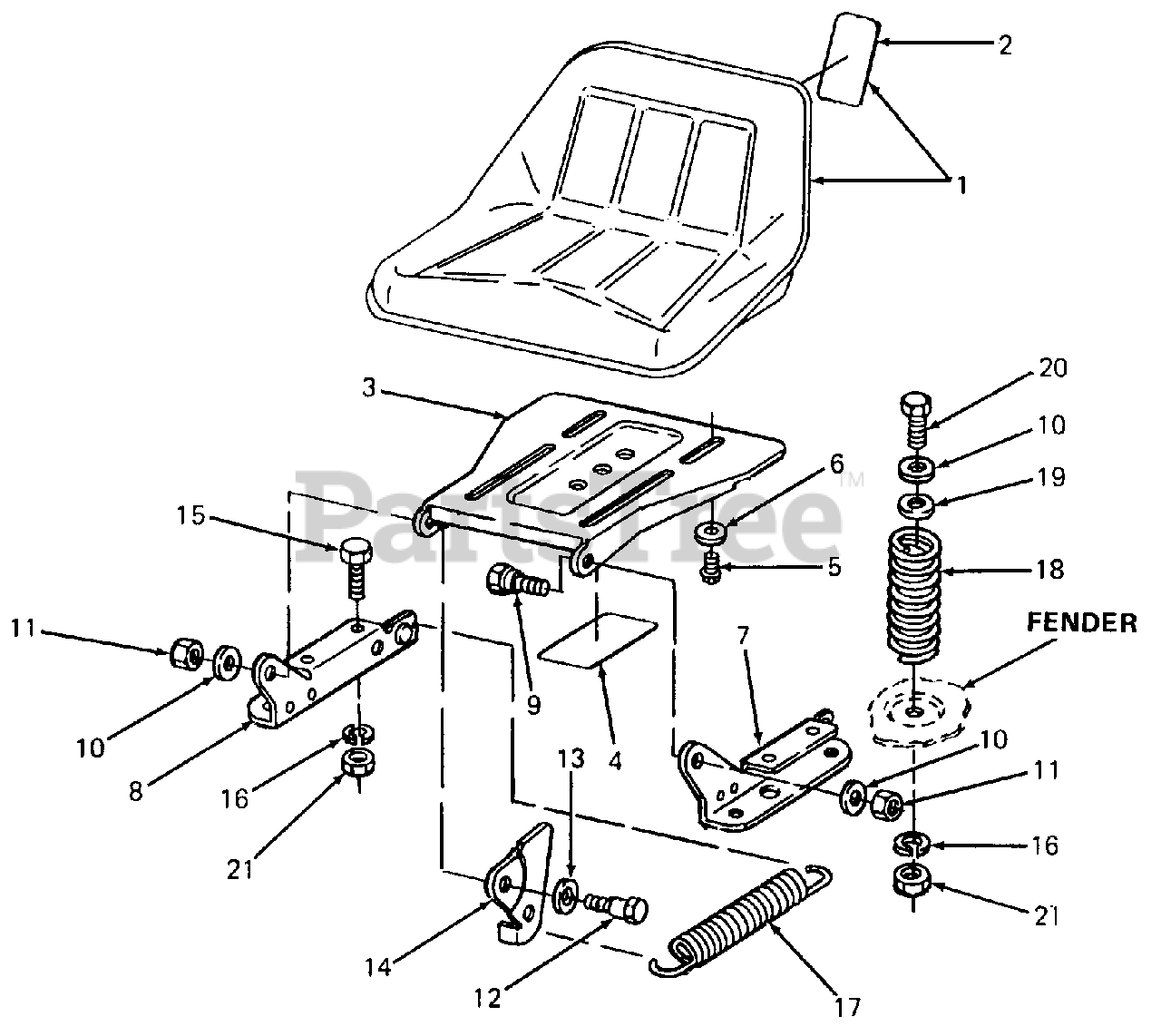

1020 (131-210D100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Seat & Support Parts Diagram

Lawn Tractor

Seat & Support Parts Diagram

  • Title

1

Cub Cadet 759-3404

Seat w/Graphic

Note: (Includes Ref No. 2)

$

$

Not available

2

Cub Cadet 779-3449

Graphic, Seat
(Superseded to 779-3349)

$

$

Not available

3

Cub Cadet 15607D

Bracket, Seat Pivot
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 779-3296

Label, Booster Battery

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp, 3/8-16 X .75 Lg

$4.49

$

In Stock, Qty 12

0

6

Cub Cadet 736-0219

Washer, Bell, .400 X 1.13 X .030 Thk
(Superseded to 936-0219)

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet 17243

Bracket, LH - Seat Pivot Support

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

Cub Cadet 17701

Bracket, LH - Seat Pivot Support
(Superseded to 17701-0637)

Note: (For tractors w/serial no. 170,600 and above)

Variations

17701-0637

Cub Cadet 17701-0637

BRACKET-SEAT SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 17244

Bracket, RH - Seat Pivot Support

Note: (For tractors w/serial no. 170,599 and below)

$

$

Not available

Cub Cadet 17702

Bracket, RH - Seat Pivot Support
(Superseded to 17702-0637)

Note: (For tractors w/serial no. 170,600 and above)

Variations

17702-0637

Cub Cadet 17702-0637

BRACKET-SEAT SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 738-0155

Screw, Shoulder, .437 Dia X .162
(Superseded to 938-0155)

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0159

Washer, Flat, .344 X .875 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$7.49

$

In Stock, Qty 20+

0

12

Cub Cadet 738-0296

Screw, Shoulder, .437 Dia X .268

$4.49

$

In Stock, only 3 left!

0

13

Cub Cadet 736-0141

Washer, Spring, .445 X .75 X .017 Thk
(Superseded to 936-0141)

$7.49

$

In Stock, only 2 left!

0

14

Cub Cadet 17239A

Bracket, Seat Lift
(Superseded to 17239C)

$

$

Not available

15

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 732-0581

Spring, Extension, .75 OD X 5.31 Lg
(Superseded to 932-0581B)

$15.99

$

In Stock, only 2 left!

0

18

Cub Cadet 732-0548

Spring, Compression

$

$

Not available

19

Cub Cadet 722-0160

Bushing, .930 OD X .50 Lg

$

$

Not available

20

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 X 1.25 Lg

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.99

$

In Stock, Qty 20+

0
