1020 (131-210D100) - Cub Cadet Lawn Tractor (SN: 126001 - 207400) Transmission Controls Parts Diagram

Lawn Tractor

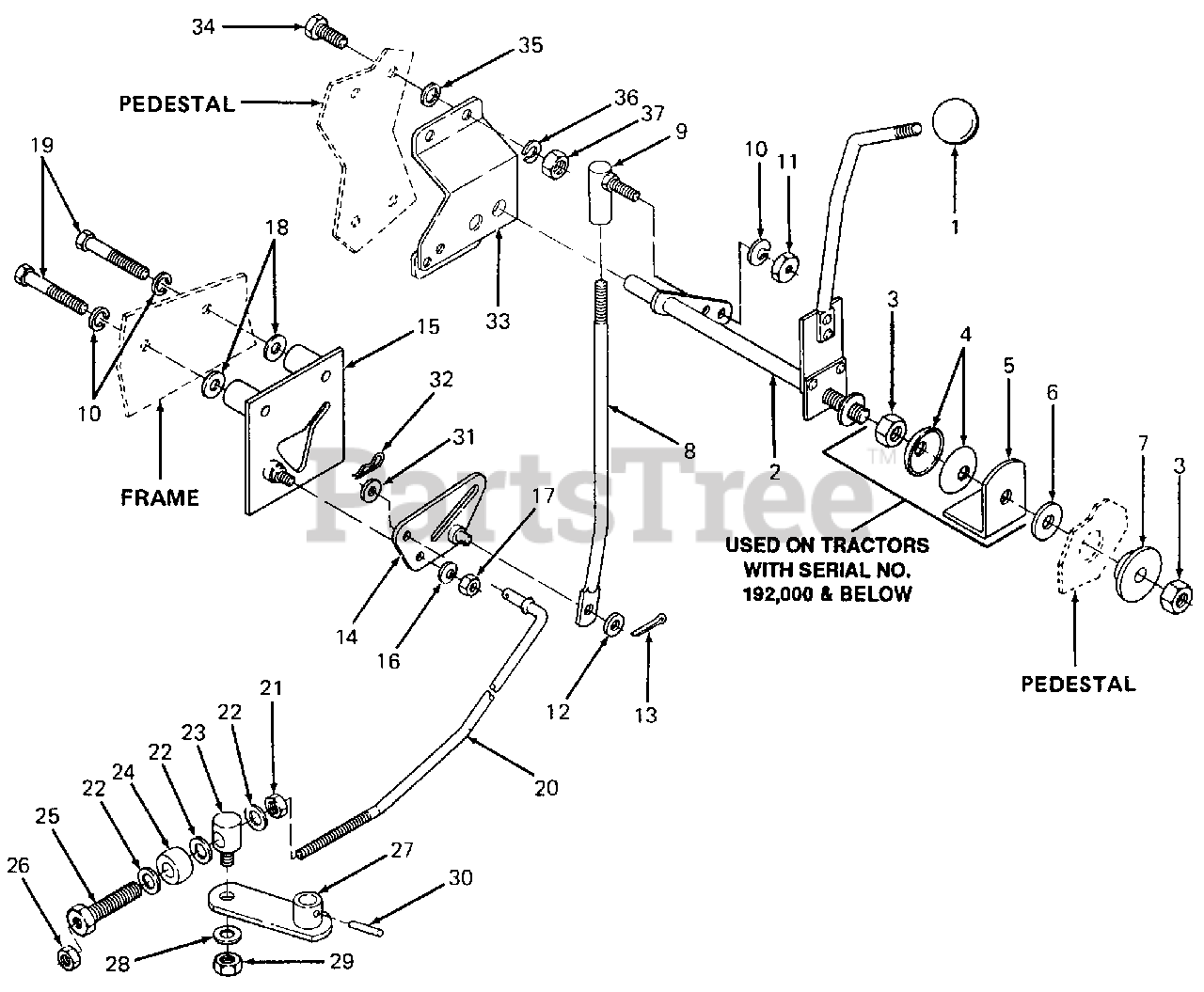

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 720-3000

Knob, Control
(Superseded to 920-3000)

$11.99

$

In Stock, only 2 left!

0

2

Cub Cadet 703-1544A

Shifter Assembly

Note: [Replaces 703-1544 by omitting Ref No. 3 (Qty 1), 4 (Qty 2) & 5]

$177.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-3059

Nut, Hex Top Lock, 1/2-20

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-3022

Washer, Bell
(Superseded to 936-3022)

$

$

Not available

5

Cub Cadet 703-1705

Bracket, Friction

$

$

Not available

6

Cub Cadet 723-3055

Washer, Friction
(Superseded to 923-3055)

$

$

Not available

7

Cub Cadet 748-3024

Spacer, Shoulder

$

$

Not available

8

Cub Cadet 711-3252

Rod, Upper Shift Control

$

$

Not available

9

Cub Cadet 723-3018

Ball Joint
(Superseded to 923-3018)

$17.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3054

Nut, Hex Patch Lock, 3/8-24 GR5

$4.49

$

In Stock, Qty 19

0

12

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X.063 Thk

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.99

$

In Stock, only 3 left!

0

14

Cub Cadet 703-1640

Lever, Cam

$

$

Not available

15

Cub Cadet 703-1642

Plate, Cam

$

$

Not available

16

Cub Cadet 736-0105

Washer, Bell

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$4.49

$

In Stock, Qty 17

0

18

Cub Cadet 736-0206

Washer, Flat, .378 X 1.00 X .125 Thk
(Superseded to 936-0206)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0152

Screw, Hex Cap, 3/8-24 X 1.0 Lg
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 15

0

20

Cub Cadet 747-3133

Rod, Hydro Control

$

$

Not available

21

Cub Cadet 712-3067

Nut, Hex Patch Lock, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0226

Washer, Flat
(Superseded to 936-0226)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet 711-3255

Ferrule

$

$

Not available

24

Cub Cadet 735-0200

Washer, Rubber, .38 X .87

$

$

Not available

25

Cub Cadet 711-3254

Stud, Adjustment

$

$

Not available

26

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

27

Cub Cadet 748-3027

Arm, Control
(Superseded to 748-3027-0637)

Variations

Cub Cadet 748-3027-0637

Control Arm - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-3081

Washer, Flat, .320 X .60 X .06 Thk HDN

$3.99

$

In Stock, Qty 8

0

29

Cub Cadet 712-3068

Nut, Hex Patch Lock, 5/16-18
(Superseded to 912-3009)

$

$

Not available

30

Cub Cadet 715-3036

Pin, Slotted Roll, 5mm X 30mm Lg

$

$

Not available

31

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$7.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 16

0

33

Cub Cadet 703-1537

Bracket, Clutch Handle

$

$

Not available

34

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-3000

Washer, Flat, .281 X .75 X .105 Thk
(Superseded to 936-0176)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

37

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 12

0
