10201 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) CARBURETOR ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

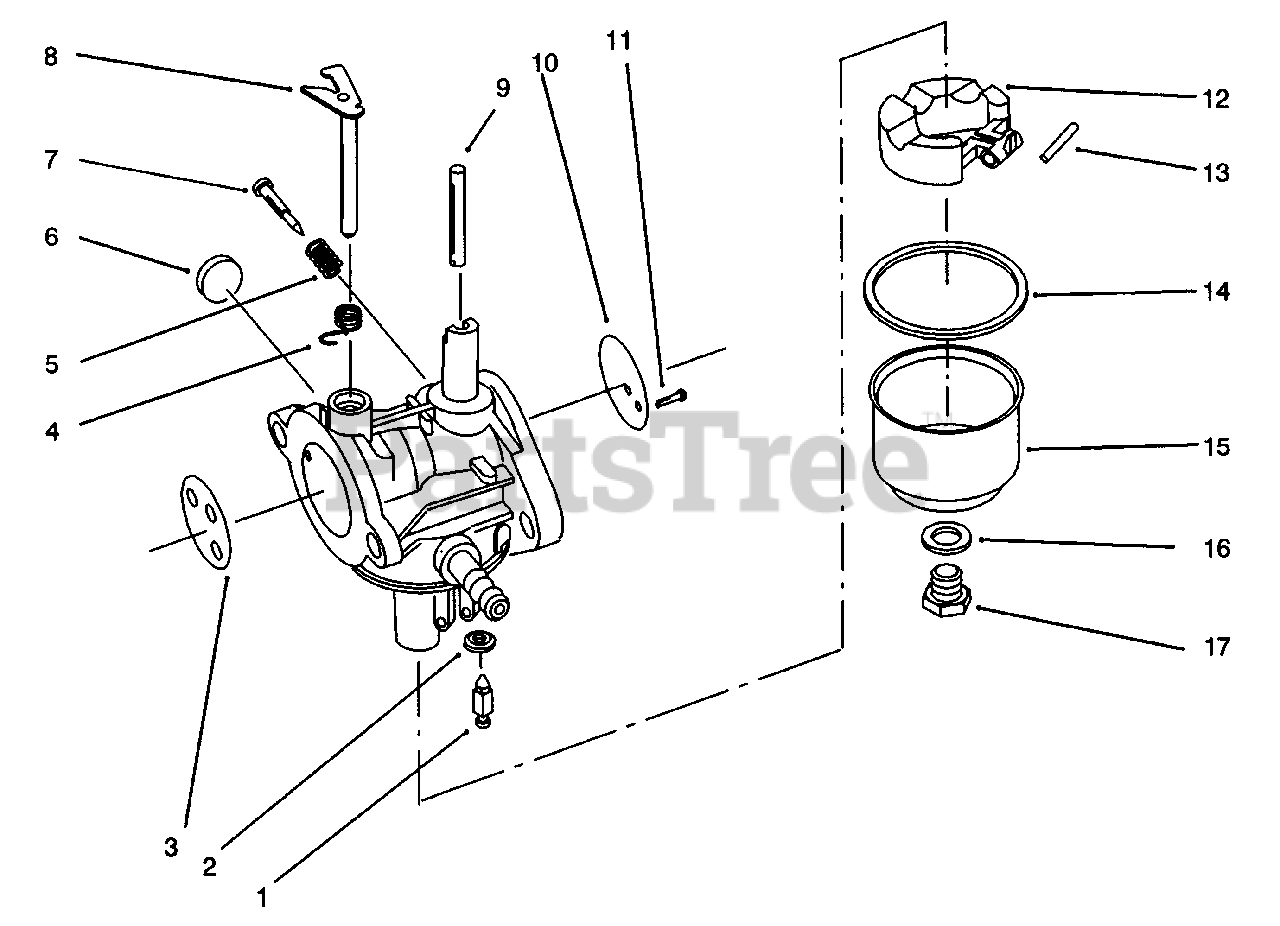

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Valve Inlet Needle

$

$

Not available

2

Seat-Valve

$

$

Not available

3

Valve-Choke

$

$

Not available

4

Spring-Choke Return

$

$

Not available

5

Spring-Idle Needle

$

$

Not available

6

Plug-Welsh

$

$

Not available

7

Needle-Idle

$

$

Not available

8

Shaft-Choke

$

$

Not available

9

Shaft-Throttle

$

$

Not available

10

Valve-Throttle

$

$

Not available

11

Screw-Throttle Valve

$

$

Not available

12

Float

$

$

Not available

13

Shaft-Float

$

$

Not available

14

Gasket-Bowl

$

$

Not available

15

Bowl-Fuel

$

$

Not available

16

Gasket-Bowl Retainer

$

$

Not available

17

Screw-Bowl

$

$

Not available

Lawn-Boy 684286

Kit-Throttle (Incl. Ref. #9,10 & 11

Note: Not Illustrated

$60.99

$

Usually ships in 3-6 days

0

Lawn-Boy 684285

Kit-Idle Needle (Incl. Ref. #5 & 7)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 683783

Kit-Float Assembly (Incl. Ref. #12-13 & Bowl Kit)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 683782

Kit-Bowl (Incl. Ref. #15 & 17 & Gasket Kit)

$53.99

$

Usually ships in 3-6 days

0

Lawn-Boy 683778

Kit-Gasket (Incl. Ref. #14 & 16)

Note: Not Illustrated

$7.99

$

In Stock, Qty 5

0

Lawn-Boy 683777

Kit-Overhaul (Incl. Ref.#1, 2,6,13 & Gasket Kit)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 683781

Kit-Choke (Incl. Ref. #3, 4 & 8)

Note: Not Illustrated

$45.99

$

In Stock, only 1 left!

0
