10210 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 003900001 - 003999999) (1993) ENGINE TVS115-57901A Parts Diagram

Silver Series Walk-Behind Mower

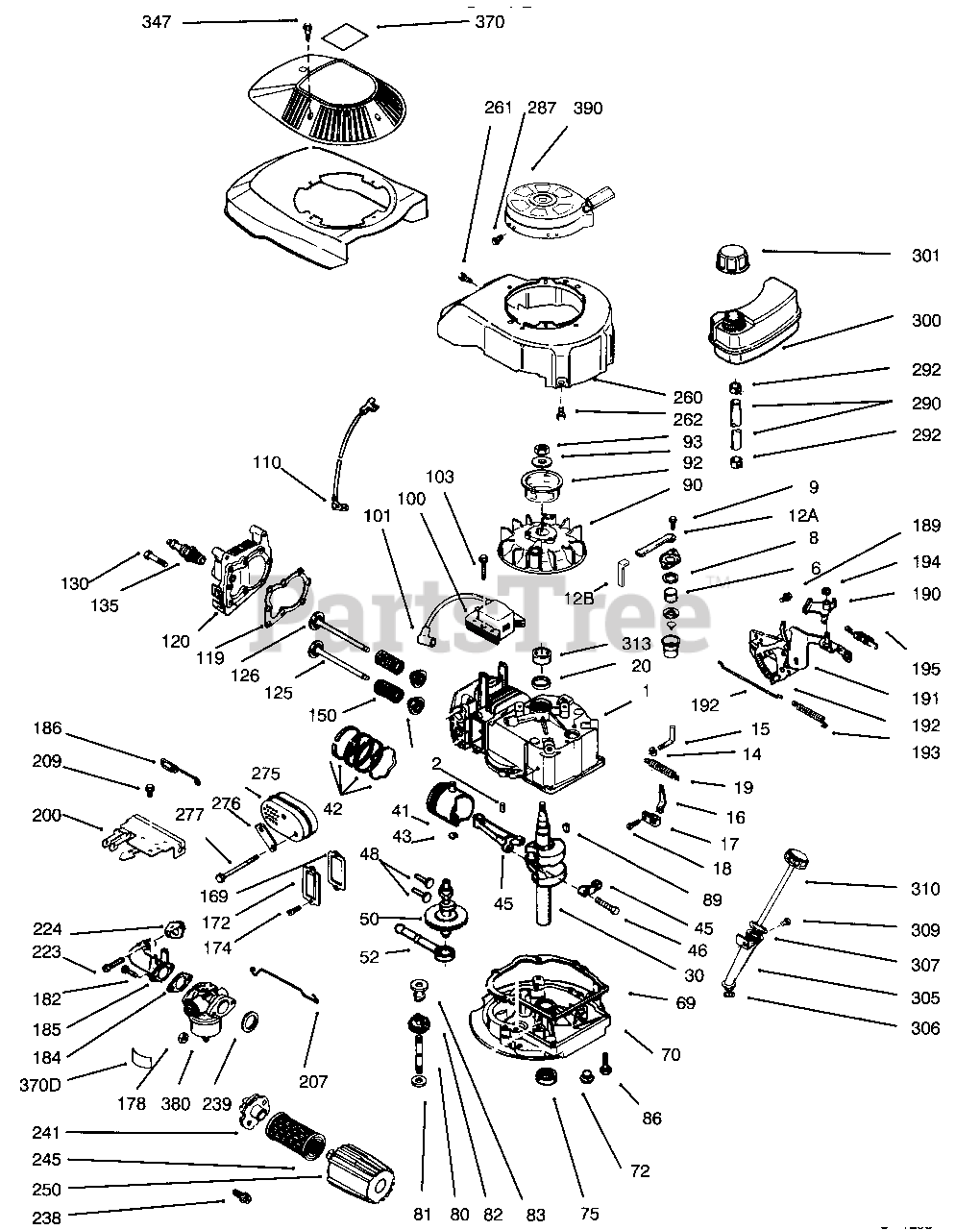

ENGINE TVS115-57901A Parts Diagram

  • Title

1

Lawn-Boy 36265

Cylinder (Incl. Ref. #2, 8, 9 & 10)
(Superseded to 704812)

$

$

Not available

2

Lawn-Boy 26727

Pin-Dowel

$

$

Currently unavailable

6

Lawn-Boy 33734

Element-Element

$

$

Currently unavailable

7

Lawn-Boy 34214A

Breather Assembly (Incl. Ref. #6, 8, 9, 12A & 12B)

Note: Not Illustrated

$

$

Currently unavailable

8

Lawn-Boy 33735

Gasket-Breather

$

$

Currently unavailable

9

Lawn-Boy 30200

Screw

$

$

Currently unavailable

12A

Lawn-Boy 33886

Tube-Breather

$

$

Currently unavailable

12B

Lawn-Boy 34695

Elbow-Breather Tube

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer-Flat

$

$

Currently unavailable

15

Lawn-Boy 30589

Rod-Governor

$

$

Currently unavailable

16

Lawn-Boy 31383A

Lever-Governor

$

$

Currently unavailable

17

Lawn-Boy 31335

Clamp-Governor Lever

$

$

Currently unavailable

18

Lawn-Boy 650548

Screw

$

$

Currently unavailable

19

Lawn-Boy 35998

Spring-Extension

$

$

Currently unavailable

20

Lawn-Boy 32600

Seal-oil

$

$

Currently unavailable

30

Lawn-Boy 36256

Crankshaft

$

$

Currently unavailable

41

Lawn-Boy 36071

Piston & Pin Assembly (.010 O.S. Incl. Ref. #43)

$

$

Currently unavailable

Lawn-Boy 36070

Piston & Pin Assembly (Std. Incl. Ref. #43)

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 36072

Piston & Pin Assembly (.020 O.S. Incl. Ref. #43)

Note: Not Illustrated

$

$

Currently unavailable

42

Lawn-Boy 36076

Set-Rings (Std)

$

$

Currently unavailable

Lawn-Boy 36078

Set-Rings (.020 O.S.)

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 36077

Set-Rings (.010 O.S.)

Note: Not Illustrated

$3.23

$

Usually ships in 3-6 days

0

43

Lawn-Boy 20381

Retainer-Piston Pin

$

$

Currently unavailable

45

Lawn-Boy 30963B

Rod-Connecting (Incl. Ref. #46)

$

$

Currently unavailable

46

Lawn-Boy 32610A

Bolt-Connecting Rod

$

$

Currently unavailable

48

Lawn-Boy 27241

Lifter-Valve

$

$

Currently unavailable

50

Lawn-Boy 35992

Camshaft

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump Assembly

$

$

Currently unavailable

69

Lawn-Boy 35261

Gasket

$

$

Currently unavailable

70

Lawn-Boy 34311D

Flange-Mounting (Incl. Ref. #72, 75, 80, 82, 83, 311 & 312)

$

$

Currently unavailable

72

Lawn-Boy 36083

Plug-Oil

$

$

Currently unavailable

75

Lawn-Boy 27897

Seal-Oil

$

$

Currently unavailable

80

Lawn-Boy 30574A

Shaft-Governor

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer-Flat

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Shaft Assembly

$

$

Currently unavailable

83

Lawn-Boy 30588A

Spool-Governor

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

$

$

Currently unavailable

89

Lawn-Boy 611004

Key-Flywheel

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

$

$

Not available

92

Lawn-Boy 650815

Washer-Belleville

$

$

Currently unavailable

93

Lawn-Boy 650816

Nut-Flywheel

$

$

Currently unavailable

100

Lawn-Boy 34443A

Solid State

$

$

Currently unavailable

101

Lawn-Boy 610118

Cover-Spark Plug

$

$

Currently unavailable

103

Lawn-Boy 650814

Screw

$

$

Currently unavailable

110

Lawn-Boy 34961

Wire-Ground

$

$

Currently unavailable

119

Lawn-Boy 33554A

Gasket-Cylinder Head

$

$

Currently unavailable

120

Lawn-Boy 34342

Head-Cylinder

$

$

Currently unavailable

125

Lawn-Boy 29315C

Valve-Exhaust (1/32 O.S. Incl. Ref. #151)

$

$

Currently unavailable

Lawn-Boy 29313C

Valve-Exhaust (Std Incl. Ref. #151)

Note: Not Illustrated

$

$

Currently unavailable

126

Lawn-Boy 29315C

Valve-Intake (1/32 O.S. Incl. Ref. #151)

$

$

Currently unavailable

Lawn-Boy 29314B

Valve-Intake (Std Incl. Ref. #151)

Note: Not Illustrated

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer

$

$

Currently unavailable

129

Lawn-Boy 650818

Screw

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

$

$

Currently unavailable

135

Lawn-Boy 35395

Spark Plug (RJ19LM)

$

$

Currently unavailable

150

Lawn-Boy 35991

Spring-Valve

$

$

Currently unavailable

151

Lawn-Boy 31673

Cap-Valve Spring
(Superseded to 742357)

$

$

Not available

169

Lawn-Boy 27234A

Gasket-Valve Spring

$

$

Currently unavailable

172

Lawn-Boy 32755

Cover-Valve Spring
(Superseded to 740513)

$

$

Not available

174

Lawn-Boy 650128

Screw

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut/Washer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw
(Superseded to 111-1250)

$

$

Not available

184

Lawn-Boy 26756

Gasket-Carburetor

$

$

Currently unavailable

185

Lawn-Boy 31384A

Pipe-Intake (Incl. Ref. #224)

$

$

Currently unavailable

186

Lawn-Boy 36255

Link-Governor Spring

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw

$

$

Currently unavailable

190

Lawn-Boy 35831

Lever-Brake

$

$

Currently unavailable

191

Lawn-Boy 35039B

Bracket-Brake

$

$

Currently unavailable

192

Lawn-Boy 34966

Link-Control

$

$

Currently unavailable

193

Lawn-Boy 35830

Spring-Brake

$

$

Currently unavailable

194

Lawn-Boy 32309

ring-Retaining

$

$

Currently unavailable

195

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

200

Lawn-Boy 35999

Control Bracket Assembly

$

$

Currently unavailable

207

Lawn-Boy 36200

Link-Throttle

$

$

Currently unavailable

209

Lawn-Boy 30200

Screw

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw

$

$

Currently unavailable

224

Lawn-Boy 34690A

Gasket-Intake Pipe

$

$

Currently unavailable

238

Lawn-Boy 650932

Screw

$

$

Currently unavailable

239

Lawn-Boy 34338

Gasket-Air Cleaner

$

$

Currently unavailable

241

Lawn-Boy 35797

Collar-Air Cleaner

$

$

Currently unavailable

245

Lawn-Boy 35066

Filter-Air Cleaner

$

$

Currently unavailable

250

Lawn-Boy 35986

Cover-Air Cleaner

$

$

Currently unavailable

260

Lawn-Boy 35826

Housing-Blower

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw

$

$

Currently unavailable

275

Lawn-Boy 35603

Muffler (Incl. Ref. #277)

$

$

Currently unavailable

276

Lawn-Boy 33753

Plate-Lock

$

$

Currently unavailable

277

Lawn-Boy 650795

Screw

$

$

Currently unavailable

285

Lawn-Boy 35000

Hub-Starter

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

$

$

Currently unavailable

290

Lawn-Boy 34357

Line-Fuel

$

$

Currently unavailable

292

Lawn-Boy 26460

Clamp-Fuel Line

$

$

Currently unavailable

300

Lawn-Boy 35586

Tank-Fuel (Incl. Ref. #292 & 301)
(Superseded to 704776)

$

$

Not available

301

Lawn-Boy 35355

Cap-Fuel

$

$

Currently unavailable

302

Lawn-Boy 35480

Retainer-Cap
(Superseded to 704760)

$

$

Not available

305

Lawn-Boy 35819A

Tube Fill

$

$

Currently unavailable

306

Lawn-Boy 35499

"O" Ring

$

$

Currently unavailable

307

Lawn-Boy 34265

"O" Ring

$

$

Currently unavailable

309

Lawn-Boy 650936

Screw

$

$

Currently unavailable

310

Lawn-Boy 36259

Dipstick

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer-Flywheel

$

$

Currently unavailable

347

Lawn-Boy 650898

Screw

$

$

Currently unavailable

370

Lawn-Boy 35977

Decal-Caution

$

$

Currently unavailable

370D

Lawn-Boy 36260

Decal-Primer

$

$

Currently unavailable

380

Lawn-Boy 632078A

Carburetor (Incl. Ref. #184)

$

$

Currently unavailable

390

Lawn-Boy 590637

Starter-Recoil

$

$

Currently unavailable

400

Lawn-Boy 35997

Set-Gasket

Note: Not Illustrated

$

$

Currently unavailable
