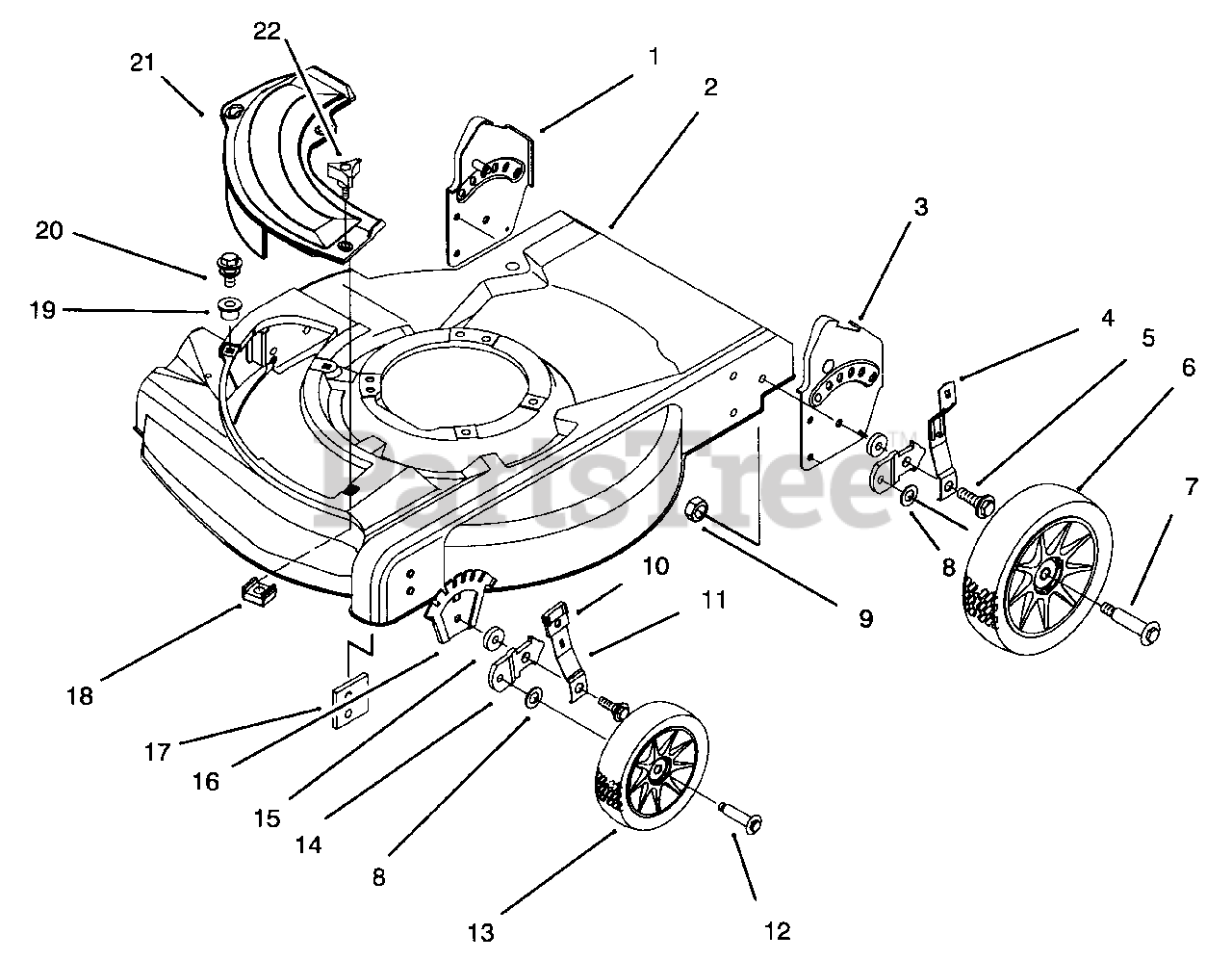

10211 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-7742

Bracket-Handle R.H. (Model No. 10211 Only)

$

$

Not available

2

Lawn-Boy 16-4359

Housing (Model No. 10211 Only)
(Superseded to 98-4471)

$

$

Not available

3

Lawn-Boy 92-7743

Bracket-Handle L.H. (Model No. 10211 Only)

$

$

Not available

4

Lawn-Boy 92-1005

Arm-Spring (Model No. 10211 Only)

$21.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 614672

Bolt-Shoulder Height Adj. (Qt'y (2) Model No. 10312 Only)

$2.99

$

In Stock, Qty 9

0

6

Lawn-Boy 684777

Wheel & Tire Ass'y 8" (Model No. 10211 Only)

$52.99

$

In Stock, Qty 8

0

7

Lawn-Boy 614650

Bolt-Shoulder (Model No. 10211 Only)

$4.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 40-1940

Washer (Qt'y (2) Model No. 10312 Only)

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 3239-39

Nut-Lock (Model No. 10211 Only)
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 614687

Arm-Spring

$21.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 92-1099

Bolt-Shoulder

$7.49

$

In Stock, Qty 10

0

13

Lawn-Boy 684776

Wheel & Tire Ass'y 6"

$33.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 614637

Bracket-Wheel Height Adj. (Qt'y (2) Model No. 10312 Only)
(Superseded to 95-7403-03)

$

$

Not available

15

Lawn-Boy 92-4890

Washer (Qt'y (2) Model No. 10312 Only)

$8.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-4481

Plate-Height Adj.
(Superseded to 92-4241)

$

$

Not available

17

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 613765

Nut-Cage (Model No. 10211 Only)

$8.49

$

In Stock, Qty 11

0

19

Lawn-Boy 604604

Grommet-Plastic
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 614677

Screw-Sems Thr'd Form.

$3.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

22

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0
