10212 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE TVS120-63926M Parts Diagram

Silver Series Walk-Behind Mower

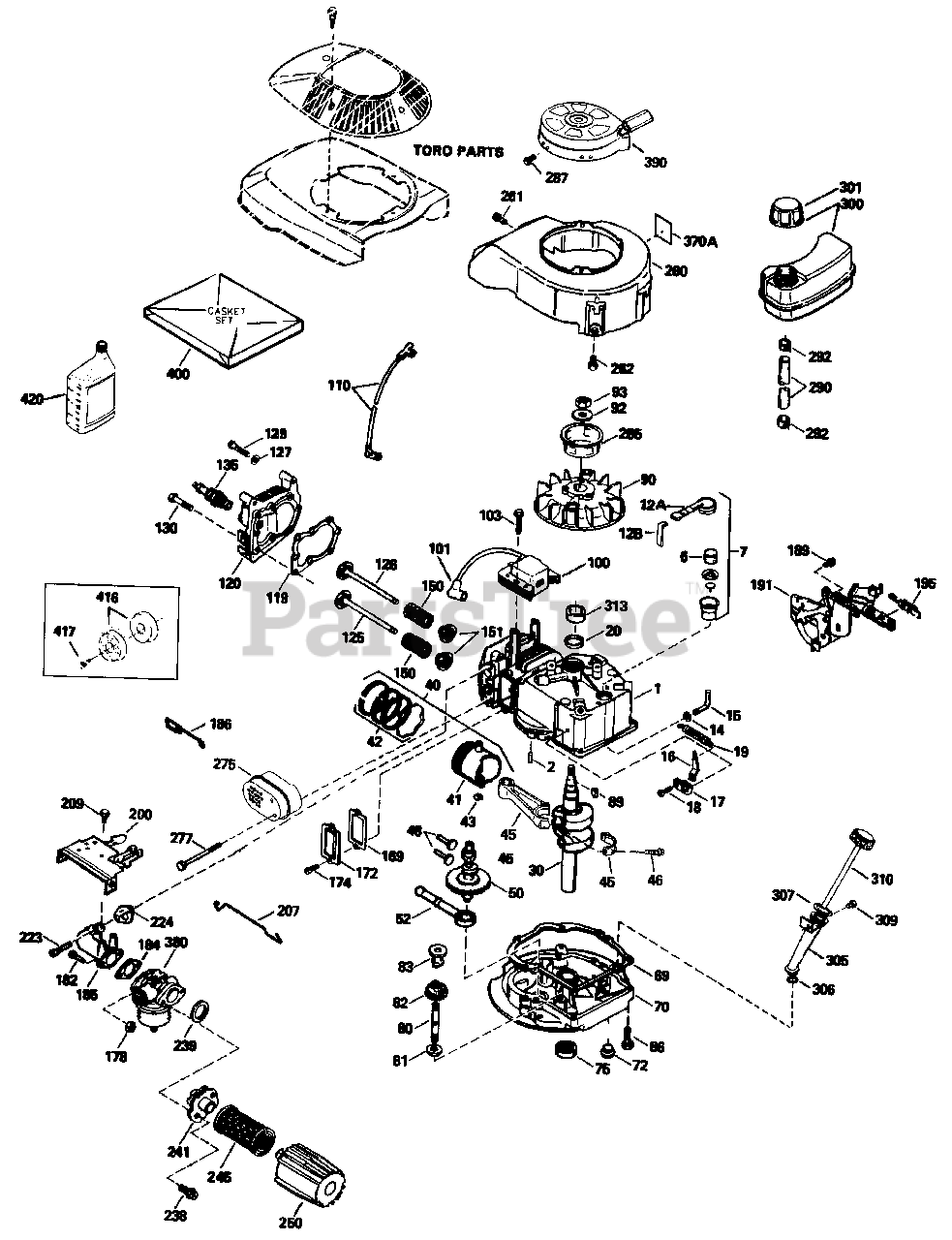

ENGINE TVS120-63926M Parts Diagram

  • Title

1

Lawn-Boy 36478A

Cylinder (Incl. 2, 7, 20 & 125)

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

$

$

Currently unavailable

6

Lawn-Boy 33734

Breather Element

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather Body Ass'y.(Incl. 6 & 12A)

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover & Tube (Incl. 12B)

$

$

Currently unavailable

12B

Lawn-Boy 34695

Breather Tube Elbow

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod (Incl. 14)

$

$

Currently unavailable

16

Lawn-Boy 32651

Governor Lever

$

$

Currently unavailable

17

Lawn-Boy 31335

Governor Lever Clamp

$

$

Currently unavailable

18

Lawn-Boy 650548

Screw

$

$

Currently unavailable

19

Lawn-Boy 35998

Extension Spring

$

$

Currently unavailable

20

Lawn-Boy 32600

Oil Seal

$

$

Currently unavailable

30

Lawn-Boy 36597

Crankshatt

$

$

Currently unavailable

40

Lawn-Boy 36073

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Lawn-Boy 36074

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

40

Lawn-Boy 36075

Piston, Pin & Ring Set (.020" OS)

$

$

Currently unavailable

41

Lawn-Boy 36070

Piston & Pin Ass'y. (Std.) (Incl. 43)

$

$

Currently unavailable

41

Lawn-Boy 36071

Piston & Pin Ass'y. (.010" OS) (Incl. 43)

$

$

Currently unavailable

41

Lawn-Boy 36072

Piston & Pin Ass'y. (.020" OS) (Incl. 43)

$

$

Currently unavailable

42

Lawn-Boy 36076

Ring Set (Std.)

$

$

Currently unavailable

42

Lawn-Boy 36077

Ring Set (.010" OS)

$3.23

$

Usually ships in 3-6 days

0

42

Lawn-Boy 36078

Ring Set (.020" OS)

$

$

Currently unavailable

43

Lawn-Boy 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Lawn-Boy 32875

Connecting Rod Ass'y. (Incl. 46)

$

$

Currently unavailable

46

Lawn-Boy 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Lawn-Boy 27241

Valve Lifter

$

$

Currently unavailable

50

Lawn-Boy 35992

Camshatt (MCR)

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump Ass'y.

$

$

Currently unavailable

69

Lawn-Boy 35261

Mounting Flange Gasket

$

$

Currently unavailable

70

Lawn-Boy 34311D

Mounting Flange (Incl. 72 thru 83)

$

$

Currently unavailable

72

Lawn-Boy 36083

Oil Drain Plug

$

$

Currently unavailable

75

Lawn-Boy 27897

Oil Seal

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear Ass'y. (Incl. 81)

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

$

$

Currently unavailable

89

Lawn-Boy 611004

Flywheel Key

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

$

$

Not available

92

Lawn-Boy 650815

Belleville Washer

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

$

$

Currently unavailable

100

Lawn-Boy 34443A

Solid State Ignition

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15,

$

$

Currently unavailable

110

Lawn-Boy 34961

Ground Wire

$

$

Currently unavailable

119

Lawn-Boy 36477

Cylinder Head Gasket

$

$

Currently unavailable

120

Lawn-Boy 36476

Cylinder Head

$

$

Currently unavailable

125

Lawn-Boy 36471

Exhaust Valve (Std.) (Incl. 151)

$

$

Not available

125

Lawn-Boy 36472

Exhaust Valve (1/32" OS) (Incl. 151)
(Superseded to 742719)

$

$

Not available

126

Lawn-Boy 29314B

Intake Valve (Std.) (Incl. 151)

$

$

Currently unavailable

126

Lawn-Boy 29315C

Intake Valve (1/32" OS) (Incl. 151)

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer

$

$

Currently unavailable

129

Lawn-Boy 650818

Screw

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug (RJ19LM)

$

$

Currently unavailable

150

Lawn-Boy 35991

Valve Spring

$

$

Currently unavailable

151

Lawn-Boy 31673

Valve Spring Cap
(Superseded to 742357)

$

$

Not available

169

Lawn-Boy 27234A

Valve Cover Gasket

$

$

Currently unavailable

172

Lawn-Boy 32755

Valve Cover
(Superseded to 740513)

$

$

Not available

174

Lawn-Boy 30200

Screw

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw
(Superseded to 111-1250)

$

$

Not available

184

Lawn-Boy 26756

Carburetor To Intake Pipe Gasket

$

$

Currently unavailable

185

Lawn-Boy 36544

Intake Pipe

$

$

Currently unavailable

186

Lawn-Boy 36255

Governor Link

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw

$

$

Currently unavailable

191

Lawn-Boy 36559

S.E. Brake Bracket (Incl. 195)
(Superseded to 704849)

$

$

Not available

195

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

200

Lawn-Boy 35999

Control Bracket

$

$

Currently unavailable

207

Lawn-Boy 36200

Throttle Link

$

$

Currently unavailable

209

Lawn-Boy 30200

Screw

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw

$

$

Currently unavailable

224

Lawn-Boy 34690A

Intake Pipe Gasket

$

$

Currently unavailable

238

Lawn-Boy 650932

Screw

$

$

Currently unavailable

239

Lawn-Boy 34338

Air Cleaner Gasket

$

$

Currently unavailable

241

Lawn-Boy 35797

Air Cleaner Collar

$

$

Currently unavailable

245

Lawn-Boy 35066

Air Cleaner Filter

$

$

Currently unavailable

250

Lawn-Boy 35986

Air Cleaner Cover

$

$

Currently unavailable

260

Lawn-Boy 35826

Blower Housing

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw

$

$

Currently unavailable

275

Lawn-Boy 36473

Muffler (Incl. 277)

$

$

Currently unavailable

277

Lawn-Boy 650988

Screw

$

$

Currently unavailable

285

Lawn-Boy 35000A

Starter Cup

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

$

$

Currently unavailable

290

Lawn-Boy 34357

Fuel Line

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

$

$

Currently unavailable

300

Lawn-Boy 35586

Fuel Tank (Incl. 292 & 301)
(Superseded to 704776)

$

$

Not available

301

Lawn-Boy 35355

Fuel Cap

$

$

Currently unavailable

305

Lawn-Boy 35819A

Oil Fill Tube

$

$

Currently unavailable

306

Lawn-Boy 34265

"O" -Ring

$

$

Currently unavailable

307

Lawn-Boy 35499

"O" -Ring

$

$

Currently unavailable

309

Lawn-Boy 651014

Screw

$

$

Currently unavailable

310

Lawn-Boy 36259

Dipstick

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

$

$

Currently unavailable

380

Lawn-Boy 632681

Carburetor (Incl. 184)

$

$

Currently unavailable

390

Lawn-Boy 590702

Rewind Starter (NOTE: This engine could have been built with 590739 starter. Refer to the design of the rope pulley strength ribs for part identification. Individual starter parts do not interchange. Refer to service bulletin 116.)

$

$

Currently unavailable

400

Lawn-Boy 36481

Gasket Set (Incl. Items Marked PK in Notes) Incl. part #'s 26756 (1), 27234A (1), 33735 (1), 34265 (1), 34338 (1), 34690A (1), 35261 (1), 36477 (1)

$

$

Currently unavailable

416

Lawn-Boy 36085

Spark Arrestor Kit (Incl. 417) (Optional)

$

$

Currently unavailable

417

Lawn-Boy 650760

Screw (Optional)

$

$

Currently unavailable

420

Lawn-Boy 730225

SAE 30 4-Cycle Engine Oil (Quart)

$

$

Currently unavailable
