1022 E (1696715-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2017) Auger Drive Group (7349Y) Parts Diagram

22" Snow Thrower, 9.5 Gross TP

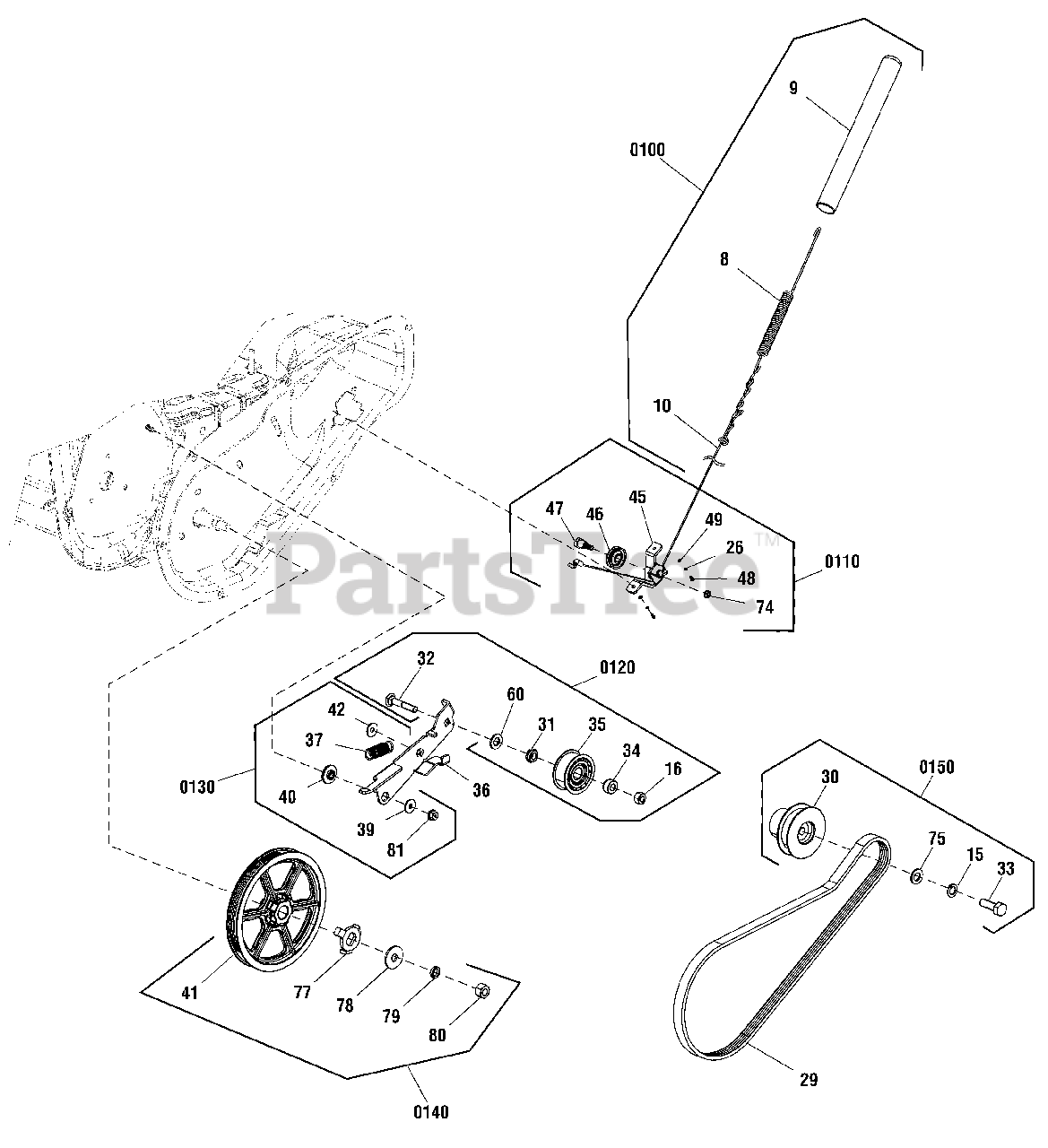

Auger Drive Group (7349Y) Parts Diagram

  • Title

29

Murray 709868

BELT, Drive

$41.99

$

In Stock, Qty 13

0

36

Murray 709927

PLATE, Tension

$13.99

$

Usually ships in 2-12 days

0

0100

Murray 709870

KIT, AUGER CABLE

Note: (Incl. Ref. Nos. 8, 9 & 10)

$54.99

$

In Stock, only 2 left!

0

8

-----

*SPRING, Cable

Note: (Included with Ref. No. 0100)

$

$

Not available

9

-----

*SLEEVE, Rubber

Note: (Included with Ref. No. 0100)

$

$

Not available

10

-----

*CABLE, Auger

Note: (Included with Ref. No. 0100)

$

$

Not available

0110

Murray 709871

KIT, CABLE BASE, AUGER DRIVE

Note: (Incl. Ref. Nos. 26, 45, 46, 47, 48, 49 & 74)

$26.99

$

Usually ships in 2-12 days

0

26

-----

*WASHER, Spring, M6

Note: (Included with Ref. No. 0110)

$

$

Not available

45

-----

*BRACKET, Cable Guide

Note: (Included with Ref. No. 0110)

$

$

Not available

46

-----

*SPOOL, Cable, Auger Control

Note: (Included with Ref. No. 0110)

$

$

Not available

47

-----

*SCREW, Hex Head Shoulder, M6x12

Note: (Included with Ref. No. 0110)

$

$

Not available

48

-----

*SCREW, Hex Head, M6x12

Note: (Included with Ref. No. 0110)

$

$

Not available

49

-----

*WASHER, Flat, 6x12x0.7

Note: (Included with Ref. No. 0110)

$

$

Not available

74

-----

*NUT, Flange Head, M6

Note: (Included with Ref. No. 0110)

$

$

Not available

0120

Murray 709872

KIT, IDLER PULLEY, TENSION PLATE

Note: (Incl. Ref. Nos. 16, 31, 32, 34, 35 & 60)

$30.99

$

Usually ships in 2-12 days

0

16

-----

*NUT, Lock, M8

Note: (Included with Ref. No. 0120)

$

$

Not available

31

-----

*PAD

Note: (Included with Ref. No. 0120)

$

$

Not available

32

-----

*BOLT, Carriage, M8x40

Note: (Included with Ref. No. 0120)

$

$

Not available

34

-----

*SPACER, Idler Pulley

Note: (Included with Ref. No. 0120)

$

$

Not available

35

-----

*PULLEY, Idler

Note: (Included with Ref. No. 0120)

$

$

Not available

60

-----

*WASHER, Flat, 10x20x1.8

Note: (Included with Ref. No. 0120)

$

$

Not available

0130

Murray 709874

KIT, HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 39, 40, 42 & 81)

$14.99

$

Usually ships in 2-12 days

0

37

Murray 709869

SPRING, Tension

Note: (Included with Ref. No. 0130)

$6.49

$

Usually ships in 2-12 days

0

39

-----

*WASHER, Flat, 6x18x1.5

Note: (Included with Ref. No. 0130)

$

$

Not available

40

-----

*SPACER, Idler Arm

Note: (Included with Ref. No. 0130)

$

$

Not available

42

-----

*WASHER, Flat, 8x22x2

Note: (Included with Ref. No. 0130)

$

$

Not available

81

-----

*NUT, Flange Head, Lock, M6

Note: (Included with Ref. No. 0130)

$

$

Not available

0140

Murray 709875

KIT, AUGER PULLEY

Note: (Incl. Ref. Nos. 41, 77, 78, 79 & 80)

$41.99

$

In Stock, Qty 20+

0

41

-----

*PULLEY, Driven

Note: (Included with Ref. No. 0140)

$

$

Not available

77

-----

*CLAW, Coupling

Note: (Included with Ref. No. 0140)

$

$

Not available

78

-----

*WASHER, Flat, 10x25x2

Note: (Included with Ref. No. 0140)

$

$

Not available

79

-----

*WASHER, Spring, M10

Note: (Included with Ref. No. 0140)

$

$

Not available

80

-----

*NUT, Lock, M10

Note: (Included with Ref. No. 0140)

$

$

Not available

0150

Murray 709876

KIT, ENGINE PULLEY

Note: (Incl. Ref. Nos. 15, 30, 33 & 75)

$42.99

$

In Stock, only 1 left!

0

15

-----

*WASHER, Spring, M10

Note: (Included with Ref. No. 0150)

$

$

Not available

30

-----

*PULLEY, Driver

Note: (Included with Ref. No. 0150)

$

$

Not available

33

-----

*BOLT, Hex 0.37-24x1.00

Note: (Included with Ref. No. 0150)

$

$

Not available

75

-----

*WASHER, Flat, 10x28x3

Note: (Included with Ref. No. 0150)

$

$

Not available
