1022 E (1696715-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2017) Auger Group (7349Y) Parts Diagram

22" Snow Thrower, 9.5 Gross TP

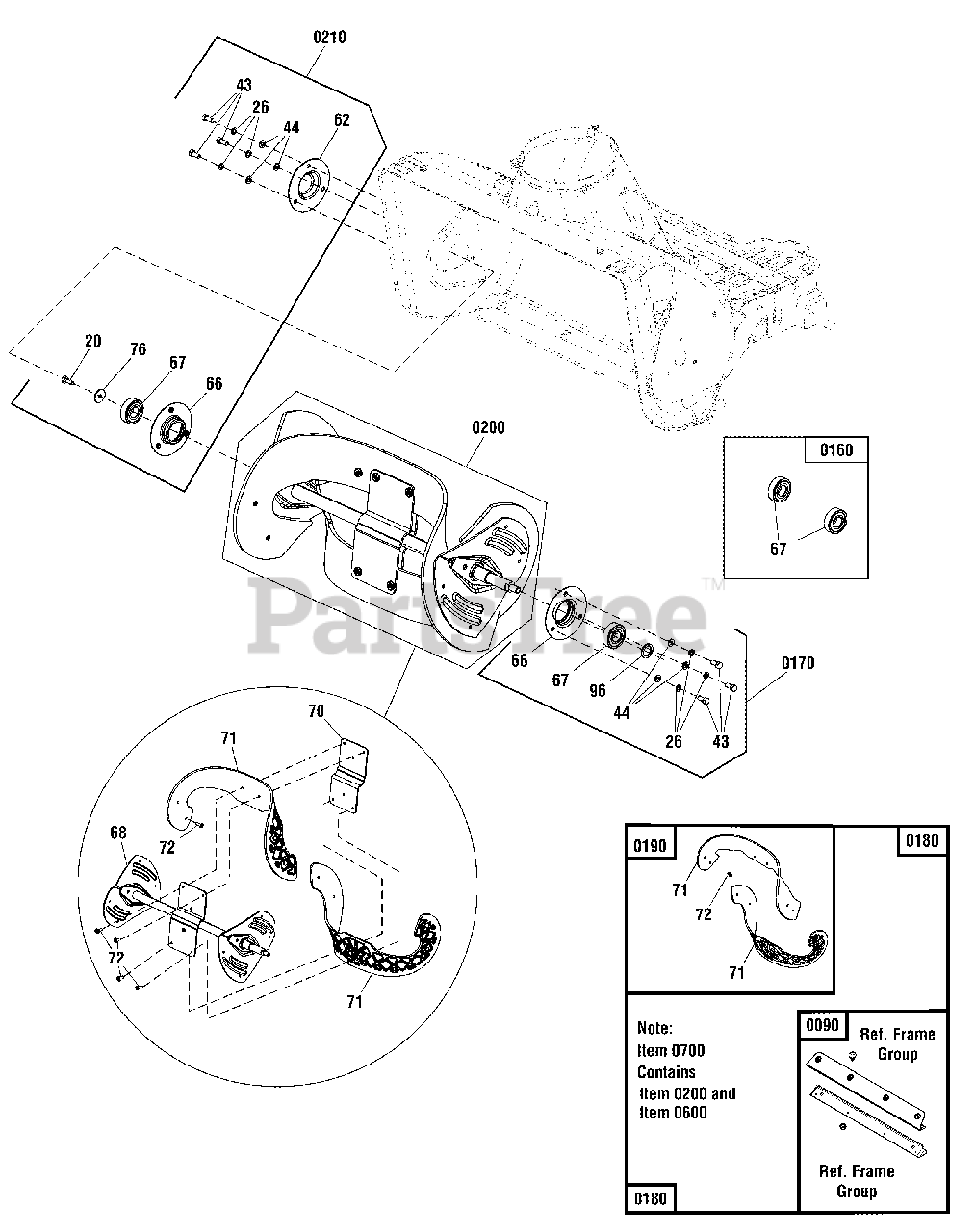

Auger Group (7349Y) Parts Diagram

  • Title

0160

Murray 709877

KIT, AUGER BEARING

Note: (Incl. Ref. Nos. 67)

$14.99

$

In Stock, only 1 left!

0

67

-----

*BEARING

Note: (Included with Ref. No. 0160)

$

$

Not available

0170

Murray 709878

KIT, AUGER BEARING, LEFT

Note: (Incl. Ref. Nos. 26, 43, 44, 66, 67 & 96)

$30.99

$

In Stock, only 1 left!

0

26

-----

*WASHER, Spring, M6

Note: (Included with Ref. No. 0170)

$

$

Not available

43

-----

*SCREW, Hex Head, Cap, M6 1.0x12mm

Note: (Included with Ref. No. 0170)

$

$

Not available

44

-----

*WASHER, Flat, 6x12x0.7

Note: (Included with Ref. No. 0170)

$

$

Not available

66

-----

*RETAINER, Bearing

Note: (Included with Ref. No. 0170)

$

$

Not available

67

-----

*BEARING

Note: (Included with Ref. No. 0170)

$

$

Not available

96

-----

*WASHER, Flat, 18x24x2

Note: (Included with Ref. No. 0170)

$

$

Not available

0180

Murray 709879

KIT, AUGER FLIGHT & SCRAPER BAR

Note: (Incl. Ref. Nos. 38, 63, 64, 65, 71 & 72)

$213.99

$

Usually ships in 2-12 days

0

38

-----

*LOCKNUT, Nylon, Thin, 1/4-20

Note: (Included with Ref. No. 0180)

$

$

Not available

63

-----

*SCREW, Allen Head, 1/4-20x.625

Note: (Included with Ref. No. 0180)

$

$

Not available

64

-----

*BAR, Scraper, Robolon

Note: (Included with Ref. No. 0180)

$

$

Not available

65

-----

*SUPPORT, Scraper

Note: (Included with Ref. No. 0180)

$

$

Not available

71

-----

*FLIGHT, Auger

Note: (Included with Ref. No. 0180)

$

$

Not available

72

-----

*SCREW, Pan Head Torx, 1/4-20 x 3/4

Note: (Included with Ref. No. 0180)

$

$

Not available

0190

Murray 1687804

KIT, AUGER FLIGHT

Note: (Incl. Ref. Nos. 71 & 72)

$107.99

$

In Stock, only 1 left!

0

71

-----

*FLIGHT, Auger

Note: (Included with Ref. No. 0190)

$

$

Not available

72

-----

*SCREW, Pan Head Torx, 1/4-20 x 3/4

Note: (Included with Ref. No. 0190)

$

$

Not available

0090

Murray 770004

KIT-SCRAPER BAR

Note: (Reference Frame group)

$86.99

$

Usually ships in 2-12 days

0

0200

Murray 709881

KIT-AUGER ASSEMBLY

Note: (Incl. Ref. Nos. 68, 70, 71 & 72)

$170.99

$

In Stock, only 2 left!

0

68

-----

*SHAFT, Auger Assembly

Note: (Included with Ref. No. 0200)

$

$

Not available

70

-----

*PLATE, Center

Note: (Included with Ref. No. 0200)

$

$

Not available

71

-----

*FLIGHT, Auger

Note: (Included with Ref. No. 0200)

$

$

Not available

72

-----

*SCREW, Pan Head Torx, 1/4-20 x 3/4

Note: (Included with Ref. No. 0200)

$

$

Not available

0210

Murray 709882

KIT, AUGER BEARING, RIGHT

Note: (Incl. Ref. Nos. 20, 26, 43, 44, 62, 66, 67 & 76)

$43.99

$

Usually ships in 2-12 days

0

20

-----

*BOLT, Hex Head, M6x16

Note: (Included with Ref. No. 0210)

$

$

Not available

26

-----

*WASHER, Spring, M6

Note: (Included with Ref. No. 0210)

$

$

Not available

43

-----

*SCREW, Hex Head, M6x12

Note: (Included with Ref. No. 0210)

$

$

Not available

44

-----

*WASHER, Flat, 6x12x0.7

Note: (Included with Ref. No. 0210)

$

$

Not available

62

-----

*CAP, Bearing

Note: (Included with Ref. No. 0210)

$

$

Not available

66

-----

*RETAINER, Bearing

Note: (Included with Ref. No. 0210)

$

$

Not available

67

-----

*BEARING

Note: (Included with Ref. No. 0210)

$

$

Not available

76

-----

*WASHER, Flat, 6x23x3

Note: (Included with Ref. No. 0210)

$

$

Not available
