1022 E (1696715-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2017) Chute Rotation Group - Manual (7349Y) Parts Diagram

22" Snow Thrower, 9.5 Gross TP

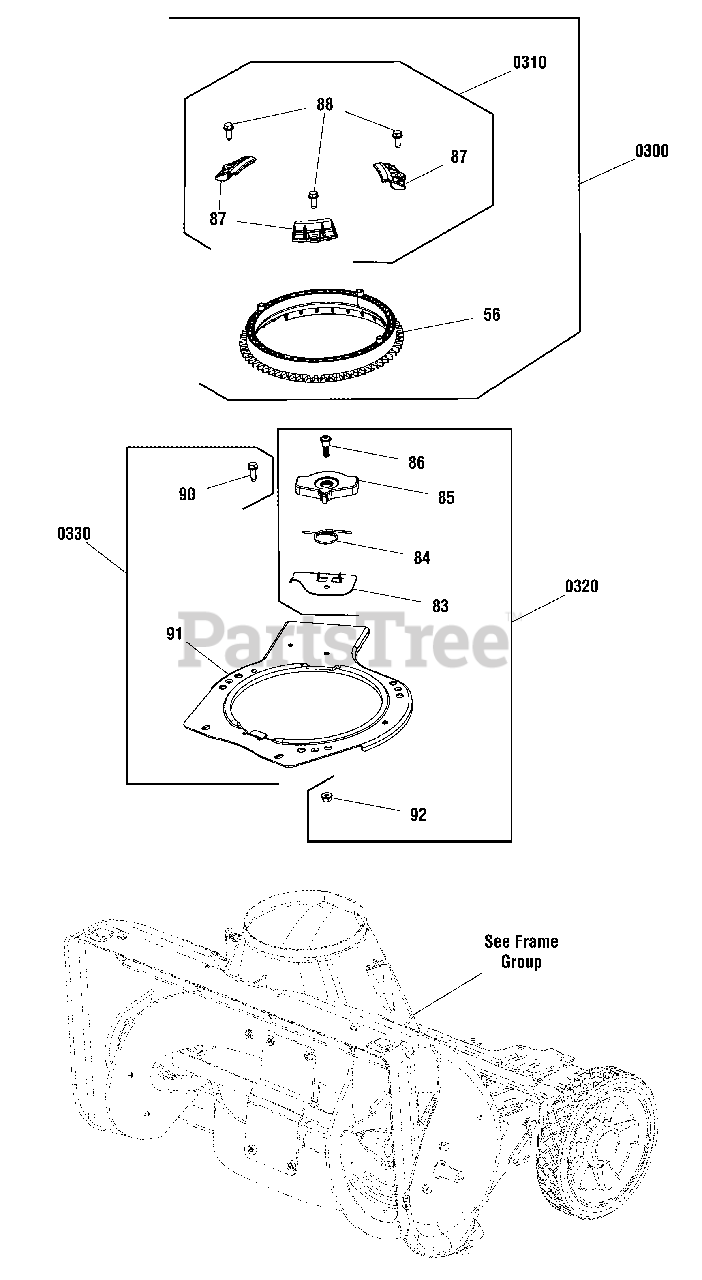

Chute Rotation Group - Manual (7349Y) Parts Diagram

  • Title

0300

Murray 709922

KIT, CHUTE GEAR

Note: (Incl. Ref. Nos. 56, 87 & 88)

$50.99

$

In Stock, only 1 left!

0

56

Murray 706509

GEAR, Chute Rotation

Note: (Included with Ref. No. 0300)

$38.99

$

In Stock, only 1 left!

0

87

Murray 706511

RETAINER, Chute Rotation

Note: (Included with Ref. No. 0300)

$5.49

$

Usually ships in 2-12 days

0

88

Murray 703054

SCREW, Hex Washer 1/4-20x.625

Note: (Included with Ref. No. 0300)

$4.49

$

In Stock, only 1 left!

0

0310

Murray 709923

KIT, CHUTE RETAINER

Note: (Incl. Ref. Nos. 87 & 88)

$10.99

$

Usually ships in 2-12 days

0

87

Murray 706511

RETAINER, Chute Rotation

Note: (Included with Ref. No. 0310)

$5.49

$

Usually ships in 2-12 days

0

88

Murray 703054

SCREW, Hex Washer 1/4-20x.625

Note: (Included with Ref. No. 0310)

$4.49

$

In Stock, only 1 left!

0

0320

Murray 709924

KIT, CHUTE ROTATION LEVER

Note: (Incl. Ref. Nos. 83, 84, 85, 86 & 92)

$19.99

$

Usually ships in 2-12 days

0

83

Murray 708714

PLATE, Base

Note: (Included with Ref. No. 0320)

$8.99

$

Usually ships in 2-12 days

0

84

Murray 708713

SPRING, Torsion

Note: (Included with Ref. No. 0320)

$4.99

$

Usually ships in 2-12 days

0

85

Murray 708712

LEVER, Chute Rotation

Note: (Included with Ref. No. 0320)

$13.99

$

Usually ships in 2-12 days

0

86

Murray 706514

SCREW, Shoulder, Button Washer Head, 1/4-20x1

Note: (Included with Ref. No. 0320)

$7.49

$

In Stock, only 1 left!

0

92

709463

NUT, Nylock Flange, 1/4-20

Note: (Included with Ref. No. 0320)

$

$

Not available

0330

Murray 709925

KIT, CHUTE ADAPTER PLATE

Note: (Incl. Ref. Nos. 90 & 91)

$60.99

$

Usually ships in 2-12 days

0

90

-----

*SCREW, Hex Washer, 1/4-20x.625

Note: (Included with Ref. No. 0330)

$

$

Not available

91

-----

*PLATE, Chute Mounting

Note: (Included with Ref. No. 0330)

$

$

Not available
