1022 E (1696715-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2017) Engine Group (7349Y) Parts Diagram

22" Snow Thrower, 9.5 Gross TP

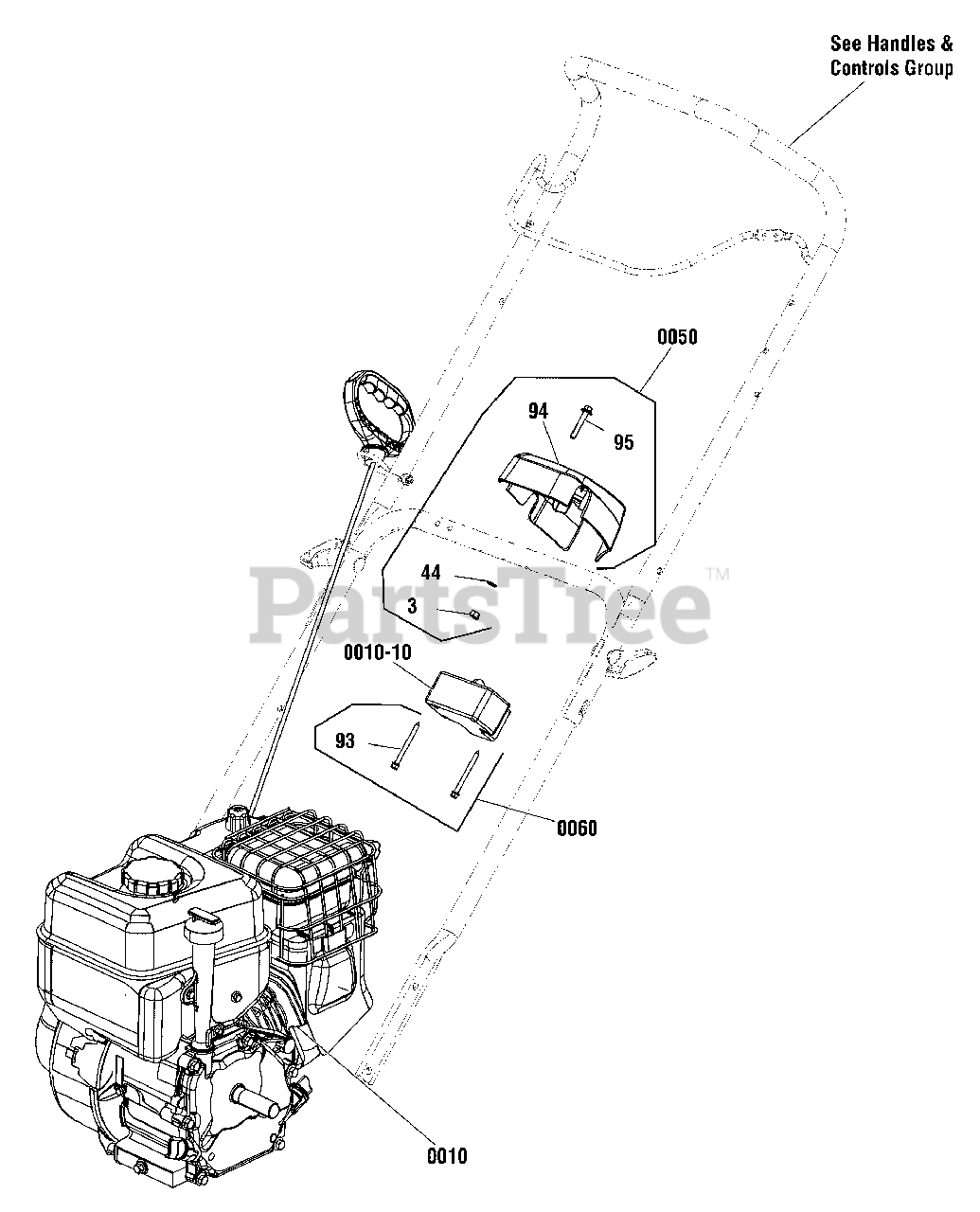

Engine Group (7349Y) Parts Diagram

  • Title

0010

Murray 13A135-0002-F1

*ENGINE, 9.5 Gross TP Briggs & Stratton

Note: (Engine Model: 13A135-0002-F1)

$

$

Currently unavailable

0010-10

-----

**STARTER, 110V

$

$

Not available

0050

Murray 709863

KIT, STARTER HOUSING

Note: (Incl. Ref. Nos. 3, 44, 94 & 95) For electric start only.

$20.99

$

Usually ships in 2-12 days

0

3

-----

***NUT, Lock, M6

Note: (Included with Ref. No. 0050)

$

$

Not available

44

-----

***WASHER, Flat, 6x12x0.7

Note: (Included with Ref. No. 0050)

$

$

Not available

94

Murray 1754873YP

HOUSING, Starter

Note: (Included with Ref. No. 0050)

$40.99

$

Usually ships in 2-12 days

0

95

-----

***SCREW, Hex Flange Head, M6x40

Note: (Included with Ref. No. 0050)

$

$

Not available

0060

Murray 709864

KIT, HARDWARE, STARTER

Note: (Incl. Ref. Nos. 93) For electric start only.

$5.49

$

Usually ships in 2-12 days

0

93

-----

***SCREW, 8-18x2.25, Washer, AB Point

Note: (Included with Ref. No. 0060)

$

$

Not available
