1022 E (1696715-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2017) Frame Group (7349Y) Parts Diagram

22" Snow Thrower, 9.5 Gross TP

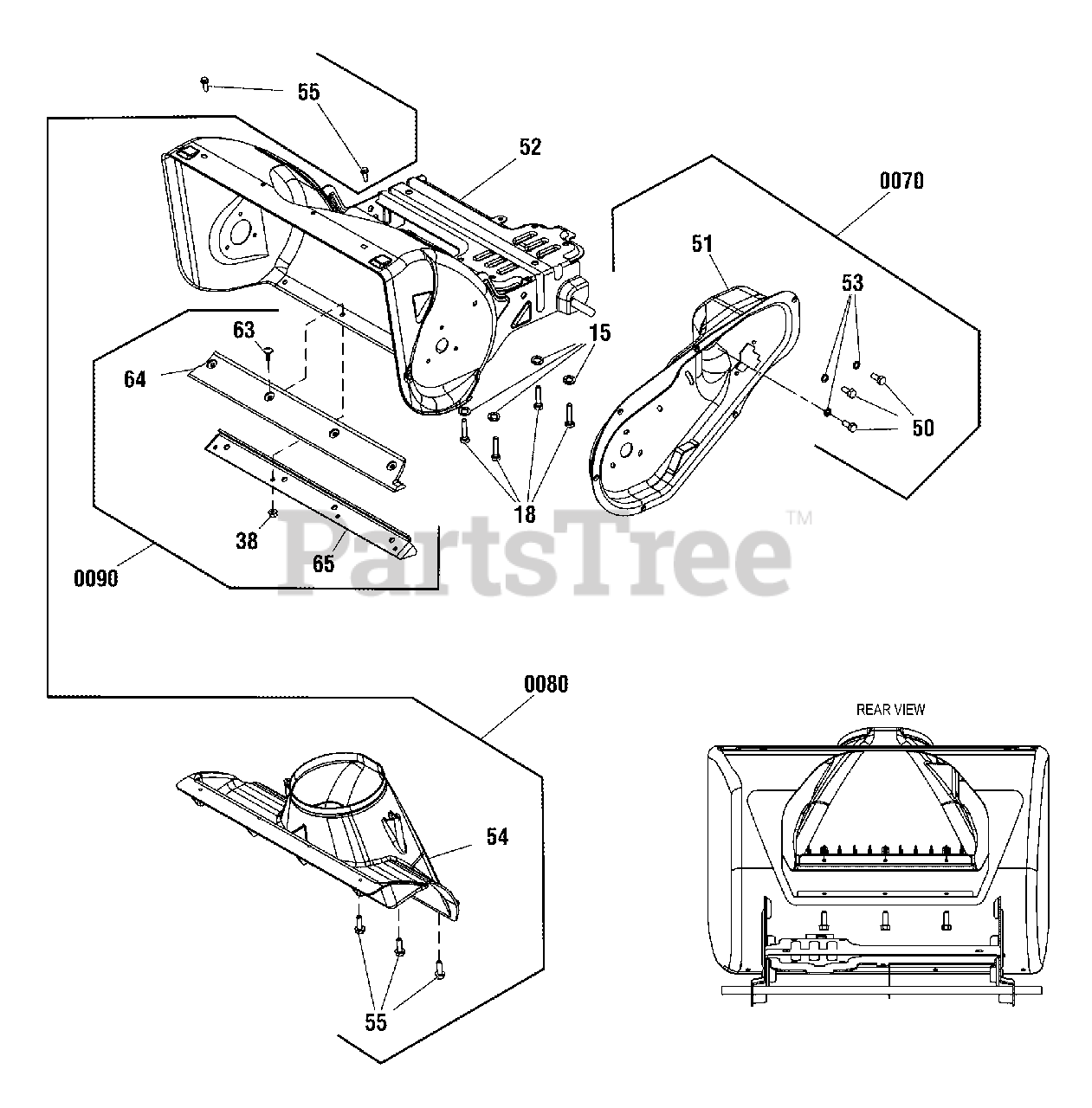

Frame Group (7349Y) Parts Diagram

  • Title

0070

Murray 709866

KIT, DRIVE HOUSING

Note: (Incl. Ref. Nos. 50, 51 & 53)

$69.99

$

Usually ships in 2-12 days

0

50

-----

*SCREW, Hex Head, Cap, 5/16-24x.625

Note: (Included with Ref. No. 0070)

$

$

Not available

51

-----

*HOUSING, Drive

Note: (Included with Ref. No. 0070)

$

$

Not available

53

-----

*LOCKWASHER, Split, 5/16

Note: (Included with Ref. No. 0070)

$

$

Not available

0080

Murray 709867

KIT, CHIMNEY

Note: (Incl. Ref. Nos. 54 & 55)

$47.99

$

Usually ships in 2-12 days

0

54

-----

*CHIMNEY

Note: (Included with Ref. No. 0080)

$

$

Not available

55

-----

*SCREW, Hex Washer, Self-Tapping

Note: (Included with Ref. No. 0080)

$

$

Not available

52

-----

*HOUSING, Auger

$

$

Not available

15

-----

*WASHER, Spring, M10

$

$

Not available

18

-----

*SCREW, Hex Head, Trilobular, 3/8-16x1-1/4

$

$

Not available

0090

Murray 770004

KIT-SCRAPER BAR

Note: (Incl. Ref. Nos. 38, 63, 64 & 65)

$86.99

$

Usually ships in 2-12 days

0

38

-----

*LOCKNUT, Nylon, Hex, 1/4-20

Note: (Included with Ref. No. 0090)

$

$

Not available

63

-----

*SCREW, Allen Head, 1/4-20x.625

Note: (Included with Ref. No. 0090)

$

$

Not available

64

-----

*BAR, Scraper, Robolon

Note: (Included with Ref. No. 0090)

$

$

Not available

65

-----

*SUPPORT, Scraper

Note: (Included with Ref. No. 0090)

$

$

Not available
