1022 E (1696715-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2017) Handles & Controls Group (7349Y) Parts Diagram

22" Snow Thrower, 9.5 Gross TP

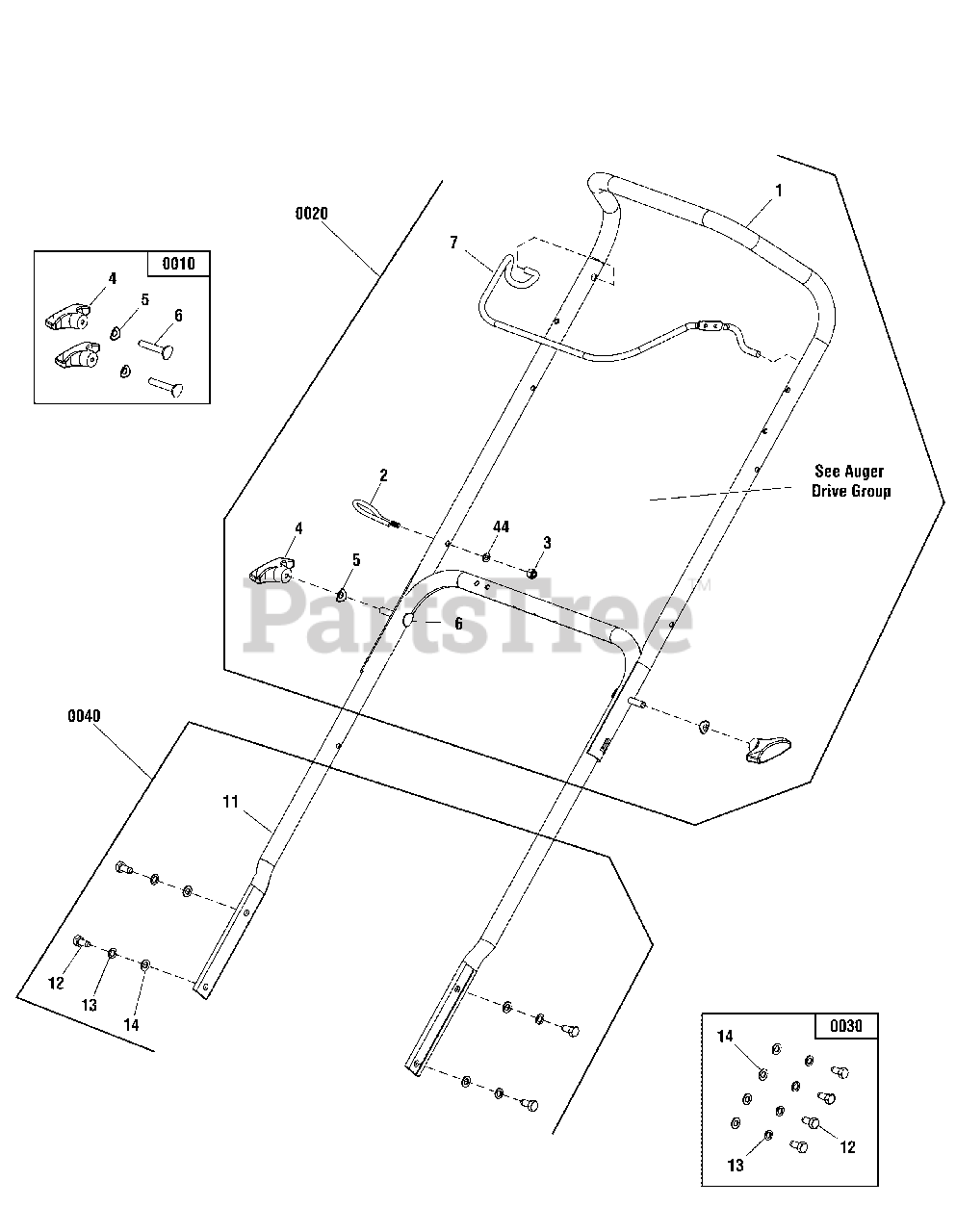

Handles & Controls Group (7349Y) Parts Diagram

  • Title

0010

Murray 709859

KIT, UPPER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 4, 5 & 6)

$19.99

$

In Stock, only 3 left!

0

4

-----

*KNOB, Handle, M8

Note: (Included with Ref. No. 0010)

$

$

Not available

5

-----

*WASHER, Curved, M8

Note: (Included with Ref. No. 0010)

$

$

Not available

6

-----

*BOLT, Carriage, Curved Head, M8x40

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Murray 709860

KIT, UPPER HANDLE

Note: (Incl. Ref. Nos. 1, 2, 3, 4, 5, 6, 7 & 44)

$100.99

$

Usually ships in 2-12 days

0

1

-----

*HANDLEBAR, Upper SS

Note: (Included with Ref. No. 0020)

$

$

Not available

2

-----

*GUIDE, Rope

Note: (Included with Ref. No. 0020)

$

$

Not available

3

-----

*NUT, Lock, M6

Note: (Included with Ref. No. 0020)

$

$

Not available

4

-----

*KNOB, Handle, M8

Note: (Included with Ref. No. 0020)

$

$

Not available

5

-----

*WASHER, Curved, M8

Note: (Included with Ref. No. 0020)

$

$

Not available

6

-----

*BOLT, Carriage, Curved Head, M8x40

Note: (Included with Ref. No. 0020)

$

$

Not available

7

Murray 709858

BAIL, Engine Stop

Note: (Included with Ref. No. 0020)

$50.99

$

In Stock, only 1 left!

0

44

-----

*WASHER, Flat, 6x12x0.7

Note: (Included with Ref. No. 0020)

$

$

Not available

0030

Murray 709861

KIT, LOWER HANDLE HARDWARE

Note: (Incl. Ref. Nos. 12, 13 & 14)

$24.99

$

Usually ships in 2-12 days

0

12

-----

*SCREW, Hex Head, M8x20

Note: (Included with Ref. No. 0030)

$

$

Not available

13

-----

*WASHER, Spring, M8

Note: (Included with Ref. No. 0030)

$

$

Not available

14

-----

*WASHER, Flat, 8x16x1.2

Note: (Included with Ref. No. 0030)

$

$

Not available

0040

Murray 709862

KIT, LOWER HANDLE

Note: (Incl. Ref. Nos. 11, 12, 13 & 14)

$68.99

$

Usually ships in 2-12 days

0

11

-----

*HANDLE, Lower

Note: (Included with Ref. No. 0040)

$

$

Not available

12

-----

*SCREW, Hex Head, M8x20

Note: (Included with Ref. No. 0040)

$

$

Not available

13

-----

*WASHER, Spring, M8

Note: (Included with Ref. No. 0040)

$

$

Not available

14

-----

*WASHER, Flat, 8x16x1.2

Note: (Included with Ref. No. 0040)

$

$

Not available
