1022 E (1696715-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2017) Wheel & Body Covering Group (7349Y_BS) Parts Diagram

22" Snow Thrower, 9.5 Gross TP

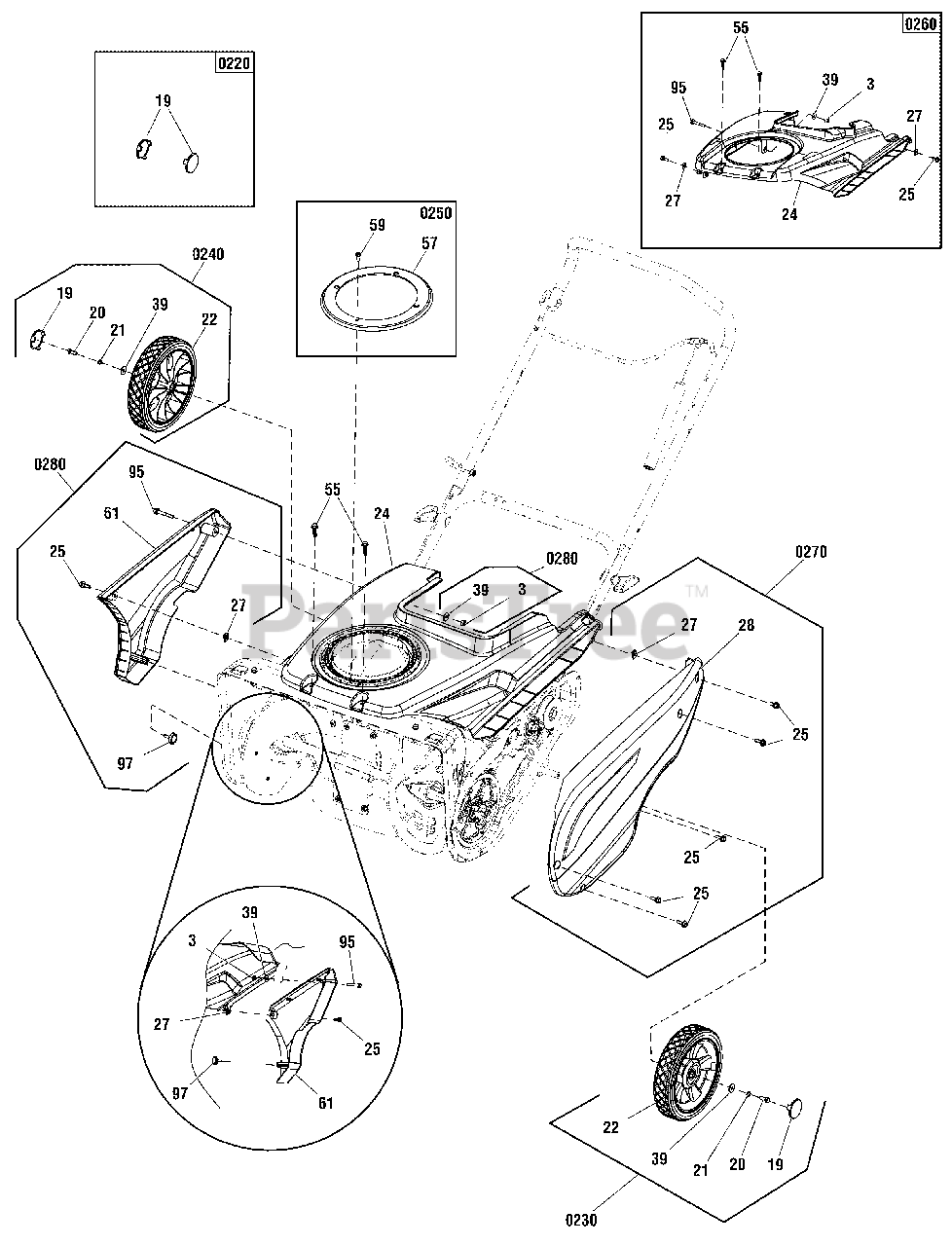

Wheel & Body Covering Group (7349Y_BS) Parts Diagram

  • Title

0220

Murray 709883

KIT, WHEEL COVER, PEWTER

Note: (Incl. Ref. Nos. 19)

$14.99

$

Usually ships in 2-12 days

0

19

-----

*COVER, End, Wheel, Pewter

Note: (Included with Ref. No. 0220)

$

$

Not available

0230

Murray 709885

KIT, WHEEL, LEFT, PEWTER

Note: (Incl. Ref. Nos. 19, 20, 21, 22 & 39)

$71.99

$

In Stock, only 1 left!

0

19

-----

*COVER, End, Wheel, Pewter

Note: (Included with Ref. No. 0230)

$

$

Not available

20

-----

*BOLT, Hex Head, M6x16

Note: (Included with Ref. No. 0230)

$

$

Not available

21

-----

*WASHER, Spring, M6

Note: (Included with Ref. No. 0230)

$

$

Not available

22

-----

*WHEEL, Left, Pewter, 1.75x8

Note: (Included with Ref. No. 0230)

$

$

Not available

39

-----

*WASHER, Flat, 6x18x1.5

Note: (Included with Ref. No. 0230)

$

$

Not available

0240

Murray 770059

KIT, WHEEL, RIGHT, PEWTER

Note: (Incl. Ref. Nos. 19, 20, 21, 22 & 39)

$62.99

$

Usually ships in 2-12 days

0

19

-----

*COVER, End, Wheel, Pewter

Note: (Included with Ref. No. 0240)

$

$

Not available

20

-----

*BOLT, Hex Head, M6x16

Note: (Included with Ref. No. 0240)

$

$

Not available

21

-----

*WASHER, Spring, M6

Note: (Included with Ref. No. 0240)

$

$

Not available

22

-----

*WHEEL, Right, Pewter, 1.75x8

Note: (Included with Ref. No. 0240)

$

$

Not available

39

-----

*WASHER, Flat, 6x18x1.5

Note: (Included with Ref. No. 0240)

$

$

Not available

0250

Murray 709887

KIT, CHUTE MOISTURE COVER

Note: (Incl. Ref. Nos. 57 & 59)

$23.99

$

Usually ships in 2-12 days

0

57

-----

*COVER, Chute Moisture

Note: (Included with Ref. No. 0250)

$

$

Not available

59

-----

*SCREW, Hex Washer, #10-HLx0.62

Note: (Included with Ref. No. 0250)

$

$

Not available

0260

Murray 709891

KIT, TOP COVER

Note: (Incl. Ref. Nos. 3, 24, 25, 27, 39, 55 & 95)

$63.99

$

Usually ships in 2-12 days

0

3

-----

*LOCKNUT, M6

Note: (Included with Ref. No. 0260)

$

$

Not available

24

-----

*COVER, Top, Continuum Charcoal

Note: (Included with Ref. No. 0260)

$

$

Not available

25

-----

*SCREW, Hex Washer Head, M6x16

Note: (Included with Ref. No. 0260)

$

$

Not available

27

-----

*CLIP NUT, M6

Note: (Included with Ref. No. 0260)

$

$

Not available

39

-----

*WASHER, Flat 6x18x1.5

Note: (Included with Ref. No. 0260)

$

$

Not available

55

-----

*SCREW, Hex Washer, Self-Tapping

Note: (Included with Ref. No. 0260)

$

$

Not available

95

-----

*SCREW, Hex Flange Head, M6x40

Note: (Included with Ref. No. 0260)

$

$

Not available

0270

Murray 709896

KIT, DRIVE CASE COVER

Note: (Incl. Ref. Nos. 25, 27 & 28)

$60.99

$

Usually ships in 2-12 days

0

25

-----

*SCREW, Hex Washer Head, M6x16

Note: (Included with Ref. No. 0270)

$

$

Not available

27

-----

*CLIP NUT, M6

Note: (Included with Ref. No. 0270)

$

$

Not available

28

-----

*COVER, Drive Case, Black

Note: (Included with Ref. No. 0270)

$

$

Not available

0280

Murray 709916

KIT, SIDE COVER, RIGHT

Note: (Incl. Ref. Nos. 3, 25, 27, 39, 61, 95 &97)

$64.99

$

Usually ships in 2-12 days

0

3

-----

*LOCKNUT, M6

Note: (Included with Ref. No. 0280)

$

$

Not available

25

-----

*SCREW, Hex Washer Head, M6x16

Note: (Included with Ref. No. 0280)

$

$

Not available

27

-----

*CLIP NUT, M6

Note: (Included with Ref. No. 0280)

$

$

Not available

39

-----

*WASHER, Flat 6x18x1.5

Note: (Included with Ref. No. 0280)

$

$

Not available

61

-----

*COVER, Side, Continuum Charcoal

Note: (Included with Ref. No. 0280)

$

$

Not available

95

-----

*SCREW, Hex Flange Head, M6x40

Note: (Included with Ref. No. 0280)

$

$

Not available

97

-----

*SCREW, Knob, Self-Tapping, M5x20

Note: (Included with Ref. No. 0280)

$

$

Not available
