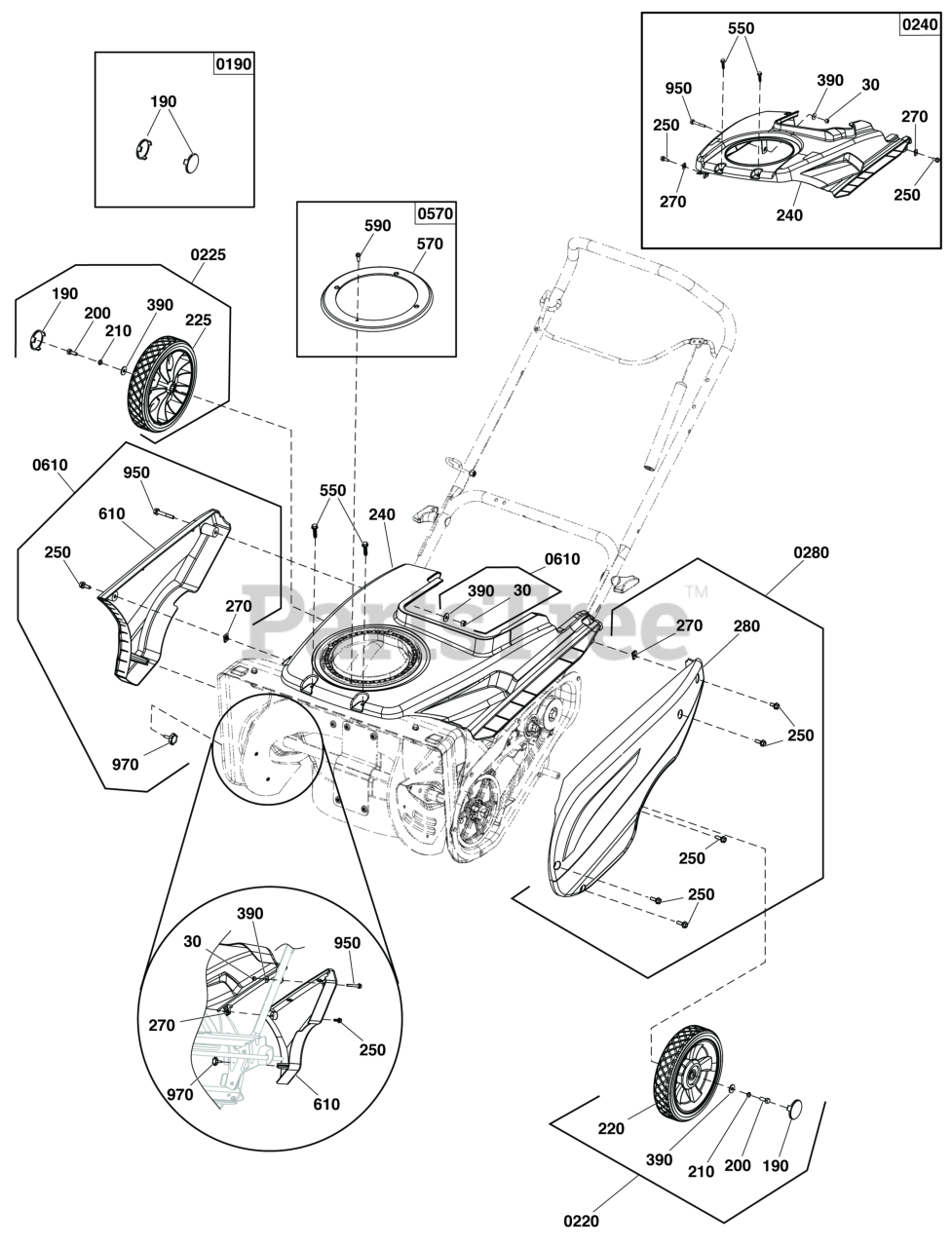

1022 E (1696715-01) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2019) Wheel & Body Covering Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

Wheel & Body Covering Group Parts Diagram

  • Title

0190

Briggs & Stratton 709883

KIT, Wheel Cover, Pewter

Note: (Incl. Ref. Nos. 190)

$15.99

$

In Stock, only 1 left!

0

190

COVER, End, Wheel, Pewter

$

$

Not available

0220

Briggs & Stratton 709885

KIT, WHEEL, LEFT, PEWTER

Note: (Incl. Ref. Nos. 190, 200, 210, 220 & 390)

$76.99

$

Usually ships in 2-12 days

0

190

COVER, End, Wheel, Pewter

$

$

Not available

200

BOLT, M6x16, Hex Head

$

$

Not available

210

WASHER, M6, Split Lock, MC

$

$

Not available

220

WHEEL, Left, 1.75 X 8, Pewter

$

$

Not available

390

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0225

Briggs & Stratton 770059

KIT, WHEEL, RIGHT, PEWTER

Note: (Incl. Ref. Nos. 190, 200, 210, 225 & 390)

$65.99

$

Usually ships in 2-12 days

0

190

COVER, End, Wheel, Pewter

$

$

Not available

200

BOLT, M6x16, Hex Head

$

$

Not available

210

WASHER, M6, Split Lock, MC

$

$

Not available

225

WHEEL, Right, 1.75 X 8, Pewter

$

$

Not available

390

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0240

Briggs & Stratton 709891

KIT, TOP COVER

Note: (Incl. Ref. Nos. 30, 240, 250, 270, 390, 550 & 950)

$67.99

$

Usually ships in 2-12 days

0

30

NUT, M6, Lock

$

$

Not available

240

COVER, Top, Continuum Charcoal

$

$

Not available

250

SCREW, M6x16, Hex Washer Head

$

$

Not available

270

NUT, M6, CLIP

$

$

Not available

390

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

550

Briggs & Stratton 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

950

SCREW, M6x40, Hex Flange Head

$

$

Not available

0280

Briggs & Stratton 709896

KIT, DRIVE CASE COVER

Note: (Incl. Ref. Nos. 250, 270 & 280)

$64.99

$

Usually ships in 2-12 days

0

250

SCREW, M6x16, Hex Washer Head

$

$

Not available

270

NUT, M6, CLIP

$

$

Not available

280

COVER, Drive Case, Black

$

$

Not available

0570

Briggs & Stratton 709887

KIT, CHUTE MOISTURE COVER

Note: (Incl. Ref. Nos. 570 & 590)

$25.99

$

Usually ships in 2-12 days

0

570

COVER, Chute Moisture

$

$

Not available

590

Briggs & Stratton 316042MA

CAPSCREW, Hex Washer Head, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0

0610

Briggs & Stratton 709916

KIT, SIDE COVER, RIGHT

Note: (Incl. Ref. Nos. 30, 250, 270, 390, 610, 950 & 970)

$68.99

$

Usually ships in 2-12 days

0

30

NUT, M6, Lock

$

$

Not available

250

SCREW, M6x16, Hex Washer Head

$

$

Not available

270

NUT, M6, CLIP

$

$

Not available

390

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

610

COVER, Side, Continuum Charcoal

$

$

Not available

950

SCREW, M6x40, Hex Flange Head

$

$

Not available

970

SCREW, M5x20, Knob, Self-Tapping

$

$

Not available
