1022 E (1696715-02) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2019) Frame Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

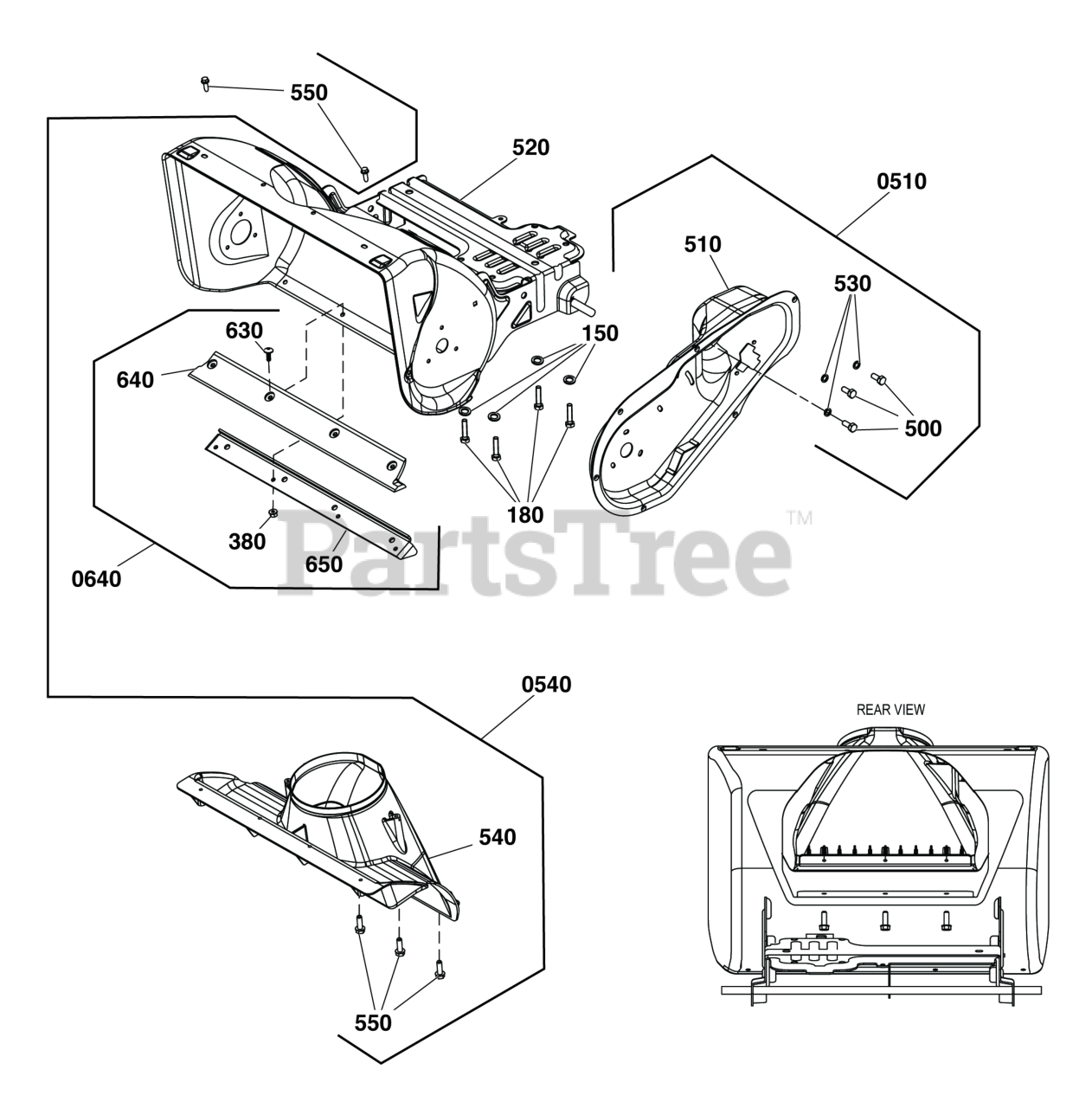

Frame Group Parts Diagram

  • Title

150

WASHER, M10, Split Lock

$

$

Not available

180

SCREW-HEX WSHR HD TAPTT 3/8-16X1.250, ZC

$

$

Not available

520

HOUSING, Auger

$

$

Not available

0510

Briggs & Stratton 709866

KIT, DRIVE HOUSING

Note: (Incl. Ref. Nos. 500, 510, 530

$73.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 1752876YP

CAPSCREW, Hex Head, 5/16-24 x 5/8

$4.49

$

In Stock, only 2 left!

0

510

HOUSING, Drive

$

$

Not available

530

Briggs & Stratton 703116

WASHER, Split Lock, .32 x .58 x .08
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

0540

Briggs & Stratton 84004738

KIT, CHIMNEY

Note: (Incl. Ref. Nos. 540, 550)

$145.99

$

Usually ships in 2-12 days

0

540

CHIMNEY

$

$

Not available

550

Briggs & Stratton 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 1960728SM)

$3.99

$

In Stock, only 4 left!

0

0640

Briggs & Stratton 770004

KIT-SCRAPER BAR

Note: (Incl. Ref. Nos. 380, 630, 640, 650)

$91.99

$

In Stock, only 2 left!

0

380

Briggs & Stratton 1752935YP

NUT, 1/4-20, Nylon Hex, CZ

$3.99

$

Usually ships in 2-12 days

0

630

Briggs & Stratton 5025299X5YP

SCREW, 1/4-20 X 5/8

$5.49

$

In Stock, only 1 left!

0

640

BAR, Scraper, Robolon

$

$

Not available

650

Briggs & Stratton 1752660AYP

SUPPORT, Scraper Blade

$29.99

$

In Stock, only 4 left!

0
