1022 EE (1696950-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2018) Light Panel Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

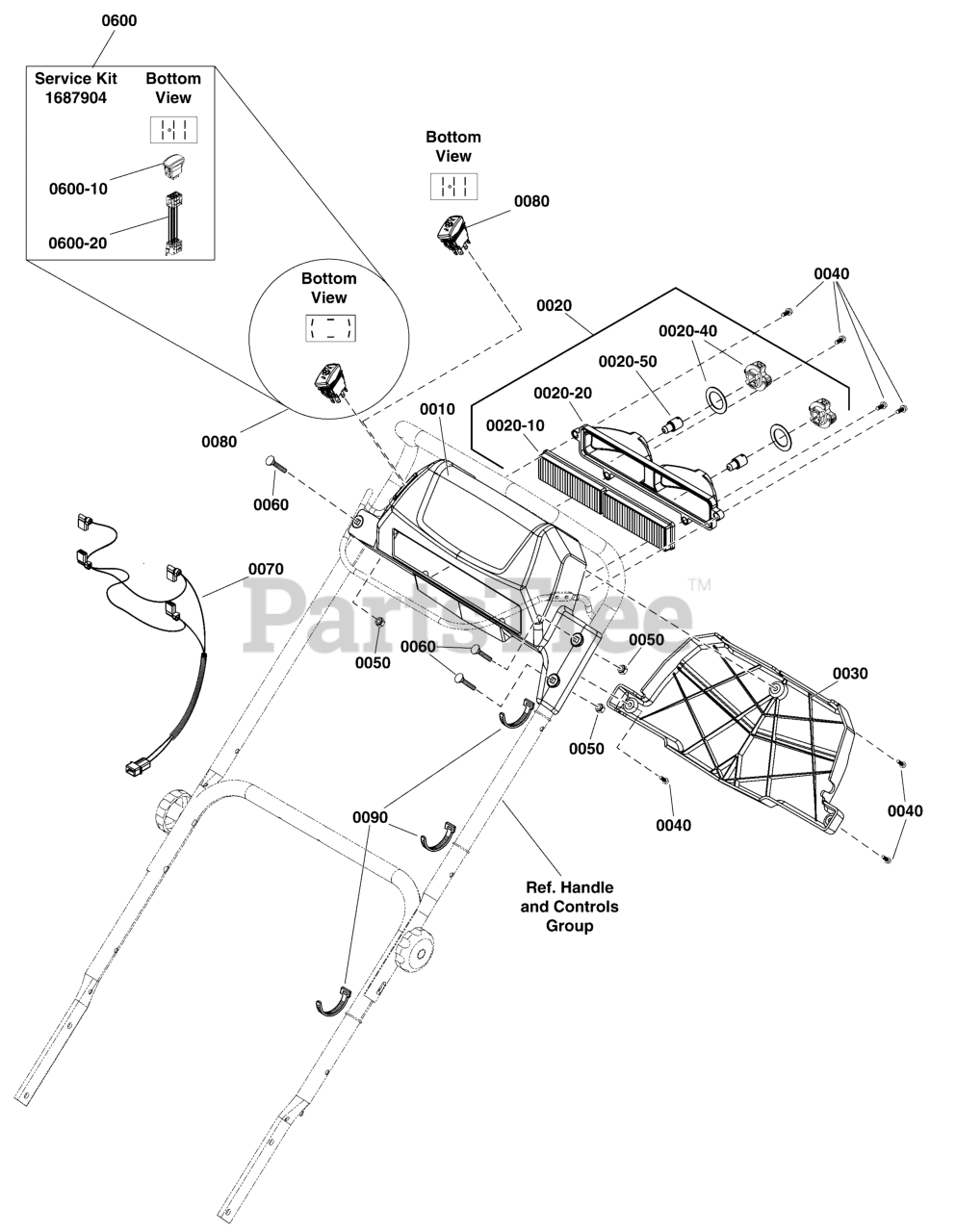

Light Panel Group Parts Diagram

  • Title

0010

Briggs & Stratton 708157

PANEL

$73.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 1736176YP

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-40, 0020-50)

$64.99

$

Usually ships in 2-12 days

0

0020-10

Briggs & Stratton 1736177YP

LENS, Twin Light
(Superseded to 1736176YP)

$64.99

$

Usually ships in 2-12 days

0

0020-20

Briggs & Stratton 1736178YP

DEFLECTOR
(Superseded to 1736176YP)

$64.99

$

Usually ships in 2-12 days

0

0020-40

Briggs & Stratton 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

In Stock, only 4 left!

0

0020-50

Briggs & Stratton 1736181YP

BULB, Headlight, 12V 15W (1156)
(Superseded to 1736176YP)

$64.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 706481

COVER, Light Panel

$33.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0050

Briggs & Stratton 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0060

Briggs & Stratton 708701

SCREW, Allen Head, 1/4-20 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 706483

HARNESS, Wiring

Note: (Used Before Serial No. 2017430819)

$33.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 708158

HARNESS, Wiring with Remote Rectifier

Note: (Used After Serial No. 2017430818)

$63.99

$

In Stock, only 1 left!

0

0080

Briggs & Stratton 1754865YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Used Before Serial No. 2017430819) (Order 0600 When Bottom View of Switch Terminal Pattern Matches 0080.)

$82.99

$

In Stock, Qty 10

0

0080

Briggs & Stratton 709954

SWITCH, Chute Rotation

Note: (Used After Serial No. 2017430818)

$46.99

$

In Stock, only 1 left!

0

0090

Briggs & Stratton 7024649YP

WIRE TIE,11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0600

Briggs & Stratton 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

$82.99

$

In Stock, Qty 10

0

0600-10

Briggs & Stratton 709954

SWITCH, Chute Rotation

$46.99

$

In Stock, only 1 left!

0

0600-20

Briggs & Stratton 84003010

HARNESS, Wire

$45.99

$

In Stock, only 1 left!

0
