1022 EE (1697294-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2020) Light Panel Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

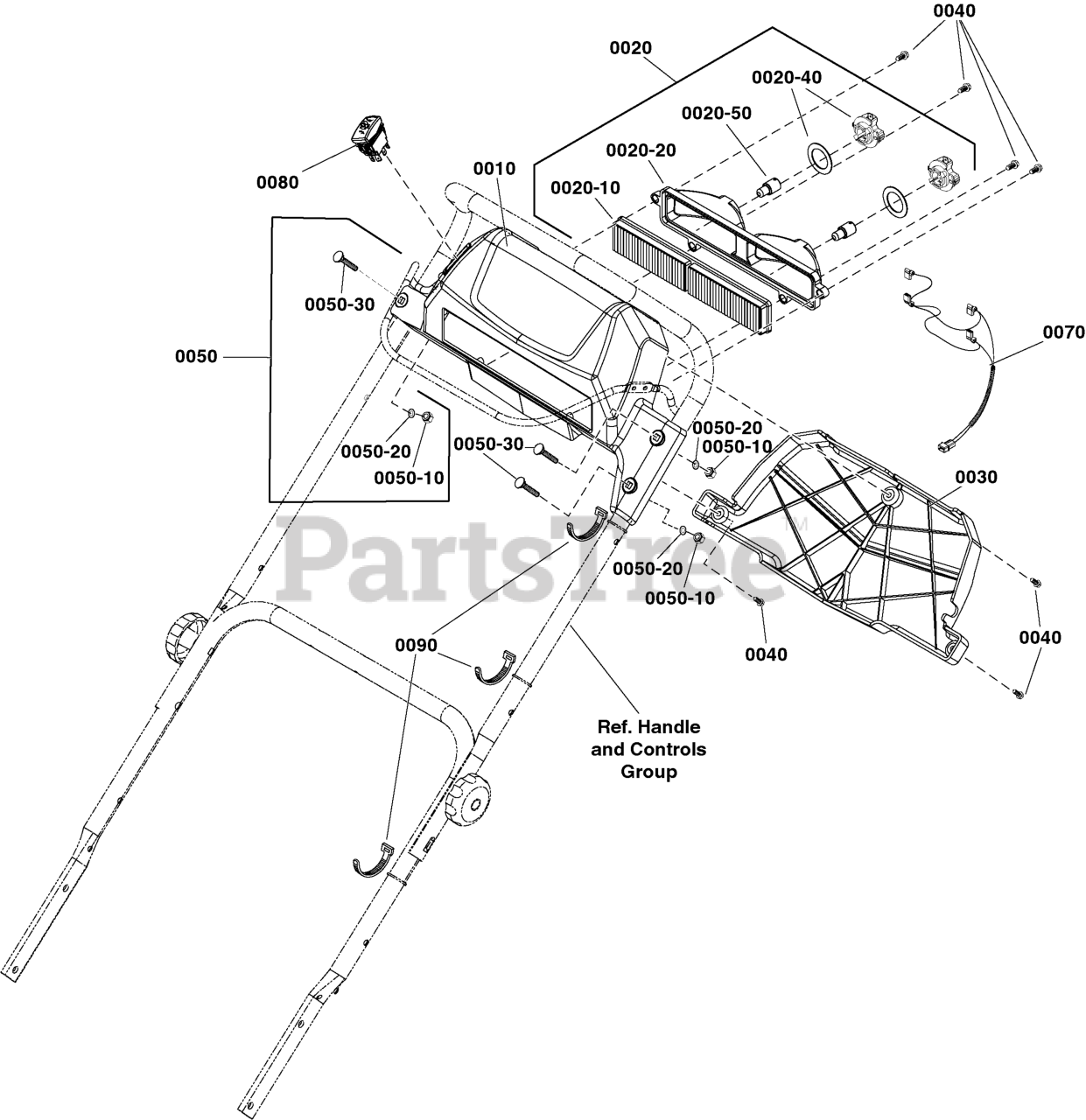

Light Panel Group Parts Diagram

  • Title

0010

Briggs & Stratton 708157

PANEL

$77.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 84006433

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-40, 0020-50)

$89.99

$

Usually ships in 2-12 days

0

0020-10

Briggs & Stratton 1736177YP

LENS, Twin Light
(Superseded to 1736176YP)

$68.99

$

Usually ships in 2-12 days

0

0020-20

Briggs & Stratton 1736178YP

DEFLECTOR
(Superseded to 1736176YP)

$68.99

$

Usually ships in 2-12 days

0

0020-40

Briggs & Stratton 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

0020-50

Briggs & Stratton 84006434

LIGHT, LED, 6W

$

$

Currently unavailable

0030

Briggs & Stratton 706481

COVER, Light Panel

$35.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 7091105YP

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 26X245MA)

$4.49

$

In Stock, Qty 10

0

0050

Briggs & Stratton 84006458

HARDWARE BAG

Note: (Includes Ref. Nos. 0050-10, 0050-20, 0050-30)

$7.99

$

Usually ships in 2-12 days

0

0050-10

NUT, Lock, M6

$

$

Not available

0050-20

WASHER, 6x12x.7, Flat

$

$

Not available

0050-30

BOLT, M6x35

$

$

Not available

0070

Briggs & Stratton 708158

HARNESS, Wiring with Remote Rectifier

$63.99

$

In Stock, only 1 left!

0

0080

Briggs & Stratton 1754865YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$87.99

$

In Stock, only 3 left!

0

0090

Briggs & Stratton 7024649YP

WIRE TIE,11 Inch Standard Black Nylon

$5.49

$

Usually ships in 2-12 days

0
