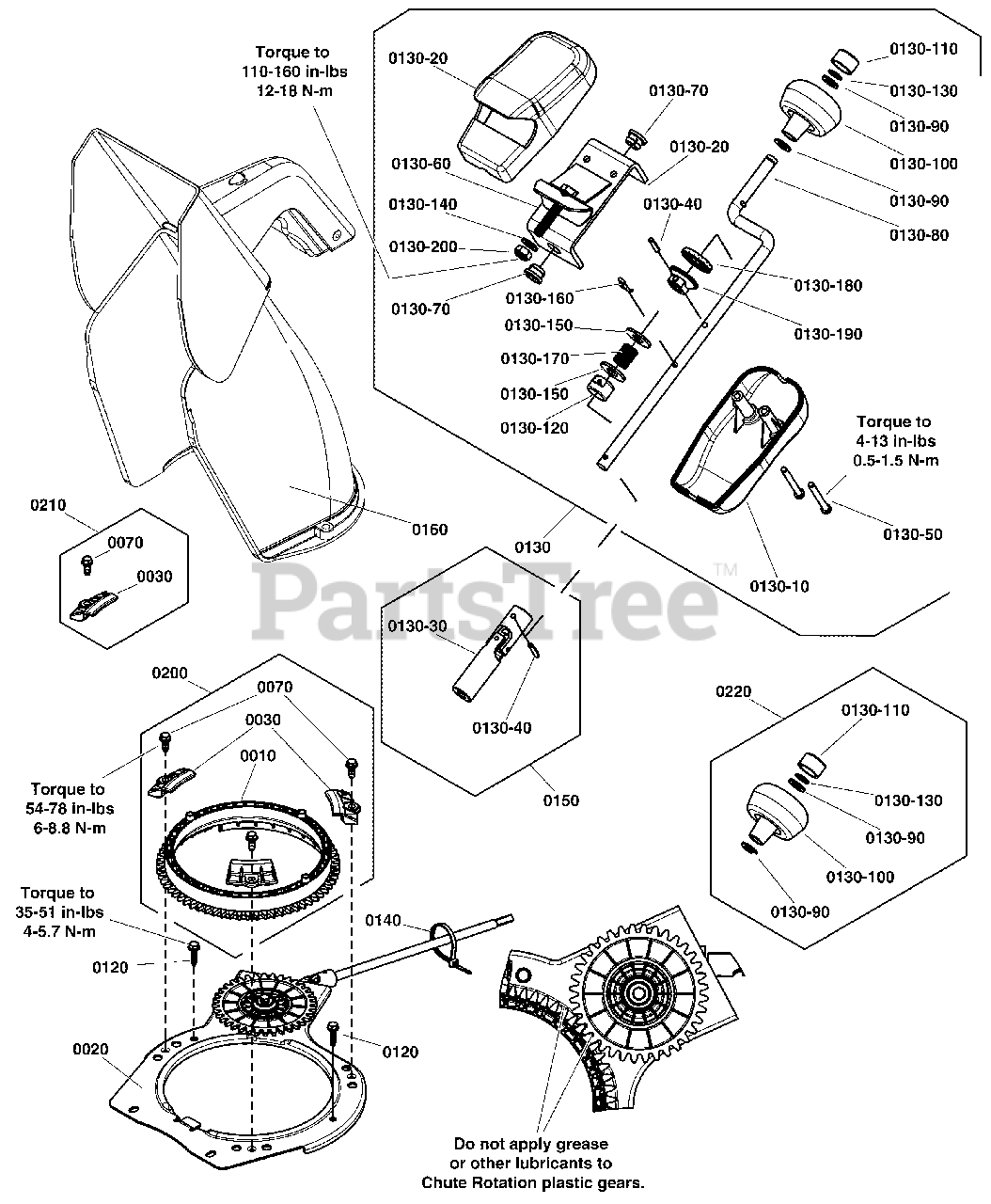

1022 ER (1696846-00) - Simplicity 22" Snow Thrower, 9.5hp Chute Rotation Group Parts Diagram

22" Snow Thrower, 9.5hp

Chute Rotation Group Parts Diagram

  • Title

0020

Simplicity 770634

REMOTE CHUTE ASSEMBLY, Plate

$146.99

$

In Stock, only 1 left!

0

0120

Simplicity 706516

SCREW, Hi-Low, 1/4-15 x 1

$3.49

$

In Stock, only 2 left!

0

0130

Simplicity 770633

REMOTE CHUTE ASSEMBLY, Handle

Note: (Incl. Ref. Nos. 130-10 Thru 0130-200)

$63.99

$

Usually ships in 2-12 days

0

0130-10

COVER, Bottom

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-20

COVER, Top

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-50

SCREW, 4.8x45, Phillips Head Self Tapping

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-60

ASSEMBLY, Rotater Bracket

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-70

RING, SJ Mounting Plate, Plastic

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-80

LEVER, Rotator

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-90

WASHER, 10x20x1, Flat

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-100

KNOB, Chute Rotator

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-110

KNOB, Cover

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-120

SLEEVE, Limit

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-130

RING, External Retaining, 10

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-140

WASHER, 8x16x1.6, Flat

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-150

WASHER, 10X25X2, Flat

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-160

PIN, 2.5X16, Cotter

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-170

SPRING

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-180

WASHER, Rubber, XX

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-190

BUSHING, Remote

Note: (Included with Ref. No. 0130)

$

$

Not available

0130-200

NUT, M8, Lock

Note: (Included with Ref. No. 0130)

$

$

Not available

0140

Simplicity 1740650MA

TIE, Cable, 7.4", Orange

$

$

Not available

0150

Simplicity 770635

UNIVERSAL JOINT

Note: (Incl. Ref. Nos. 0130-30 & 0130-40)

$36.99

$

In Stock, only 1 left!

0

0130-30

JOINT, Universal

Note: (Included with Ref. No. 0150)

$

$

Not available

0130-40

PIN, 4 X 20, Spring

Note: (Included with Ref. No. 0150)

$

$

Not available

0160

Simplicity 709756

CHUTE ASSEMBLY, Quick

$128.99

$

In Stock, only 3 left!

0

0200

Simplicity 709922

KIT, CHUTE GEAR

Note: (Incl. Ref. Nos. 0010, 0030 & 0070)

$50.99

$

In Stock, only 1 left!

0

0010

GEAR, 65T, 8P, Driven, SS Chute Rotation

Note: (Included with Ref. No. 0200)

$

$

Not available

0030

RETAINER, Chute

Note: (Included with Ref. No. 0200)

$

$

Not available

0070

SCREW, Hex Washer Head, Thread Roll, 1/4-20 X 5/8

Note: (Included with Ref. No. 0200)

$

$

Not available

0210

Simplicity 772082

KIT, Chute Retainer

Note: (Incl. Ref. Nos. 0030 & 0070)

$5.99

$

Usually ships in 2-12 days

0

0030

RETAINER, Chute

Note: (Included with Ref. No. 0210)

$

$

Not available

0070

SCREW, Hex Washer Head, Thread Roll, 1/4-20 X 5/8

Note: (Included with Ref. No. 0210)

$

$

Not available

0220

Simplicity 707502

KIT, Chute Knob

Note: (Incl. Ref. Nos. 0130-90, 0130-100, 0130-110 & 0130-130)

$11.99

$

Usually ships in 2-12 days

0

0130-90

WASHER, 10x20x1, Flat

Note: (Included with Ref. No. 0220)

$

$

Not available

0130-100

KNOB, Chute Rotator

Note: (Included with Ref. No. 0220)

$

$

Not available

0130-110

KNOB, Cover

Note: (Included with Ref. No. 0220)

$

$

Not available

0130-130

RING, External Retaining, 10

Note: (Included with Ref. No. 0220)

$

$

Not available
