1022 EX (1696726-00) - Simplicity 22" Snow Thrower, 9.5hp Auger Group Parts Diagram

22" Snow Thrower, 9.5hp

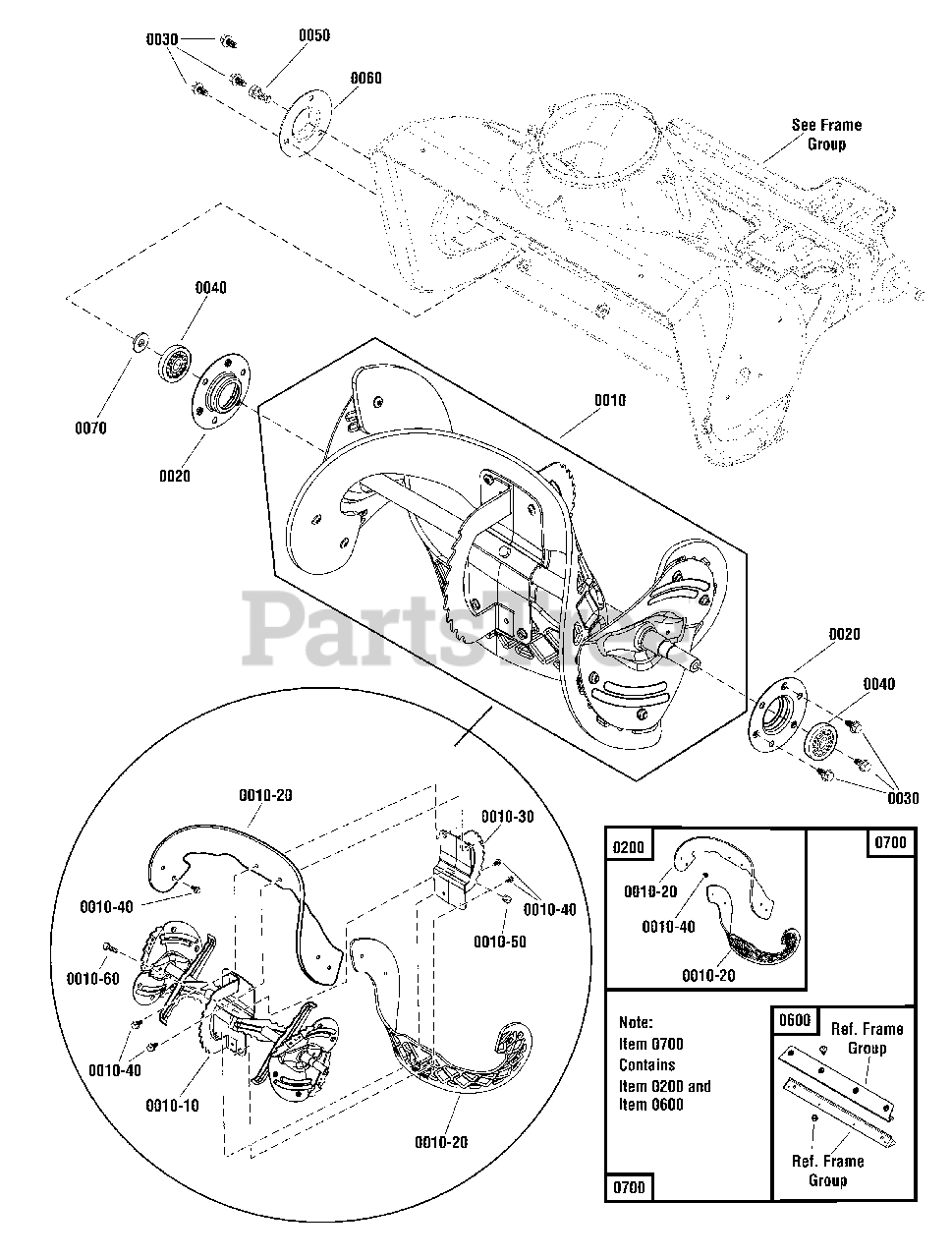

Auger Group Parts Diagram

  • Title

0010

Simplicity 1687814

*AUGER ASSEMBLY, Complete

Note: (Includes Ref. Nos. 0010-10 thru 0010-0060)

$170.99

$

In Stock, only 2 left!

0

0010-10

*AUGER SHAFT ASSEMBLY

$

$

Not available

0010-20

**FLIGHT, Auger

$

$

Not available

0010-30

*PLATE, Auger, Center

$

$

Not available

0010-40

Simplicity 7091246YP

SCREW, Pan Head Torx, 1/4-20 x 3/4
(Superseded to 770003)

$3.99

$

In Stock, only 4 left!

0

0010-50

Simplicity 7091603

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0010-60

Simplicity 51374

CAPSCREW, Hex Head, 1/4-20 X 1 1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

0020

Simplicity 1739228

RETAINER, Bearing
(Superseded to 1739228YP)

$6.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1750447

SCREW, Hex Washer Head, Trilob, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1705897

BEARING, Ball, 11/16 x 1-9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

0050

Simplicity 22142

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1739229A

CAP, BEARING
(Superseded to 1739229AYP)

$7.99

$

Usually ships in 2-12 days

0

0070

Simplicity 7900022

WASHER, Flat, 7/8 x 21/64
(Superseded to 7900022YP)

$3.49

$

In Stock, only 2 left!

0

0200

Simplicity 1687489

KIT, Auger Flight
(Superseded to 1687806)

Note: (Includes Ref. Nos. 0010-20 & 0010-40)

$121.99

$

In Stock, Qty 7

0

0600

Simplicity 1687805

KIT, Scaper Bar

$97.99

$

In Stock, only 1 left!

0

0700

Simplicity 1687806

KIT, Auger Flight & Scaper Bar

Note: (Includes Ref. Nos. 0200 & 0600)

$121.99

$

In Stock, Qty 7

0
