1022 EX (1697292-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2020) Engine Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

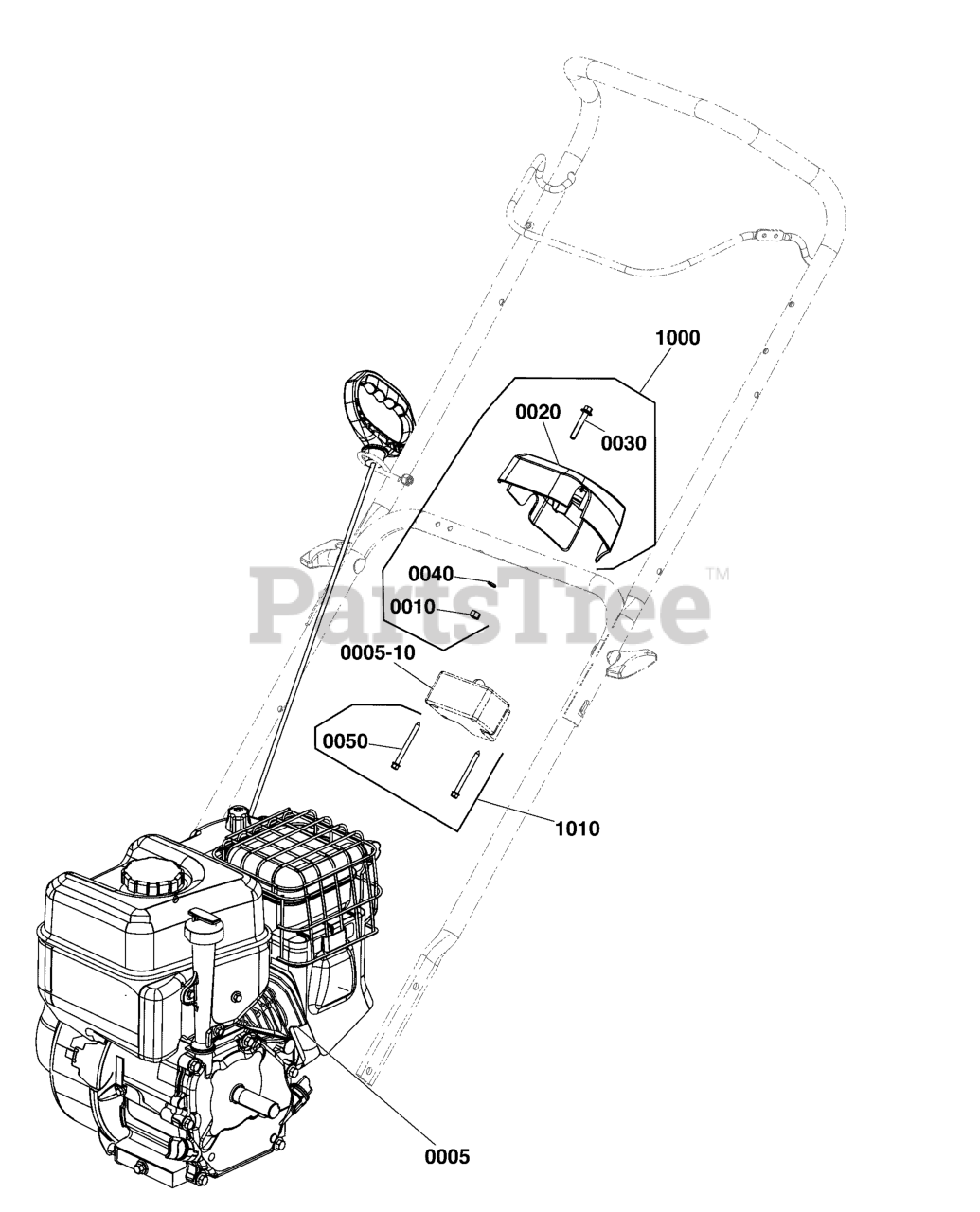

Engine Group Parts Diagram

  • Title

0005

Murray 13A137-0001-F1

*ENGINE, 9.5TP Briggs & Stratton

Note: (Engine Model: 13A137-0001-F1) (Refer to Note: *)

$

$

Currently unavailable

005-10

Murray 591702

**MOTOR, Starter

Note: (Refer to Note: **)

$277.99

$

Usually ships in 2-12 days

0

1000

Murray 709863

KIT, STARTER HOUSING

Note: (Incl. Ref. Nos. 0010 through 0030) (For electric start only.)

$20.99

$

Usually ships in 2-12 days

0

0010

NUT, M6, Lock

$

$

Not available

0020

Murray 1754873YP

HOUSING, Starter, 110V

$40.99

$

Usually ships in 2-12 days

0

0030

SCREW, M6x40, Hex Flange Head

$

$

Not available

0040

WASHER, 6x12x.7, Flat

$

$

Not available

1010

Murray 709864

KIT, HARDWARE, STARTER

Note: (Incl. Ref. No. 0050) (For electric start only.)

$5.49

$

Usually ships in 2-12 days

0

0050

Murray 703066

SCREW, 8-16 x 2, Pan Head Phillips, Plast.

$4.49

$

Usually ships in 2-12 days

0

--

Murray 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 3 left!

0
