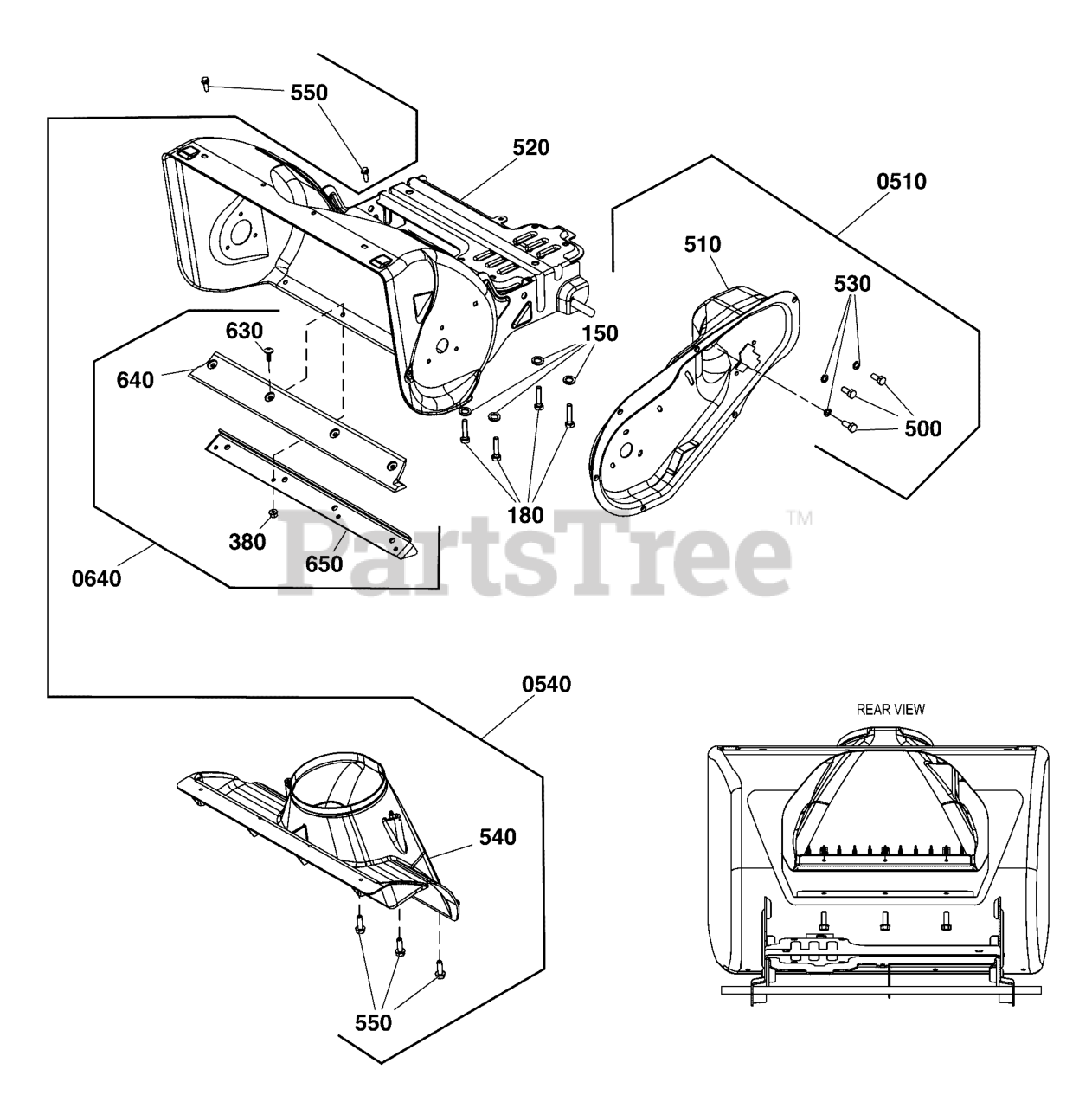

1022 EX (1697292-00) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2020) Frame Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

Frame Group Parts Diagram

  • Title

150

WASHER, M10, Split Lock

$

$

Not available

180

SCREW-HEX WSHR HD TAPTT 3/8-16X1.250, ZC

$

$

Not available

520

HOUSING, Auger

Note: ( Not a serviceable part )

$

$

Not available

0510

Murray 709866

KIT, DRIVE HOUSING

Note: (Incl. Ref. Nos. 500, 510, 530

$69.99

$

Usually ships in 2-12 days

0

500

Murray 1752876YP

CAPSCREW, Hex Head, 5/16-24 x 5/8

$3.99

$

In Stock, only 2 left!

0

510

HOUSING, Drive

$

$

Not available

530

Murray 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0540

Murray 84004738

KIT, CHIMNEY

Note: (Incl. Ref. Nos. 540, 550)

$137.99

$

Usually ships in 2-12 days

0

540

CHIMNEY

$

$

Not available

550

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 18

0

0640

Murray 770004

KIT-SCRAPER BAR

Note: (Incl. Ref. Nos. 380, 630, 640, 650)

$86.99

$

Usually ships in 2-12 days

0

380

Murray 1752935YP

NUT, 1/4-20, Nylon Hex, CZ

$3.49

$

In Stock, Qty 9

0

630

Murray 5025299X5YP

SCREW, 1/4-20 X 5/8

$4.99

$

In Stock, only 1 left!

0

640

BAR, Scraper, Robolon

$

$

Not available

650

Murray 1752660AYP

SUPPORT, Scraper Blade

$28.99

$

In Stock, Qty 5

0
