1022 SS (1696560-02) - Briggs & Stratton 22" Snow Thrower, 9.5 Gross TP (2018) Auger Drive Group Parts Diagram

22" Snow Thrower, 9.5 Gross TP

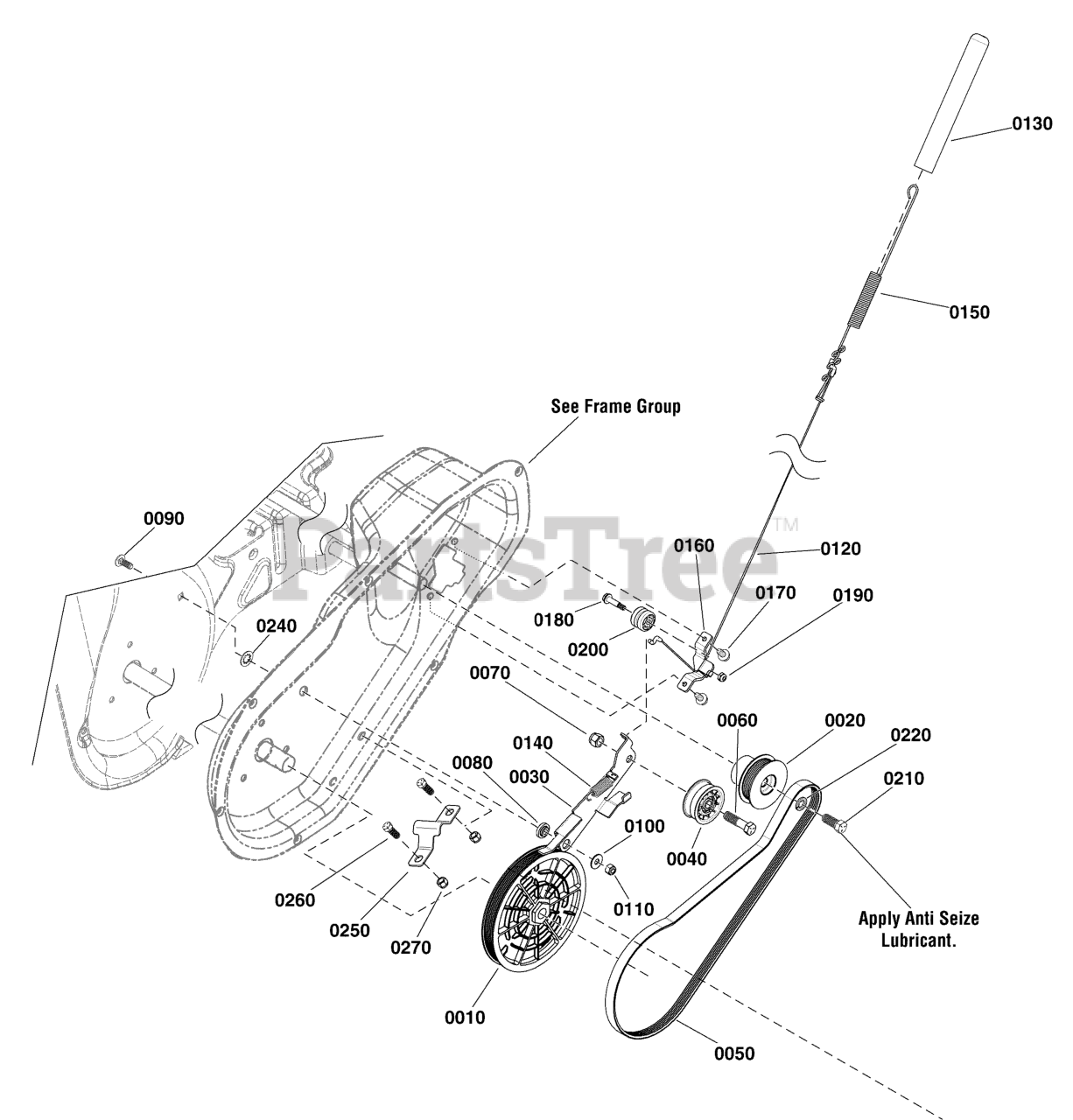

Auger Drive Group Parts Diagram

  • Title

0010

Murray 771019

PULLEY, Driven

$31.99

$

In Stock, only 1 left!

0

0020

Murray 1739179YP

PULLEY, Driver

$20.99

$

Usually ships in 2-12 days

0

0030

Murray 771018

ARM, Idler, Drive

$13.99

$

In Stock, only 1 left!

0

0040

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, only 1 left!

0

0050

Murray 1739338YP

BELT, Drive

$22.99

$

In Stock, Qty 7

0

0060

Murray 703406

CAPSCREW, Hex Head, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, Qty 6

0

0070

Murray 703117

NUT, Hex, Nylock, 3/8-16, GR5

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739709YP

SPACER, Idler Arm

$

$

Not available

0090

Murray 1931318SM

BOLT, Carriage, Short Neck, 1/4-20 x 7/8 G5

$4.49

$

In Stock, only 3 left!

0

0100

Murray 7091253YP

WASHER, Flat, .281 X 3/4 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0120

Murray 727331

CABLE, Front Drive
(Superseded to 1502113MA)

$22.99

$

In Stock, only 1 left!

0

0130

Murray 1739935YP

BOOT, Clutch Spring

$8.99

$

Usually ships in 2-12 days

0

0140

Murray 1750226YP

SPRING, Idler

$4.99

$

In Stock, only 1 left!

0

0150

Murray 1750315YP

SPRING, Extension

$10.99

$

In Stock, only 1 left!

0

0160

Murray 1750329YP

BRACKET, Cable Guide

$9.99

$

In Stock, only 1 left!

0

0170

Murray 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1750594YP

CAPSCREW, Hex Shoulder, 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0190

Murray 703937

NUT, Ny Lock, #10-32

$3.49

$

Usually ships in 2-12 days

0

0200

Murray 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 10

0

0210

Murray 001X20MA

CAPSCREW, Hex Head, 3/8-24 x 1

$4.49

$

In Stock, only 4 left!

0

0220

Murray 703454

LOCKWASHER, Spring, 3/8

$3.49

$

In Stock, Qty 11

0

0240

Murray 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0250

Murray 771016

GUIDE, Belt

Note: (Includes Ref .No. 0260 & 0270)

$9.49

$

Usually ships in 2-12 days

0

0260

Murray 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0270

Murray 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0
