1022EX (1697340-01) - Snapper 22" Snow Thrower, 9.5hp (2020) Engine Group Parts Diagram
22" Snow Thrower, 9.5hp

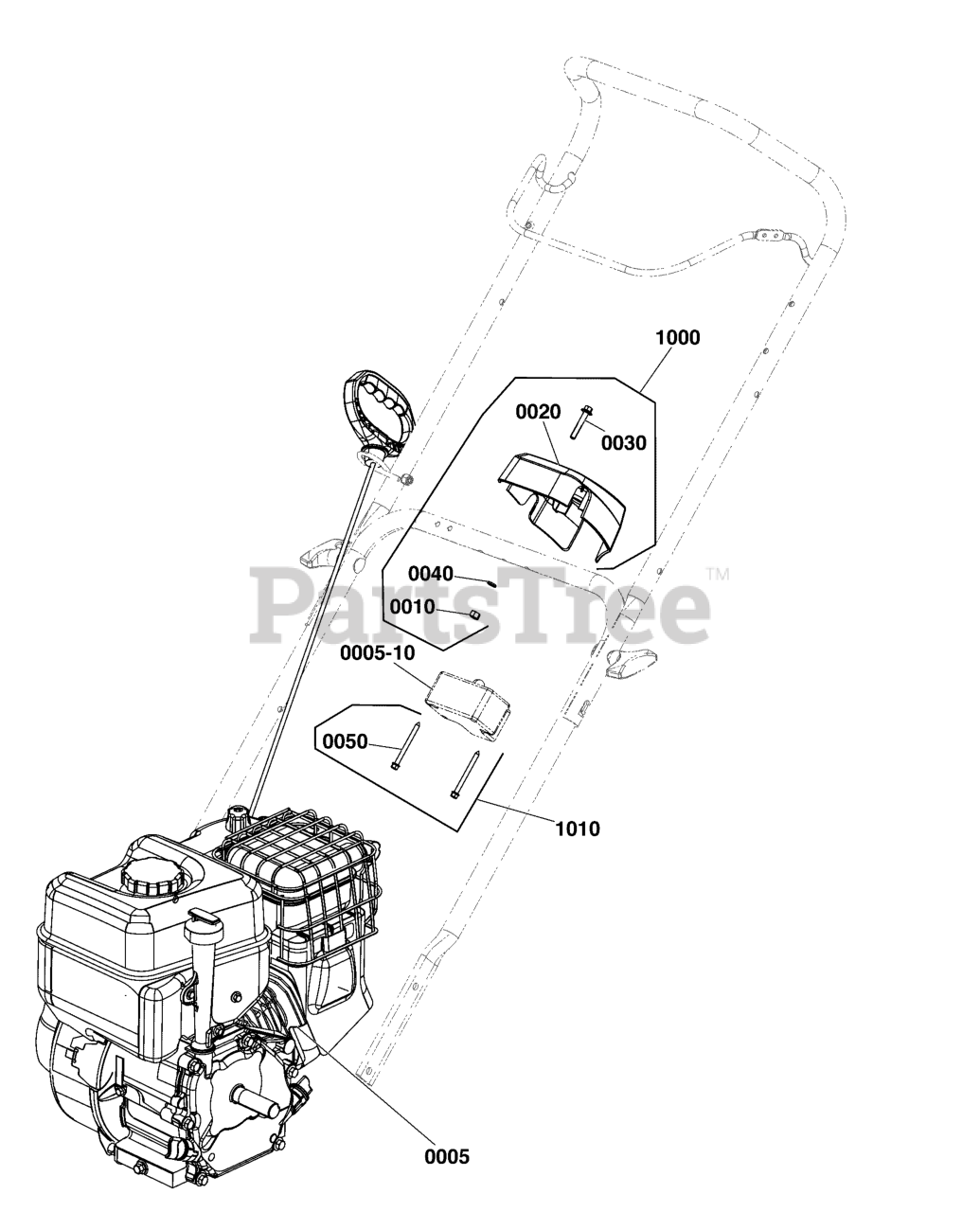

Engine Group Parts Diagram
Snapper 13A137-0001-F1
*ENGINE, 9.5TP Briggs & Stratton
Note: (Engine Model: 13A137-0001-F1) (Refer to Note: *)
$
$
Currently unavailable
$277.99
$
Usually ships in 2-12 days
Snapper 709863
KIT, STARTER HOUSING
Note: (Incl. Ref. Nos. 0010 through 0030) (For electric start only.)
$21.99
$
Usually ships in 2-12 days
0010
NUT, M6, Lock
$
$
Not available
Snapper 1754873YP
HOUSING, Starter, 110V
$43.99
$
Usually ships in 2-12 days
0030
SCREW, M6x40, Hex Flange Head
$
$
Not available
0040
WASHER, 6x12x.7, Flat
$
$
Not available
$5.99
$
Usually ships in 2-12 days
Snapper 703066
SCREW, 8-16 x 2, Pan Head Phillips, Plast.
$4.99
$
Usually ships in 2-12 days
$42.99
$
In Stock, only 1 left!
