10236 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) HOUSING ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

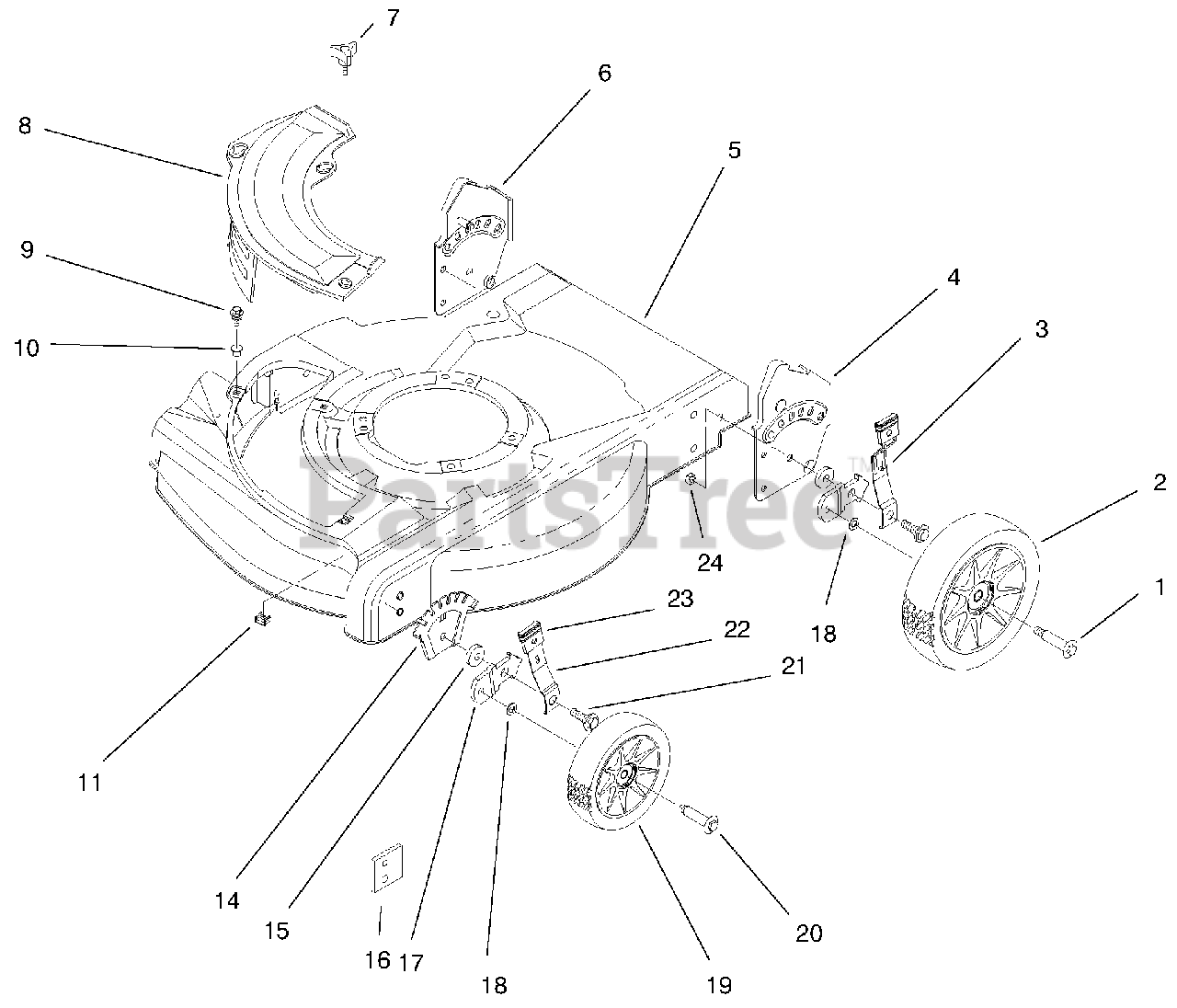

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614650

Bolt-Shoulder

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 684777

ASM-Wheel

$52.99

$

In Stock, Qty 8

0

3

Lawn-Boy 92-1005

ASM-Spring Arm

$21.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 92-7743

ASM-Handle Brkt

$

$

Not available

5

Lawn-Boy 16-5659

ASM-Housing & Baffle

$

$

Not available

6

Lawn-Boy 92-7742

ASM-Handle Brkt

$

$

Not available

7

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 13

0

8

Lawn-Boy 92-8630

Mulch Plate-21"

$

$

Not available

9

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 613765

Nut-Cage

$8.49

$

In Stock, Qty 11

0

14

Lawn-Boy 92-4881

Plate-Height Adjust
(Superseded to 92-4881-03)

$25.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer

$8.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 92-7731

Plate-Baffle

$8.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 614637

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

18

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 684776

ASM-Wheel & Tire 6"

$33.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-1099

Bolt-Shoulder 6" Wheel

$7.49

$

In Stock, Qty 10

0

21

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 9

0

22

Lawn-Boy 614687

Spring Arm-Front

$21.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0
