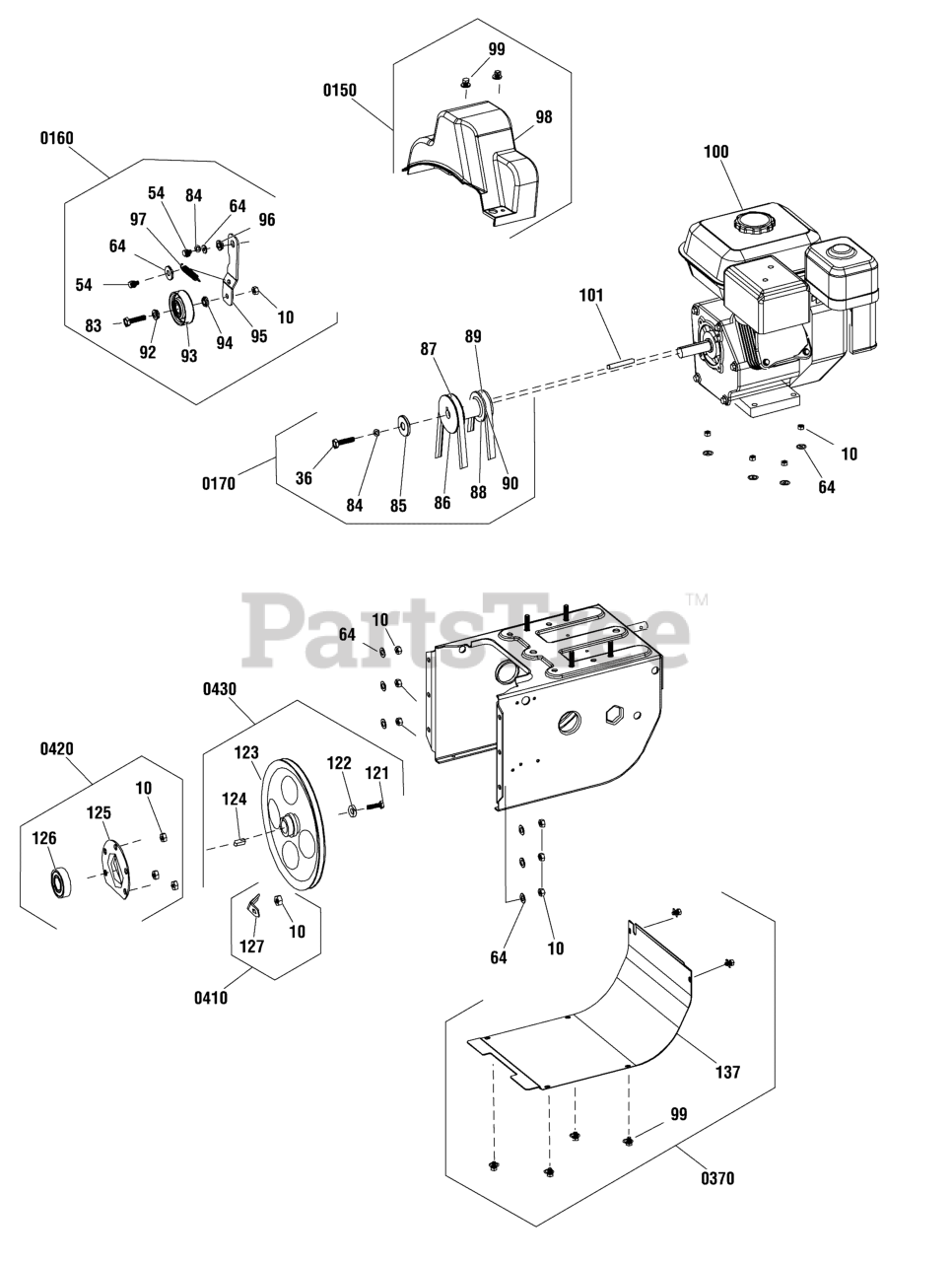

1024 (1696610-03) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2019) Engine & Frame Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

Engine & Frame Group Parts Diagram

  • Title

87

Briggs & Stratton 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

89

Briggs & Stratton 707585

BELT, Traction Drive

$22.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 13A137-0004-F1

**ENGINE, 9.5 Gross TP Briggs & Stratton

Note: (Engine Model: 13A137-0004-F1) (Refer to Note: *)

$

$

Currently unavailable

101

Briggs & Stratton 84004762

KEY, Flat, 5 X 4.7 X 50

$3.49

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 707810

KIT, BELT COVER

Note: (Incl. Ref. Nos. 98, 99)

$26.99

$

Usually ships in 2-12 days

0

98

COVER, Belt

$

$

Not available

99

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0160

Briggs & Stratton 707836

KIT, IDLER PULLEY, TRACTION DRIVE

Note: (Incl. Ref. Nos. 10, 54, 64, 83, 84, 92, 93, 94, 95, 96, 97)

$51.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

54

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

64

WASHER, 6x12x.7, Flat

$

$

Not available

83

SCREW, Hex Head, M8 X 30

$

$

Not available

84

WASHER, M10, Split Lock

$

$

Not available

92

SPACER, Idler Pulley

$

$

Not available

93

PULLEY, Idler

$

$

Not available

94

SPACER, Idler Pulley

$

$

Not available

95

BRACKET, Idler

$

$

Not available

96

SPACER, Idler Plate, Small

$

$

Not available

97

SPRING, Idler

$

$

Not available

0170

Briggs & Stratton 770117

KIT, ENGINE PULLEY

Note: (Incl. Ref. Nos. 36, 84, 85, 86, 88, 90)

$32.99

$

In Stock, only 2 left!

0

36

SCREW, Hex Head, M10 X 30

$

$

Not available

84

WASHER, M10, Split Lock

$

$

Not available

85

WASHER, Flat, 8 X 28 X 3

$

$

Not available

86

PULLEY, Auger

$

$

Not available

88

SPACER, Belt Wheel

$

$

Not available

90

PULLEY, Drive

$

$

Not available

0370

Briggs & Stratton 707542

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 99, 137)

$51.99

$

Usually ships in 2-12 days

0

99

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

137

COVER, Motor Box, Lower

$

$

Not available

0410

Briggs & Stratton 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 10, 127)

$11.99

$

Usually ships in 2-12 days

0

10

NUT, Lock, M8

$

$

Not available

127

GUIDE, Belt

$

$

Not available

0420

Briggs & Stratton 707548

KIT, BEARING HARDWARE, AUGER PULLEY

Note: (Incl. Ref. Nos. 10, 125, 126)

$24.99

$

In Stock, only 3 left!

0

10

NUT, Lock, M8

$

$

Not available

125

RETAINER, Ball Bearing

$

$

Not available

126

BEARING, Ball

$

$

Not available

0430

Briggs & Stratton 707823

KIT, AUGER PULLEY

Note: (Incl. Ref. Nos. 121, 122, 123, 124)

$40.99

$

In Stock, only 1 left!

0

121

SCREW, Hex Head, M8X20

$

$

Not available

122

WASHER, Flat, 8 X 28 X 2

$

$

Not available

123

PULLEY, Driven

$

$

Not available

124

KEY, Flat, 6 X 6 X 17

$

$

Not available

--

Briggs & Stratton 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 3 left!

0
