1024 LD (1696610-01) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2017) Engine & Frame Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

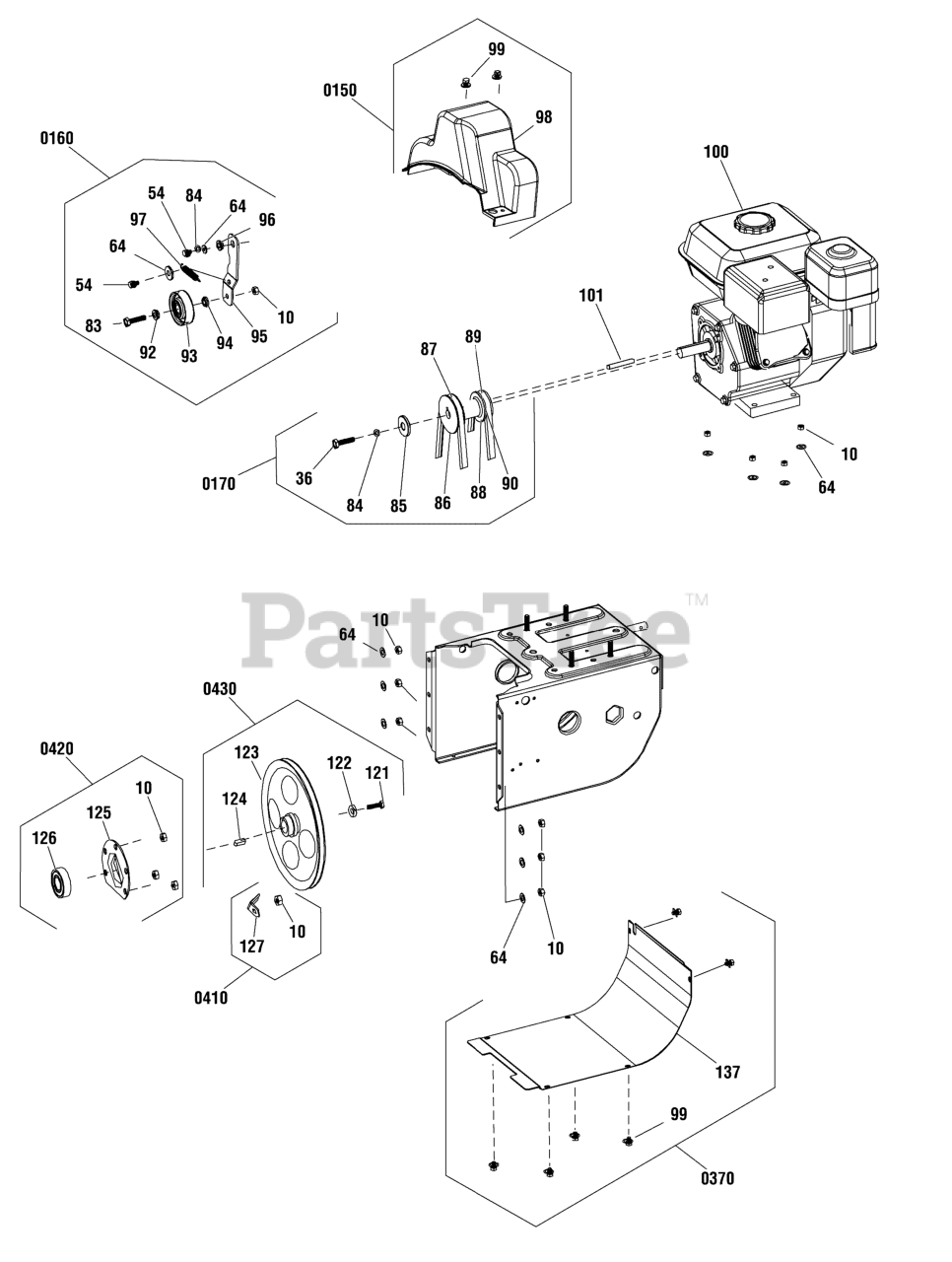

Engine & Frame Group Parts Diagram

  • Title

87

Murray 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 10

0

89

Murray 707585

BELT, Traction Drive

$22.99

$

In Stock, only 1 left!

0

100

Murray 13A137-0004-F1

**ENGINE, 9.5 Gross TP Briggs & Stratton

Note: (Engine Model: 13A137-0004-F1) (Refer to Note: *)

$

$

Currently unavailable

0150

Murray 707810

KIT, BELT COVER

Note: (Incl. Ref. Nos. 98, 99)

$26.99

$

Usually ships in 2-12 days

0

98

*COVER, Belt

$

$

Not available

99

*SCREW, Hex head

$

$

Not available

0160

Murray 707836

KIT, IDLER PULLEY, TRACTION DRIVE

Note: (Incl. Ref. Nos. 10, 54, 64, 83, 84, 92, 93, 94, 95, 96, 97)

$51.99

$

Usually ships in 2-12 days

0

10

*NUT, Lock, Hex Head, non-metal

$

$

Not available

54

*SCREW, Hex head

$

$

Not available

64

*WASHER, Flat

$

$

Not available

83

*SCREW, Hex head

$

$

Not available

84

*WASHER, Spring

$

$

Not available

92

*WASHER

$

$

Not available

93

*ASSEMBLY, Small Tensioning wheel

$

$

Not available

94

*PAD, small tensioning wheel

$

$

Not available

95

*PLATE, Small Tensioning

$

$

Not available

96

*PAD, small tensioning plate

$

$

Not available

97

*SPRING

$

$

Not available

0170

Murray 770117

KIT, ENGINE PULLEY

Note: (Incl. Ref. Nos. 36, 84, 85, 86, 88, 90)

$32.99

$

In Stock, only 2 left!

0

36

*SCREW, Hex head

$

$

Not available

84

*WASHER, Spring

$

$

Not available

85

*WASHER, Flat

$

$

Not available

86

*PULLEY, Impeller drive

$

$

Not available

88

*RING, Retainer, Synch-pulley

$

$

Not available

90

*SYNCH-PULLEY

$

$

Not available

0370

Murray 707542

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 99, 137)

$51.99

$

Usually ships in 2-12 days

0

99

*SCREW, Hex head

$

$

Not available

137

*COVER, Motor Box Lower

$

$

Not available

0410

Murray 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 10, 127)

$11.99

$

Usually ships in 2-12 days

0

10

*NUT, Lock, Hex Head, non-metal

$

$

Not available

127

*BELT, Backup Bar

$

$

Not available

0420

Murray 707548

KIT, BEARING HARDWARE, AUGER PULLEY

Note: (Incl. Ref. Nos. 10, 125, 126)

$24.99

$

In Stock, only 3 left!

0

10

*NUT, Lock, Hex Head, non-metal

$

$

Not available

125

*COVER, Round bottom

$

$

Not available

126

*BEARING, Ball

$

$

Not available

0430

Murray 707823

KIT, AUGER PULLEY

Note: (Incl. Ref. Nos. 121, 122, 123, 124)

$40.99

$

In Stock, only 1 left!

0

121

*SCREW, Hex head

$

$

Not available

122

*WASHER, Flat

$

$

Not available

123

*PULLEY, Driven

$

$

Not available

124

*KEY, Flat

$

$

Not available
