1024 MDS (1696807-00) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2018) Engine & Frame Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

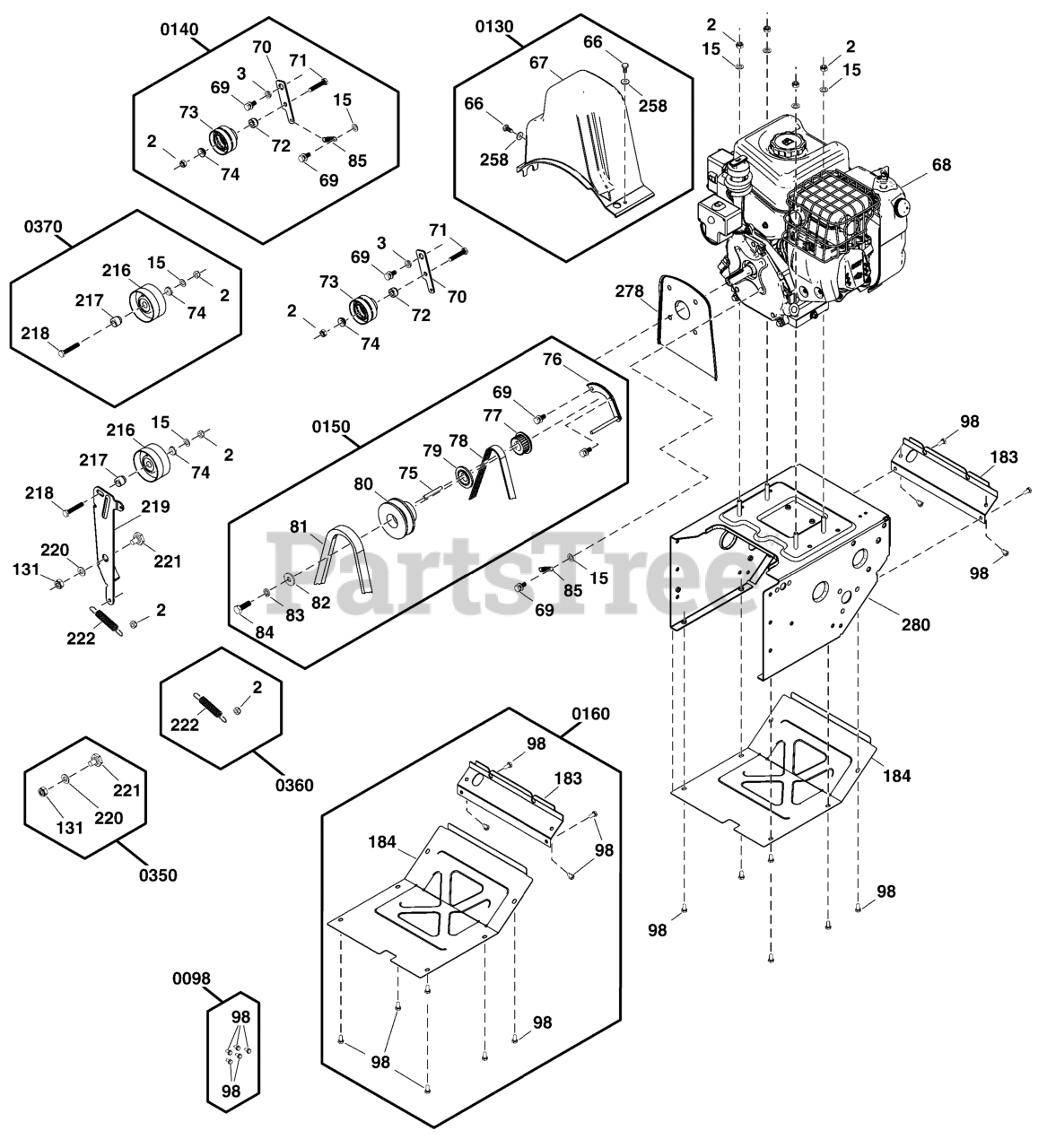

Engine & Frame Group Parts Diagram

  • Title

68

Murray 13A137-0019-F1

*ENGINE, Briggs & Stratton

Note: (Engine Model: 13A137-0019-F1) (Refer to Note: *)

$

$

Currently unavailable

219

Murray 770804

IDLER, Auger

$40.99

$

Usually ships in 2-12 days

0

278

Murray 1688080

KIT, WATER SHIELD, 208CC

$32.99

$

Usually ships in 2-12 days

0

280

MOTOR BOX ASSEMBLY, Charcoal

Note: (Refer to Note: **)

$

$

Not available

0098

Murray 771904

KIT, Hardware

Note: (Incl. Ref. No. 98)

$6.99

$

Usually ships in 2-12 days

0

98

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0130

Murray 770791

KIT, Belt Cover

Note: (Incl. Ref. Nos. 66, 67, 258)

$50.99

$

Usually ships in 2-12 days

0

66

SCREW, Hex Head, M6 X 12

$

$

Not available

67

COVER, Belt

$

$

Not available

258

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0140

Murray 770794

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 2, 3, 15, 69, 70, 71, 72, 73, 74, 85)

$51.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

3

SPACER, Idler Plate, Small

$

$

Not available

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

69

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

70

BRACKET, Idler

$

$

Not available

71

SCREW, Hex Head, M8 X 40

$

$

Not available

72

SPACER, Idler Pulley

$

$

Not available

73

PULLEY, Idler

$

$

Not available

74

SPACER, Idler Pulley

$

$

Not available

85

SPRING, Idler

$

$

Not available

0150

Murray 770817

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 69, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84)

$152.99

$

Usually ships in 2-12 days

0

69

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

75

Murray 84004762

KEY, Flat, 5 X 4.7 X 50

$3.49

$

Usually ships in 2-12 days

0

76

GUIDE, Belt

$

$

Not available

77

PULLEY, Drive

$

$

Not available

78

Murray 707585

BELT, Traction Drive

$22.99

$

In Stock, only 1 left!

0

79

SPACER, Belt Wheel

$

$

Not available

80

PULLEY, Auger

$

$

Not available

81

Murray 770796

BELT, Auger Drive

$80.99

$

Usually ships in 2-12 days

0

82

SPACER

$

$

Not available

83

WASHER, M10, Split Lock

$

$

Not available

84

SCREW, Hex Head, M10 X 30

$

$

Not available

0160

Murray 770819

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 98, 183, 184)

$70.99

$

Usually ships in 2-12 days

0

98

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

183

COVER, Back

$

$

Not available

184

COVER, Bottom

$

$

Not available

0350

Murray 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 131, 220, 221)

$8.99

$

Usually ships in 2-12 days

0

131

NUT, Lock, M10

$

$

Not available

220

WASHER, Flat, 10 X 20 X 2

$

$

Not available

221

SCREW, Hex Head, M10 X 13

$

$

Not available

0360

Murray 770806

SPRING, Idler Pulley

Note: (Incl. Ref. Nos. 2, 222)

$4.49

$

In Stock, only 1 left!

0

2

NUT, Lock, M8

$

$

Not available

222

SPRING, Idler

$

$

Not available

0370

Murray 770807

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 2, 15, 74, 216, 217, 218)

$37.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

74

SPACER, Idler Pulley

$

$

Not available

216

PULLEY, Idler

$

$

Not available

217

SPACER, Sleeve, Idler Pulley

$

$

Not available

218

SCREW, Hex Head, M8 X 45

$

$

Not available

--

Murray 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 3 left!

0
