1024 MDS (1696807-02) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2019) Controls Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

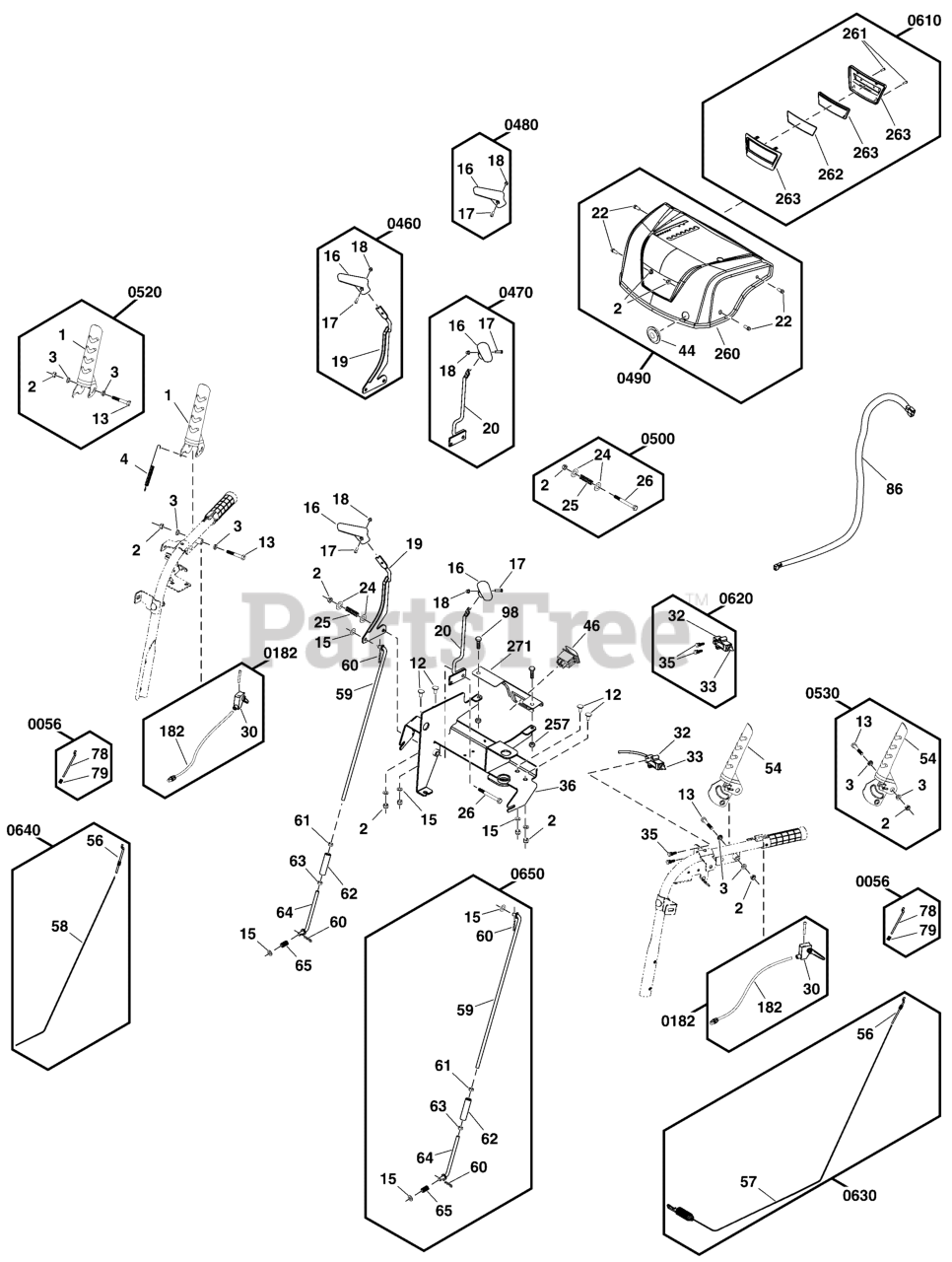

Controls Group Parts Diagram

  • Title

4

Briggs & Stratton 707877

SPRING, Handle

$13.99

$

Usually ships in 2-12 days

0

12

BOLT, Carriage, M8 X 16

$

$

Not available

36

PANEL, Dash

$

$

Not available

46

Briggs & Stratton 770770

SWITCH

$9.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 770788

HARNESS, Wiring

$21.99

$

Usually ships in 2-12 days

0

FUSE, GMA-3-R, 3A 250V

Note: (Refer to your local hardware store for replacement fuses.)

$

$

Not available

98

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

257

NUT, Lock, M6

$

$

Not available

278

BRACKET, Switch

$

$

Not available

0056

Briggs & Stratton 770785

KIT, Cable, Hardware

Note: (Incl. Ref. Nos. 78, 79)

$10.99

$

Usually ships in 2-12 days

0

78

ROD, Cable

$

$

Not available

79

NUT, Copper

$

$

Not available

0182

Briggs & Stratton 771703

CABLE, Steering

Note: (Incl. Ref. Nos. 30, 182)

$20.99

$

In Stock, Qty 6

0

30

LEVER, Steering Control Assembly

$

$

Not available

182

CABLE, Clutch

$

$

Not available

0460

Briggs & Stratton 770813

KIT, Lever, Speed

Note: (Incl. Ref. Nos. 16, 17, 18, 19)

$37.99

$

Usually ships in 2-12 days

0

16

KNOB, Slot Speed

$

$

Not available

17

SCREW, Phillips Head, M5

$

$

Not available

18

NUT, Acorn, M5

$

$

Not available

19

LEVER ASSEMBLY, Speed

$

$

Not available

0470

Briggs & Stratton 770830

KIT, Lever, Discharge Chute

Note: (Incl. Ref. Nos. 16, 17, 18, 20)

$25.99

$

Usually ships in 2-12 days

0

16

KNOB, Slot Speed

$

$

Not available

17

SCREW, Phillips Head, M5

$

$

Not available

18

NUT, Acorn, M5

$

$

Not available

20

LEVER ASSEMBLY, Deflector

$

$

Not available

0480

Briggs & Stratton 770834

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 16, 17, 18)

$15.99

$

Usually ships in 2-12 days

0

16

KNOB, Slot Speed

$

$

Not available

17

SCREW, Phillips Head, M5

$

$

Not available

18

NUT, Acorn, M5

$

$

Not available

0490

Briggs & Stratton 770811

ASSEMBLY, Dash

Note: (Incl. Ref. Nos. 2, 22, 44, 260)

$112.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

22

SCREW, Hex Flange Head, M8 X 16

$

$

Not available

44

BUSHING, Rotation Rod, Dash

$

$

Not available

260

PANEL, Charcoal

$

$

Not available

0500

Briggs & Stratton 707507

KIT, Hardware, Speed & Discharge

Note: (Incl. Ref. Nos. 2, 24, 25, 26)

$9.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

24

WASHER, 8x22x2, Flat

$

$

Not available

25

SPRING, Lever Assembly

$

$

Not available

26

SCREW, Hex Head, M8 X 70

$

$

Not available

0520

Briggs & Stratton 770771

KIT, Right Hand Lever (Traction Drive)

Note: (Incl. Ref. Nos. 1, 2, 3, 13)

$31.99

$

Usually ships in 2-12 days

0

1

LEVER, Clutch, Right

$

$

Not available

2

NUT, Lock, M8

$

$

Not available

3

SPACER, Idler Plate, Small

$

$

Not available

13

SCREW, Hex Head, M8 X 60

$

$

Not available

0530

Briggs & Stratton 770772

KIT, Left Hand Lever (Auger Drive)

Note: (Incl. Ref. Nos. 2, 3, 13, 54)

$31.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

3

SPACER, Idler Plate, Small

$

$

Not available

13

SCREW, Hex Head, M8 X 60

$

$

Not available

54

LEVER, Clutch, Left

$

$

Not available

0610

Briggs & Stratton 770839

KIT, Headlight

Note: (Incl. Ref. Nos. 261, 262, 263)

$48.99

$

Usually ships in 2-12 days

0

261

SCREW, Phillips Head, Self Tapping, ST2.9 X 14

$

$

Not available

262

O-RING

$

$

Not available

263

LIGHT ASSEMBLY

$

$

Not available

0620

Briggs & Stratton 707521

KIT, Free Hand Control Assembly

Note: (Incl. Ref. Nos. 32, 33, 35)

$32.99

$

Usually ships in 2-12 days

0

32

BODY, Free Hand Control

$

$

Not available

33

CABLE, Free Hand Control

$

$

Not available

35

SCREW, Hex Head, W/ Lock Washer, M6 X 20

$

$

Not available

0630

Briggs & Stratton 770784

KIT, Cable, Auger Drive

Note: (Incl. Ref. Nos. 56, 57)

$55.99

$

Usually ships in 2-12 days

0

56

KIT, Cable Hardware

$

$

Not available

57

CABLE, Auger Drive

$

$

Not available

0640

Briggs & Stratton 770786

KIT, Cable, Traction Drive
(Superseded to 772307)

Note: (Incl. Ref. Nos. 56, 58)

$42.99

$

Usually ships in 2-12 days

0

56

KIT, Cable Hardware

$

$

Not available

58

CABLE, Traction Drive

$

$

Not available

0650

Briggs & Stratton 770787

KIT, Traction Drive Rod

Note: (Incl. Ref. Nos. 15, 59, 60, 61, 62, 63, 64, 65)

$42.99

$

Usually ships in 2-12 days

0

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

59

ROD, Speed Select, Upper

$

$

Not available

60

PIN, Hair, Cotter

$

$

Not available

61

NUT, Hex, M8

$

$

Not available

62

SLEEVE, Adjustment, M8

$

$

Not available

63

NUT, Hex, M8

$

$

Not available

64

ROD, Speed Select, Lower

$

$

Not available

65

SPRING, Speed Select

$

$

Not available
